Ercolina HB60 - Pipe Specifications; Tube Bending Radius Data

-28-
05/2021HB60

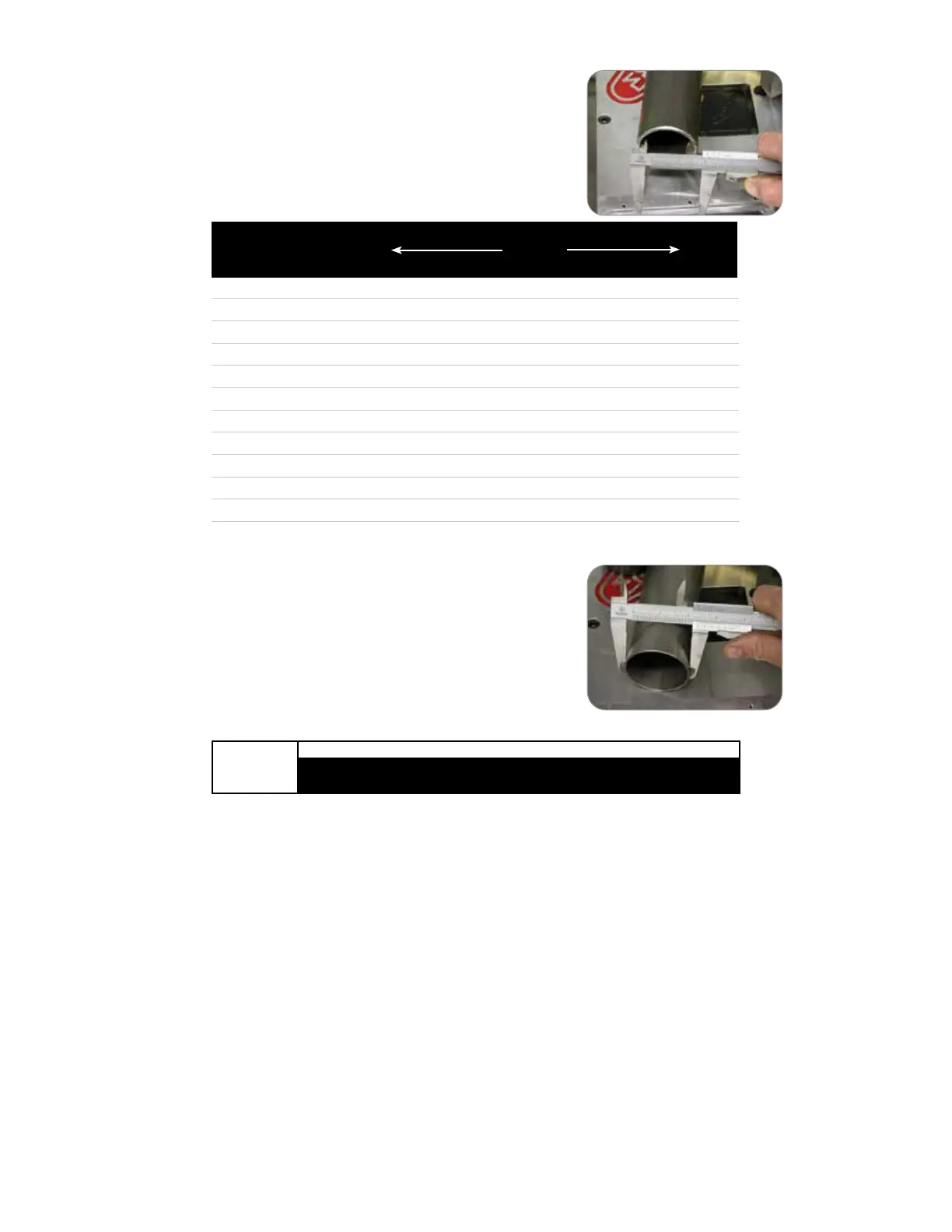

PIPE INFORMATION
ROUND TUBE INFORMATION
Nominal Schedule XX
Size O.D. 5 10 40 80 160 Strong
1/4″ .540 .065 .088 .119
3/8″ .675 .065 .091 .126
1/2″ .840 .065 .083 .109 .147 .188 .294
3/4″ 1.050 .065 .083 .113 .154 .219 .308
1″ 1.315 .065 .109 .133 .179 .250 .358
1-1/4″ 1.660 .065 .109 .140 .191 .250 .382
1-1/2″ 1.900 .065 .109 .145 .200 .281 .400
2″ 2.375 .065 .109 .154 .218 .343 .436
2-1/2″ 2.875 .083 .120 .203 .276 .375 .552
3″ 3.500 .083 .120 .216 .300 .438 .600
3-1/2″ 4.000 .083 .120 .226 .318 .636
4″ 4.500 .083 .120 .237 .337 .531 .674
Commercial Pipe and Wall Thickness
Wall Thickness
.035 .049 .065 .083 .095 .109 .120 .134
20 Ga. 18 Ga. 16 Ga. 14 Ga. 13 Ga. 12 Ga. 11 Ga. 10 Ga.
1/4″ 1.4 1.4 1.4 1.4 1.4 1.4 .78 .78
3/8″ 1.4 1.4 .78 .78 .78 .78 .78 .78
1/2″ 1.4 1.4 1 1 1 1 1 1
5/8″ 1.8 1.8 1.8 1.4 1.4 1.4 1.4 1.4
3/4″ 2.6 2.6 2.6 1.8 1.8 1.8 1.8 1.8
7/8″ 2.6 2.6 2.2 1.8 1.8 1.8 1.8 1.8
1″ 3.2 3.2 2.6 2.2 2.2 2.2 2.2 2.2
1-1/8″ 3.2 3.2 3.2 2.6 2.2 2.2 2.2 2.2
1-1/4″ 4.4 4.4 4.4 3.2 2.6 2.6 2.6 2.6
1-3/8″ 4.4 4.4 4.4 3.2 3.2 3.2 3.2 3.2
1-1/2″ 7.5 5.9 5.1 3.9 3.9 3.5 3.5 3.5
1-5/8″ 7.5 5.9 5.1 3.9 3.9 3.5 3.5 3.5
1-3/4″ 6.7 6.7 5.1 3.9 3.9 3.9
1-7/8″ 7.5 5.9 5.1 3.9 3.9 3.9
2″ 7.5 7.5 5.9 4.7 4.7 4.7
2-1/8″ 7.5 7.5 5.9 5.1 5.1 4.7
2-1/4″ 7.5 5.9 5.1 5.1 5.1
2-3/8″ 7.5 5.9 5.1 5.1 5.1
2-1/2″ 11.8 10.2 9.8
3″ 11.8 10.2 9.8
Minimum Achievable “Centerline Radius” with Standard Tooling
Tube
Size
Tube dimensions are based on O.D. of material
(2″ tube measures 2.00″ O.D.)
Pipe dimensions are based on I.D. of material
(2″ sch. 40 pipe measures 2.375″ O.D.)
