4.3. Tools description
Refer to manual for machine capacity
Tooling components: Shown in Figure 7, 8, 9:
● Bending Die
● Counterbending die
● Hexagonal shaft 40 and 50 MM are supplied to accommodate the machine capacity

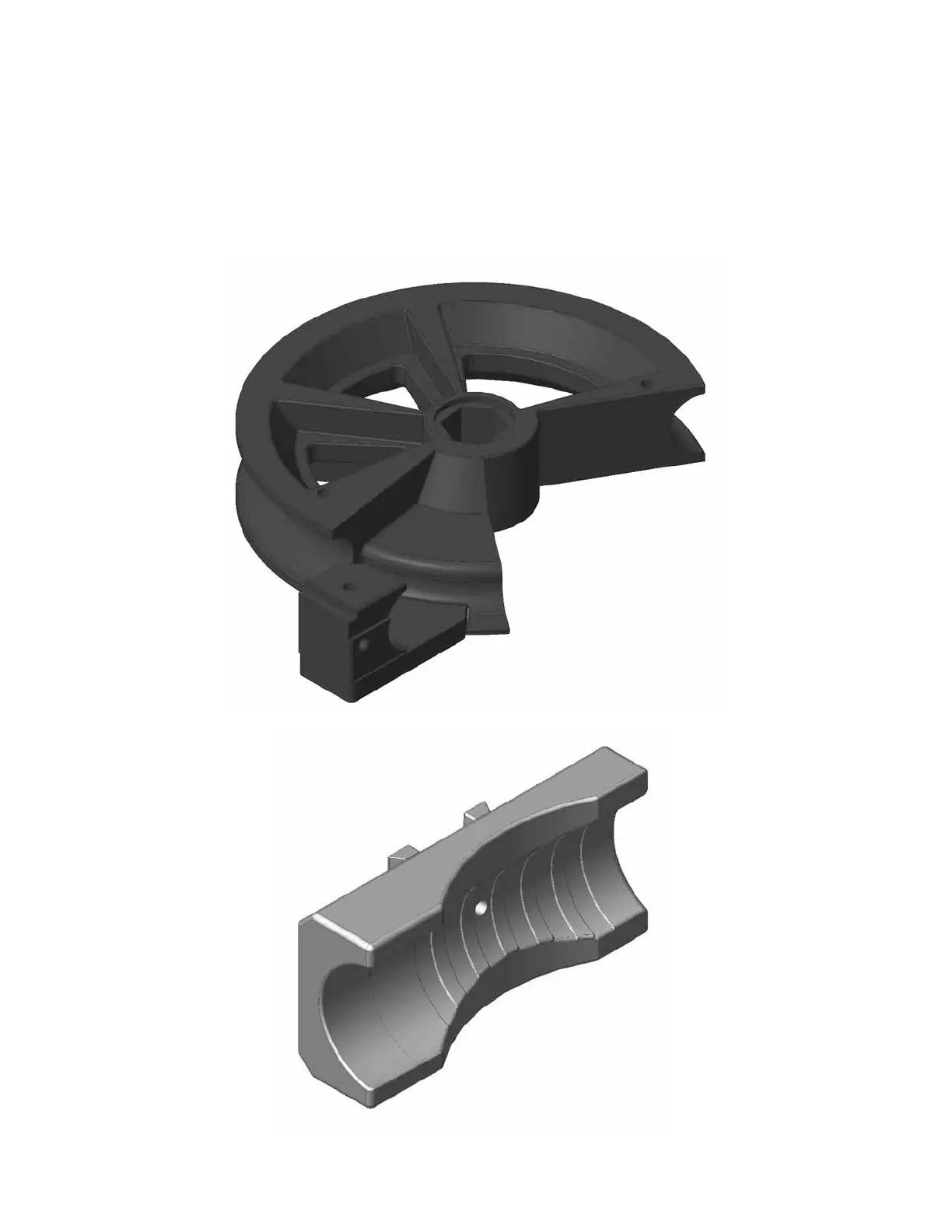

Figure 7 - Center Former Bending Die
Figure 8 - Counterbending Die
