-23-
05/2021 HB60
4.7. Replacing the tank cap
The machine is supplied with oil inside tank. This reservoir tank is located inside cabinet. Before first use
of the machine:
1. Open the front door of the cabinet (see Figure 12);
2. Remove one of the two caps closing the oil tank (leaving the other one in position;
3. Install the cap with the oil level indicator (see Figure 13).

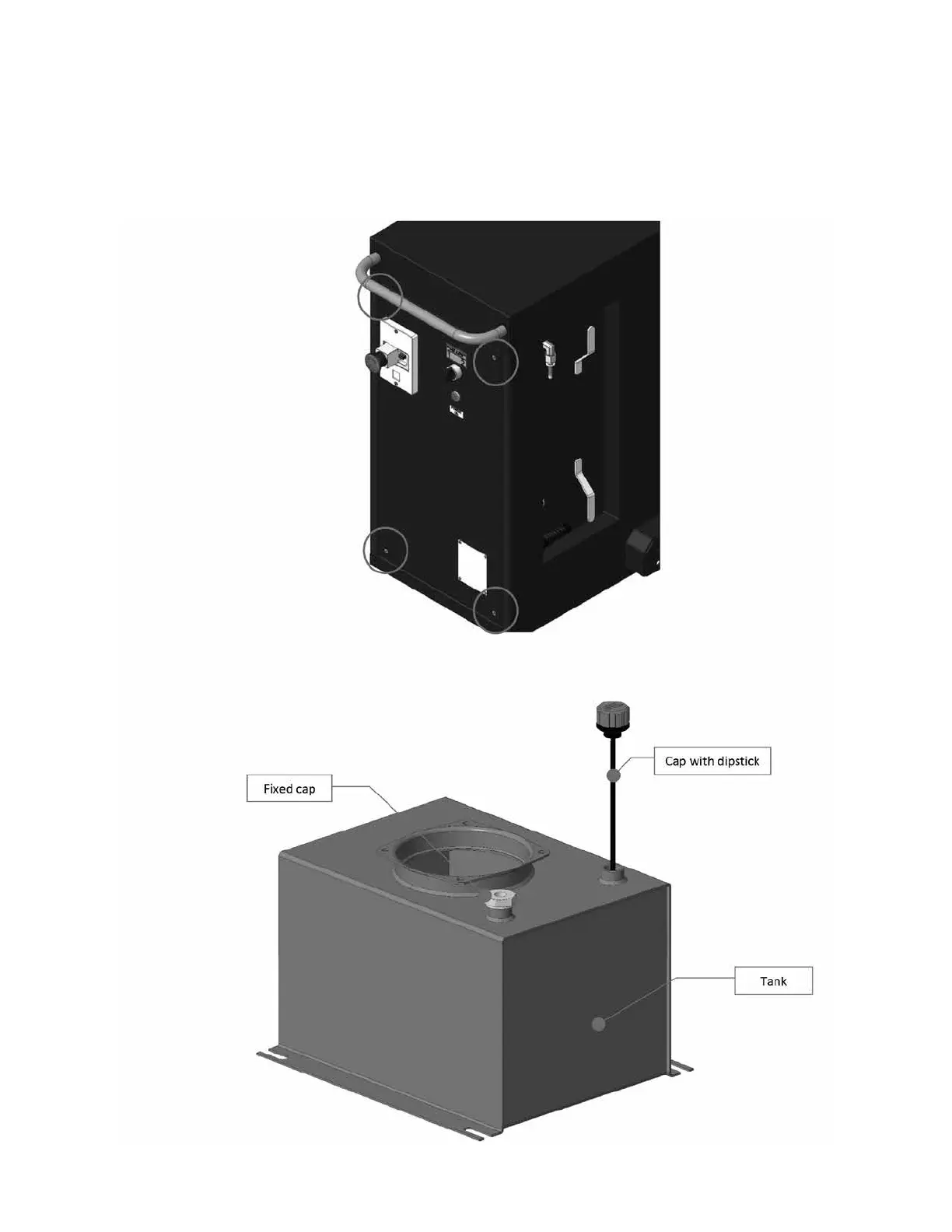

Figure 12 - Screw position for door opening
Figure 13 - Tank
