-29-
05/2021 HB60
Millimeters
Decimals
1/64 .0156
1/32 .0312
3/64 .0468
1/16 .0625
5/64 .0781
3/32 .0937
7/64 .1093
1/8 .1250
9/64 .1406
5/32 .1562
11/64 .1718
3/16 .1875
13/64 .2031
7/32 .2187
15/64 .2343
1/4 .2500
17/64 .2656
9/32 .2812
19/64 .2968
5/16 .3125
2 1/64 .3281
11/32 .3437
23/64 .3593
3/8 .3750
25/64 .3906
13/32 .4062
27/64 .4218
7/16 .4375
29/64 .4531
15/32 .4687
31/64 .4843
1/2 .5000
33/64 .5156
17/32 .5312
35/64 .5468
9/16 .5625
37/64 .5781
19/32 .5937
39/64 .6093
5/8 .6250
41/64 .6406
21/32 .6562
43/64 .6718
11/16 .6875
45/64 .7031
23/32 .7187
47/64 .7343
3/4 .7500
49/64 .7656
25/32 .7812
51/64 .7968
13/16 .8125
53/64 .8281
27/32 .8437
55/64 .8593
7/8 .8750
57/64 .8906
29/32 .9062
59/64 .9218
15/16 .9375
61/64 .9531
31/32 .9687
63/64 .9843
1 1.000
51 - 2.007
52 - 2.047
53 - 2.086
54 - 2.125
55 - 2.165
56 - 2.204
57 - 2.244
58 - 2.283
59 - 2.322
60 - 2.362
61 - 2.401
62 - 2.440
63 - 2.480
64 - 2.519
65 - 2.559
66 - 2.598
67 - 2.637
68 - 2.677
69 - 2.716
70 - 2.755
71 - 2.795
72 - 2.834
73 - 2.874
74 - 2.913
75 - 2.952
76 - 2.992
77 - 3.031
78 - 3.070
79 - 3.110
80 - 3.149
81 - 3.188
82 - 3.228
83 - 3.267
84 - 3.307
85 - 3.346
86 - 3.385
87 - 3.425
88 - 3.464
89 - 3.503
90 - 3.543
91 - 3.582
92 - 3.622
93 - 3.661
94 - 3.700
95 - 3.740
96 - 3.779
97 - 3.818
98 - 3.858
99 - 3.897
100 - 3.937
26 - 1.023
27 - 1.062
28 - 1.102
29 - 1.141
30 - 1.181
31 - 1.220
32 - 1.259
33 - 1.299
34 - 1.338
35 - 1.377
36 - 1.417
37 - 1.456
38 - 1.496
39 - 1.535
40 - 1.574
41 - 1.614
42 - 1.653
43 - 1.692
44 - 1.732
45 - 1.771
46 - 1.811
47 - 1.850
48 - 1.889
49 - 1.929
50 - 1.968
1 - .0393
2 - .0787
3 - .1181
4 - .1574
5 - .1968
6 - .2362
7 - .2755
8 - .3149
9 - .3543
10 - .3937
11 - .4330
12 - .4724
13 - .5118
14 - .5511
15 - .5905
16 - .6299
17 - .6692
18 - .7086
19 - .7480
20 - .7874
21 - .8267
22 - .8661
23 - .9055
24 - .9448
25 - .9842

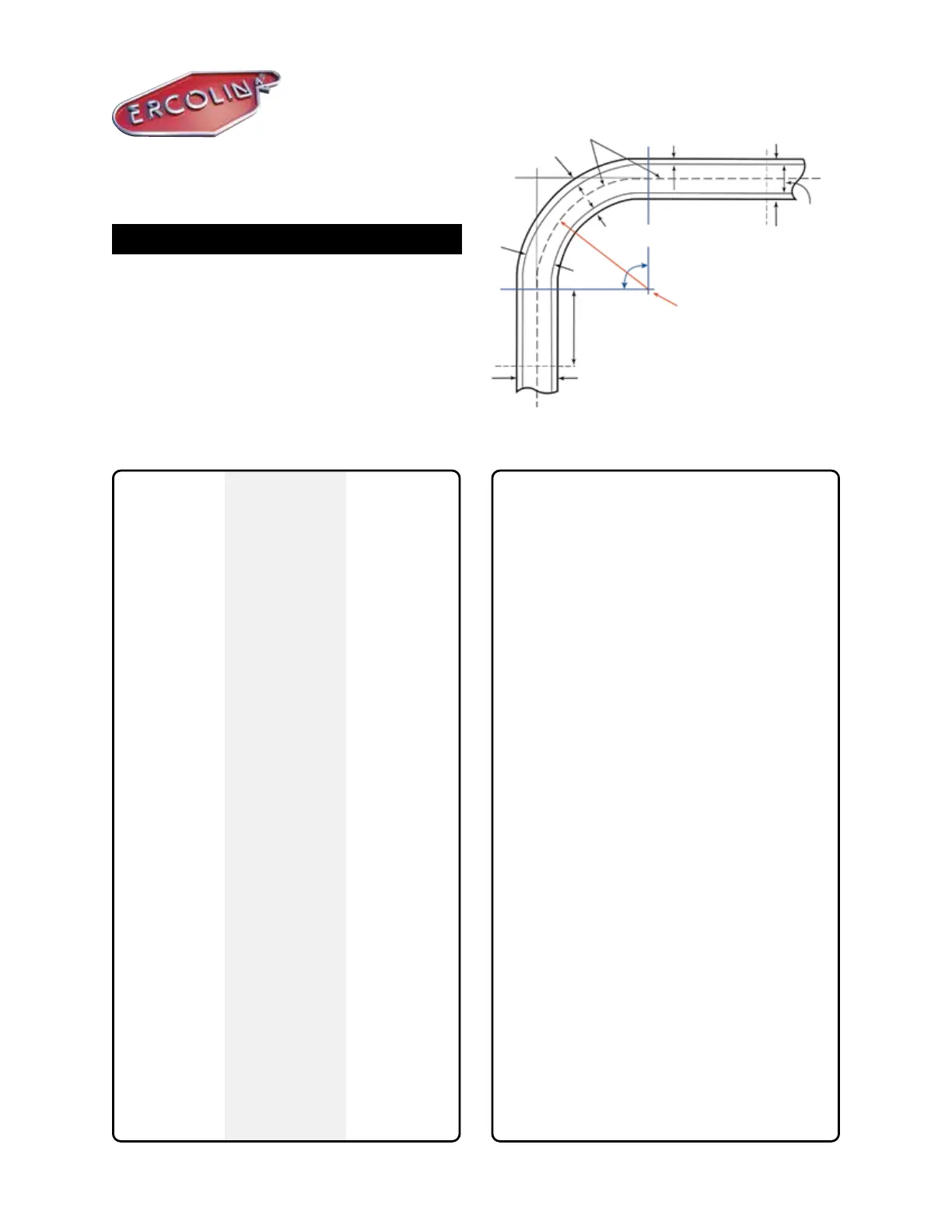

BEND FORMULA
To calculate total pipe length, add distance
from end of pipe to the first bend, plus first
bend arc length, plus distance to second
bend.
Material Consumption for Bend Angle
Radius x Degree of Bend x .0175 = Length
Centerline
Radius (CLR)
Required Tangent
Excess Material
Inner Wall
Outer Wall
90°
Degree
of Bend
Inside Wall
Thickness
Inside
Diameter (ID)
Centerline of Pipe
Center to Face
Distance
Outside
Diameter (OD)
Nominal Wall
Thickness
Tangent Line
(Rear)
Neutral Axis
Outside Wall
Thickness
