-19-
05/2021 HB60
Speed selector
Machines with single phase power supply are equipped with an inverter, there is also a speed selector
present. Selector rotation changes speed of the motor - speed 1 allows the machine to deliver maximum
bending torque; speed 2 increases machine productivity, however it does not supply maximum machine
torque.
Foot Pedal
Initiate bend or return function.
4.6. Tool assembly
Attention: before assembling the tools, make sure machine is not powered rotate main switch
to “0” position.
Attention: when assembling any tool (shaft, bending die, counterbending die) pay careful
attention to the risk of crushing ngers between the parts.

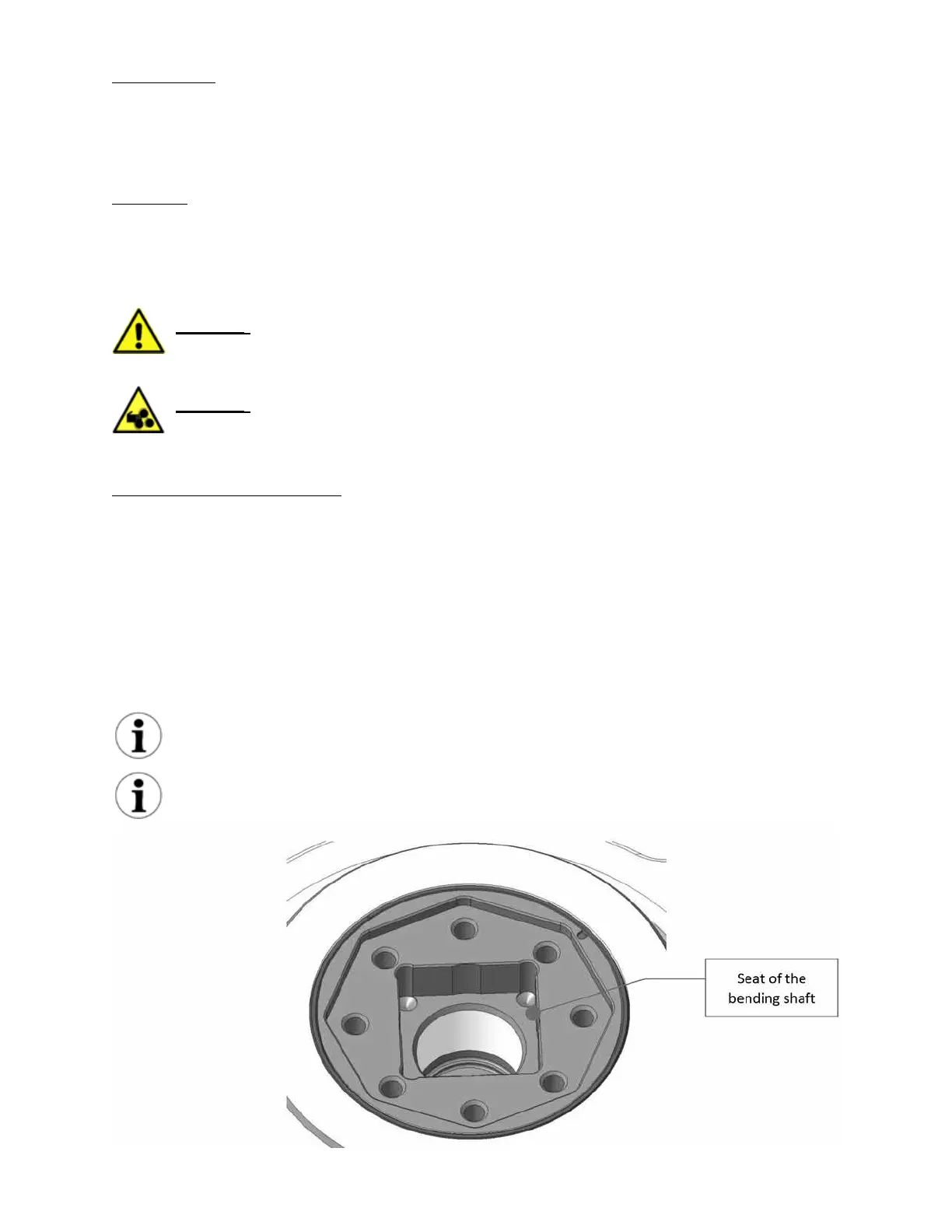

Assembling the bending die shaft
The machine is supplied with two hexagons drive shafts
● Shaft with hex key 40;
● Shaft with hex key 50.
The choice of the shaft depends on the type of bending die being used.
The assembly procedure is the same for both shafts:
● Insert shaft and the supplied screws.
shaft is designed in such a way there is only one position between parts.
“0” marks are found on both the bending die shaft and the machine. These must always be
aligned machine in the start or zero position.
