Cleaning and maintenance
10/2013 1014906-00 Operating instructions – 39/76
– Use the cushion to prevent scratches when opening the canopy panel.

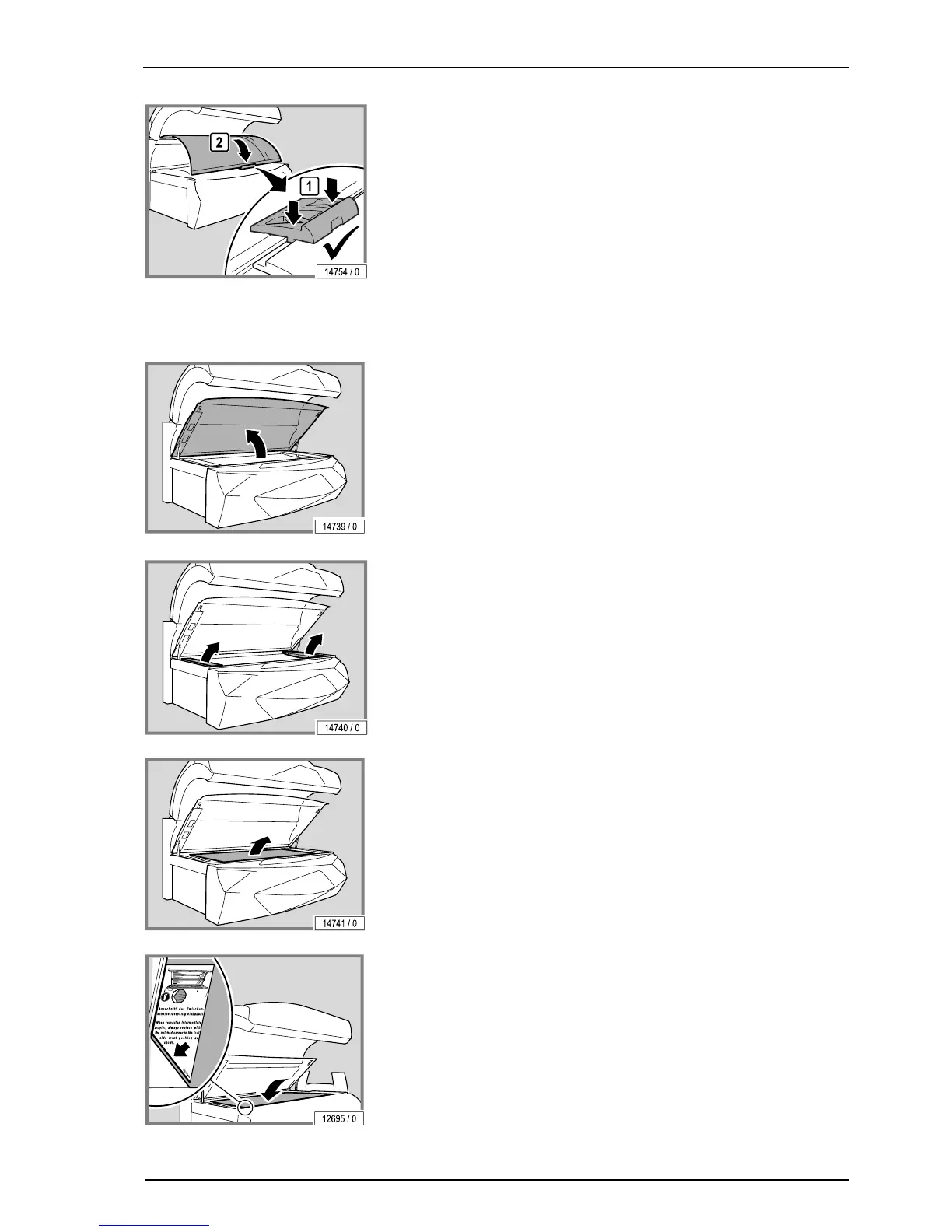

7.7.2 Lift up the acrylic panel and remove the
partition
– Lift up the acrylic panel.
The acrylic panel will be held in place automatically by the acrylic sup-
ports.
– Remove the lamp covers at the head and foot ends.
– Remove the partition.
The assembly is the same process in reverse order.
When assembling the device please note:
– You must ensure that the recesses are at the foot end when you fit the
partition.
– Remove fingerprints and other soiling carefully.
