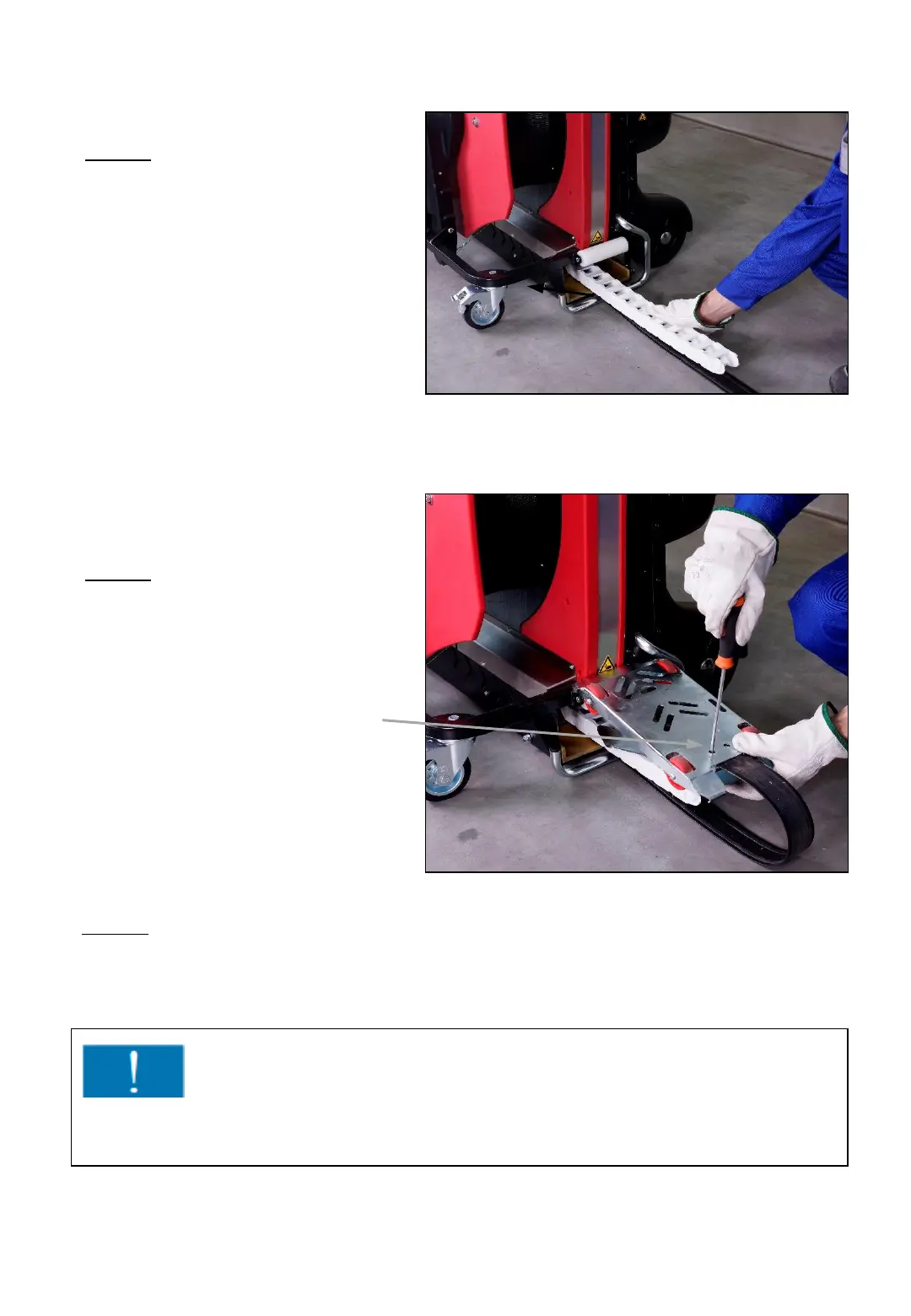

4. Step
Push the ChainLance manually
back into the strapping system
until the ChainLance has
completely moved out of the
reversing sledge.
5. Step
Place the reversing sledge on its
top as illustrated and use a
screwdriver to unscrew both
screws of the length adjusting
belt.
6. Step
The fitting of the reversing sledge is done in the reversed order of the
dismantling.
Fig. 105
Fig. 106
-68-
Attention!
Both screws of the length adjusting belt must be protected with medium-tight
screw retaining varnish!
