-84-
10.12 Replacing the cutter at the sealing head
Release 4 cylinder screws Torx (3),
remove strap guide rear (4) and
side cover (2).
Release cylinder screw Torx (5), take care
that you do not loose the compression
spring (7), remove knife (1) with
flanged bushing (6) and replace knife.
Installation is done in the reversed order of the disassembling.
Before installing the knife (1), check that the compression spring (7) on
top of the knife is still mounted.
Secure the pan head screw (5) with screw locking varnish "medium-tight“.

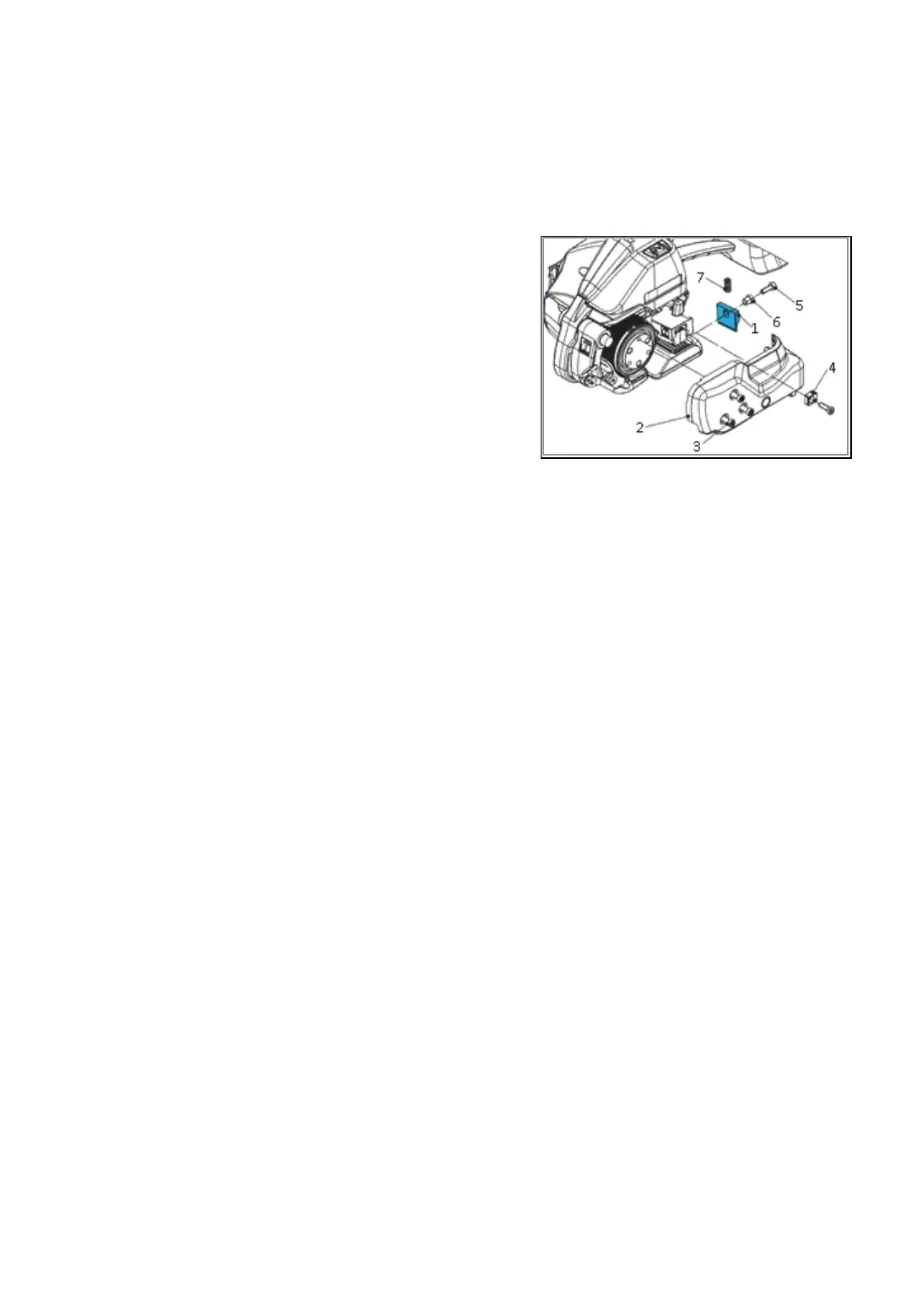

Fig. 144
