10.5 Replacing the length adjusting belt
1. Step (dismantling)
Perform steps 1 to 5 listed in point 10.3 and continue with step 2.
2. Step
Open the cover „battery
compartment“ as described
under point 7.2 „charging the
battery pack“.

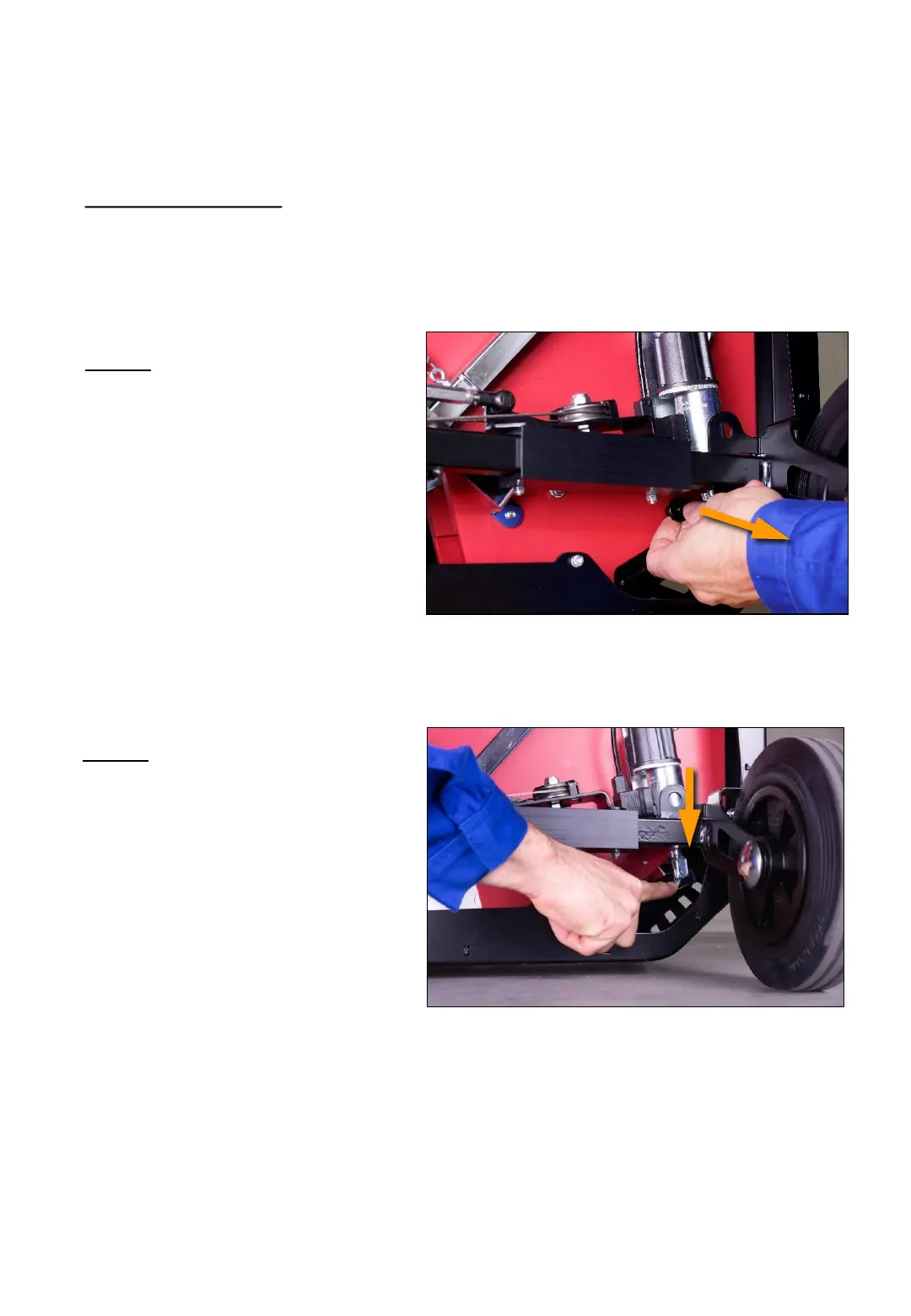

Now, unlock the ball lock pin by
pressing the release button and
pull it out of the storage plate.
Fig. 107
-70-
3. Step
A second person presses
downwards the „rocker“ of the
locking unit which is connected
with the magnet lock through the
folding spring bolt. At the same
time the other person pulls the
length adjusting belt out of the
strapping system.
Fig. 108
