-81-

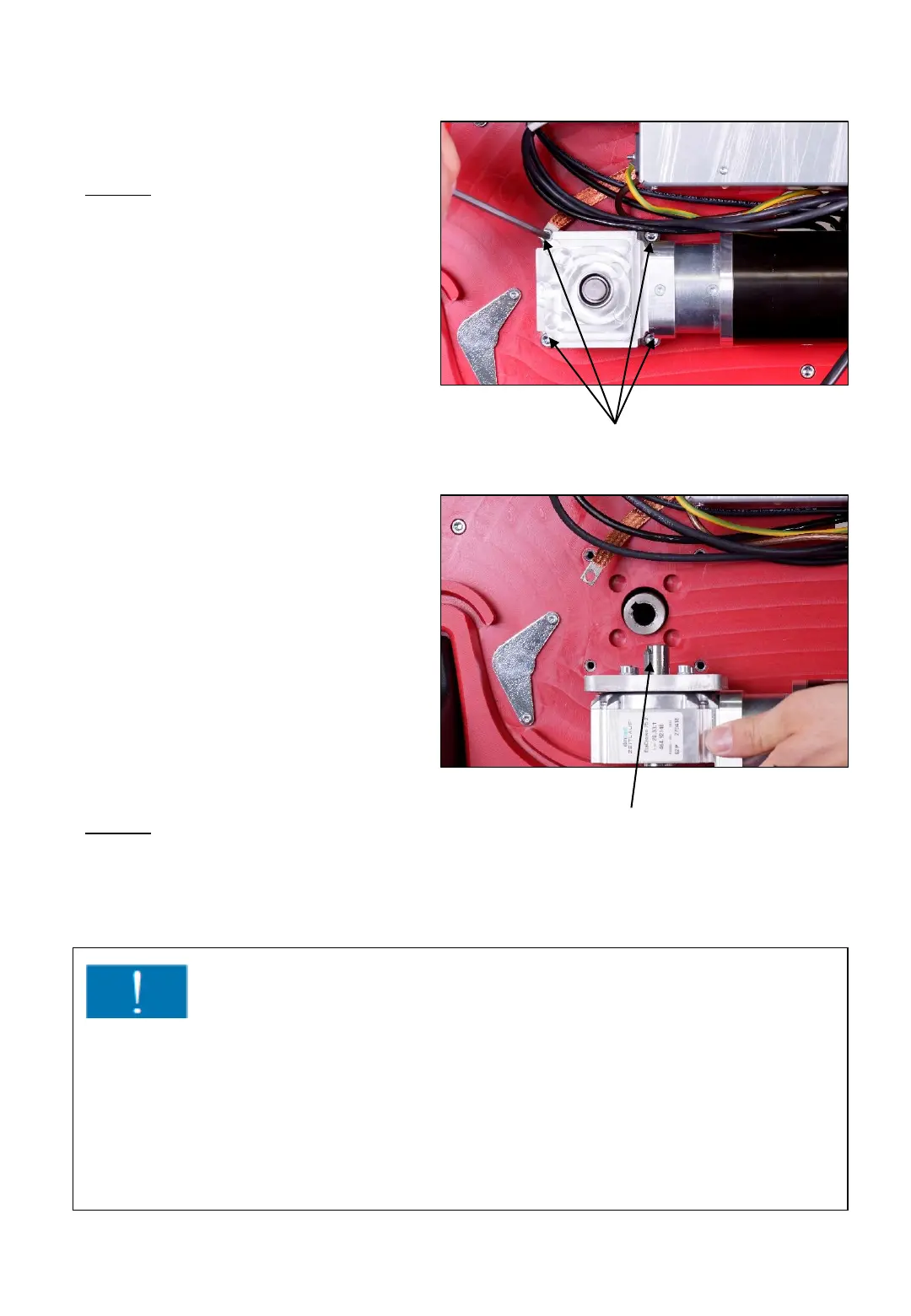

6. Step
Remove the 4 screws (139a) on
the motor support plate and …
7. Step
The installation of the motor is done in the reversed order of the
disassembling.
… remove now the motor
carefully.
Take care not to lose the feather
key (140a).
Fig. 139
139a
Fig. 140
140a
Attention!
The plug-in connection is positioned relative to one another through a plastic
nose and groove. When having the correct position, connect the plug and
secure it by the screw socket. This screw socket has to be closed by turning it
clockwise. Only then, the function of the plug-in connection is ensured.
The feather key at the motor output has to be positioned exactly to the
groove in the shaft.
