11. Error messages

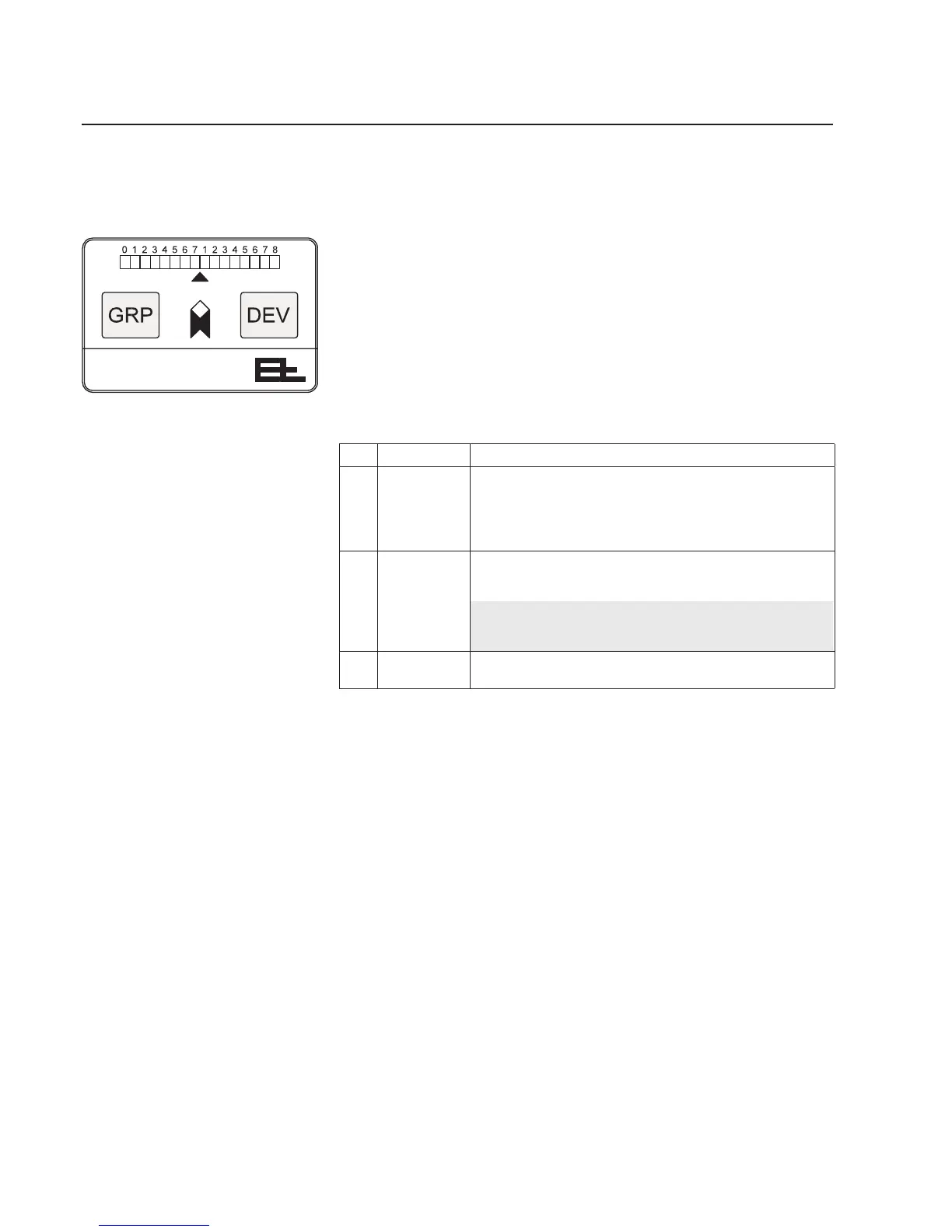

11.1 Error messages on the
LED display on the
camera controls
11.2 Error messages in
parameter 5
..5. errorcode  Errorcode:
Unitsindicateexposureerrors
..0=optimumexposure
..1=soiled
..2=under-exposed
..3=over-exposed
Tensindicatethecameraoperatingstatus
.1.=emergencyguiding
.2.=noresult
.3.=calibration ok
.4.=calibrationerror:noedge
.5.=calibrationerror:onlyoneedge
Hundredsindicatethecameracalibratingstatus
1..=notcalibrated
Theerrormessageswithagreybackgroundbelongtothecalibration
process.Theyonlyappearduringthecalibrationprocess.Seealso
"Cameracalibration"section.
Error message examples:
30 Standard calibration ok, optimum exposure:
Calibration was successful and can be terminated.
20 calibrated, no result, optimum exposure:
The position of the measured value cannot be established
despite optimum exposure => no contrasting edges available,
e.g. a printed line
122 not calibrated, no result, camera is under-exposed:
The camera was not calibrated or calibration was unsuccessful,
the camera cannot output a position, the camera is under-ex-
posed => calibrate camera
The two outer LEDs are ashing:
Nowebinthemeasuringrange.
The measuring result on the LED display is ashing:
Guidingcriterionisnotavailable,thecameradetectsthepositionof
theemergencyguidingcriterion.
Every second LED is ashing:
Cameraisunder-exposed.
Every second LED stays on permanently:
Cameraisover-exposed.
