T-SM47j P37/54
T20-a
OPERATION TABLE

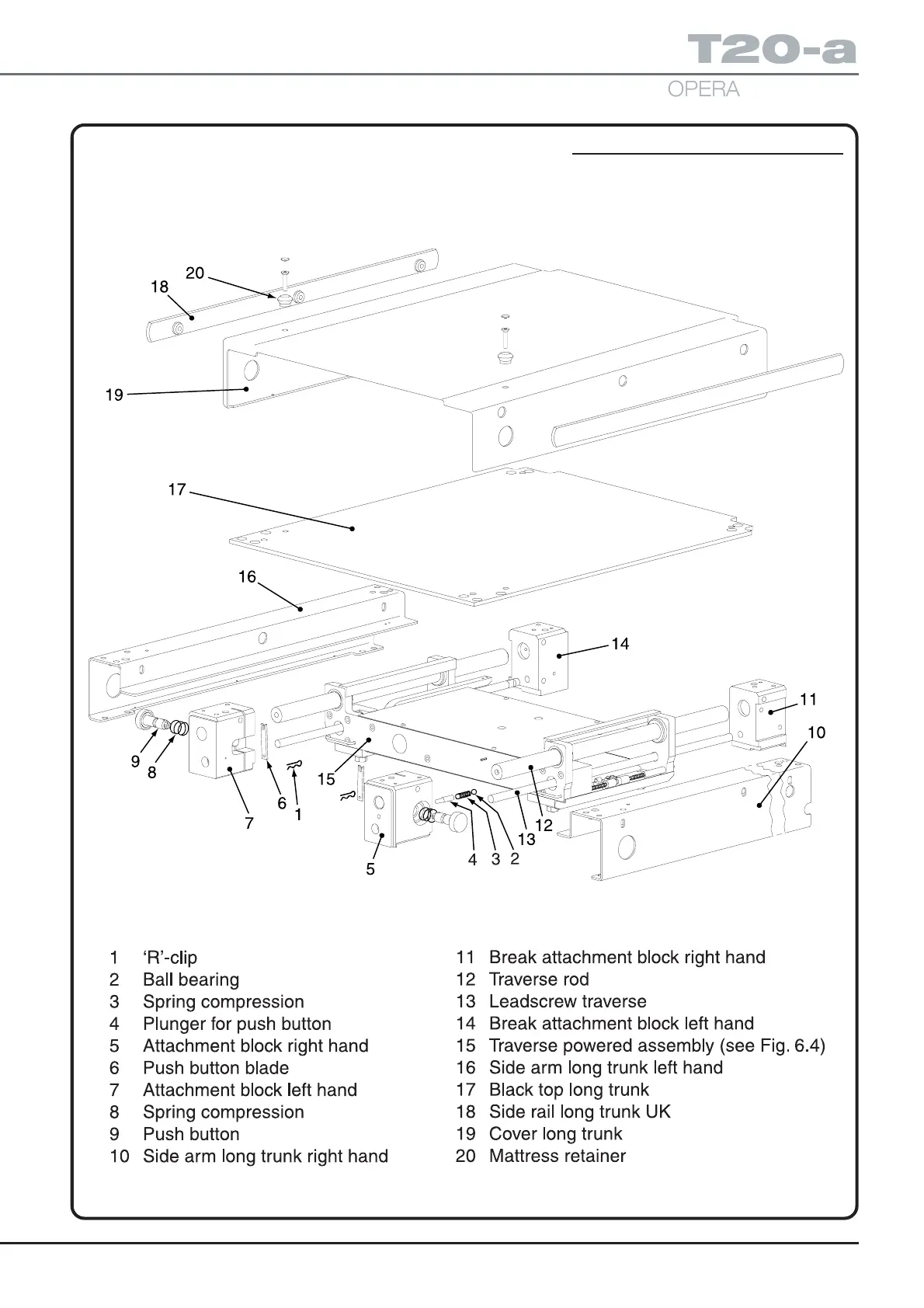

Fig. 6.5 Table long trunk general arrangement
Torque settings
Lead screws M10 set screw = 20Nm
Actuator arms M8 csk. screw = 14 Nm
Sidebar screw = 21Nm
Black top M6 csk. screw = 6 Nm
All M8 button head screws = 10Nm
All M3 Torx cover screws = 0.5Nm
