P38/54 T-SM47j

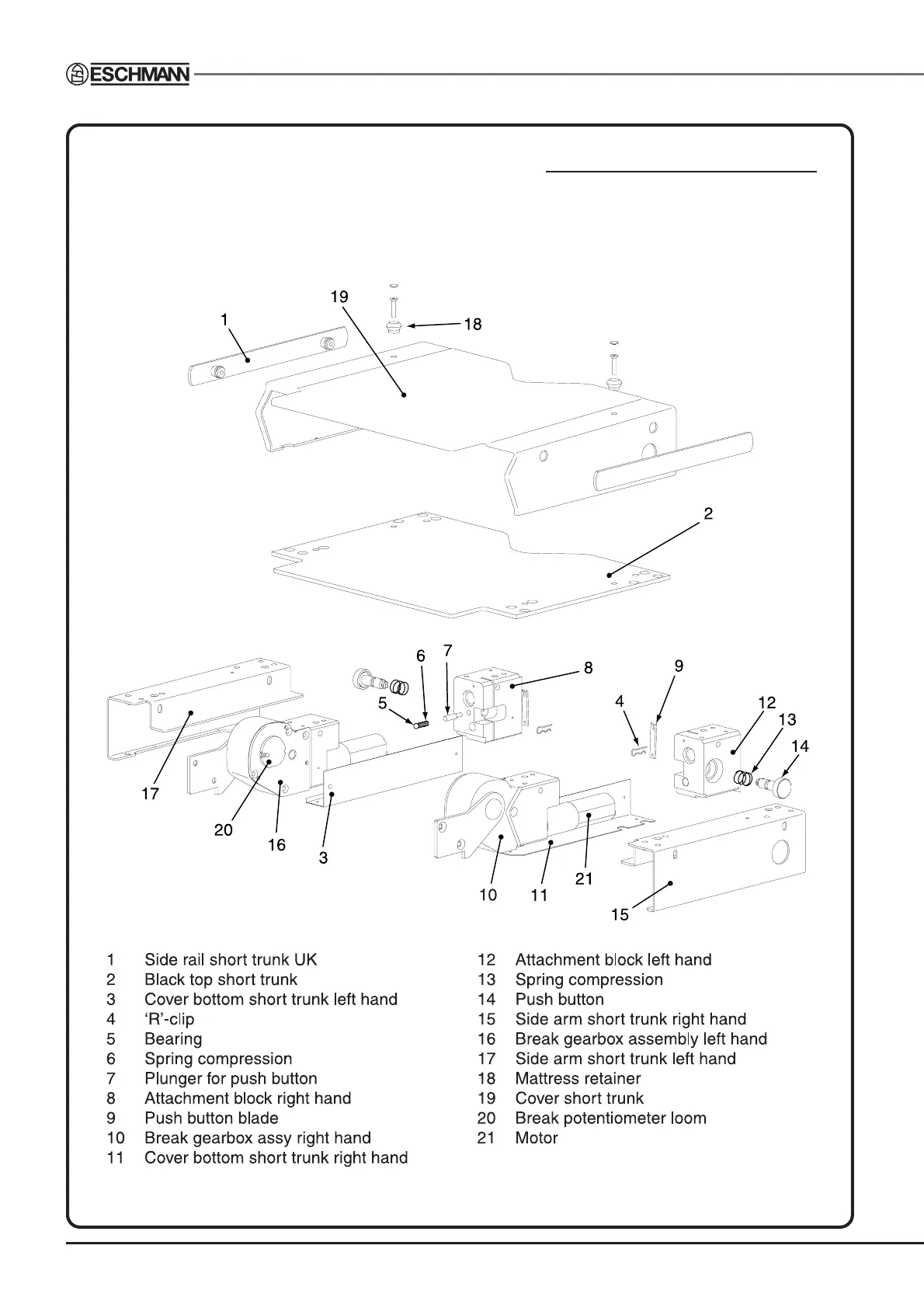

Fig. 6.6 Table short trunk general arrangement
Torque settings
Lead screws M10 set screw = 20Nm
Actuator arms M8 csk. screw = 14 Nm
Sidebar screw = 21Nm
Black top M6 csk. screw = 6 Nm
All M8 button head screws = 10Nm
All M3 Torx cover screws = 0.5Nm
Note: On later tables ensure that
the grommet strip is in place in
the cable and conduit slot of
items 3 and 11.
