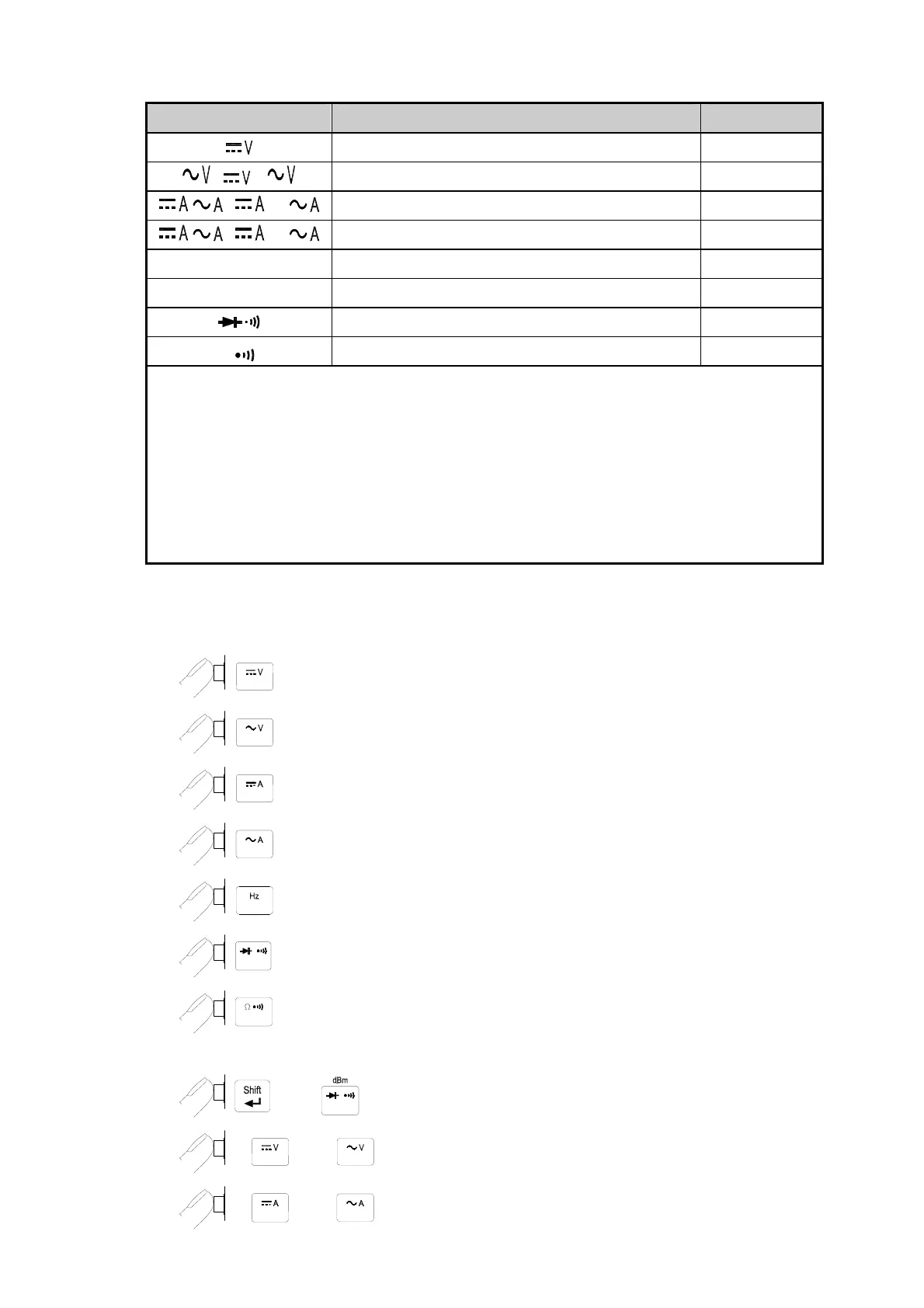

Table 3-3 Range Scale Value
Function Range Scale Auto Ranging
500mV, 5V, 50V, 500V, 1000V
(1)
•
, +
500mV, 5V, 50V, 500V, 750V
(2)
•
, , +
500µA, 5mA, 50mA, 500mA •
, , +
5A, 10A
(3)
•
Hz 500Hz, 5kHz, 50kHz, 500kHz
•
Ω
(4)
500, 5k, 50k, 500k, 5M, 50M Ω •
2.3V Fixed range
Ω .
500, 5k, 50k, 500k, 5M, 50M Ω (Continuity Mode) •
(1)
In Vdc 1000V range, 1200Vdc is readable with audio warning
(2)
In Vac 750V range, 1000Vdc is readable with audio warning
(3)
10A dc or ac rms continuous, and 20A dc or ac rms for 20 seconds maximum
(with audio warning)
(4)
In order to eliminate the noise interference, which might be induced to the test
leads, it is recommended to use a shielded test cable for measuring resistance
above 500KΩ.
More operations of selecting a measurement function are described below:
to select DC voltage measurement
to select AC voltage measurement
to select DC current measurement
to select AC current measurement
to select frequency measurement
to select Diode Continuity measurements
to select resistance or resistance Continuity measurements mode by
toggling
then to select dBm calculation
( and ) simultaneously to select DC+AC RMS volts calculation
( and ) simultaneously to select DC+AC RMS amps calculation
25
