Measuring AC and DC current on a rectification circuit.
To display AC current in primary display and DC current in secondary
display or vise versus while testing a rectifier circuit, user may check the
DC current component and its AC ripples by taking a single meter.
1.
to select AC current measurement for primary display

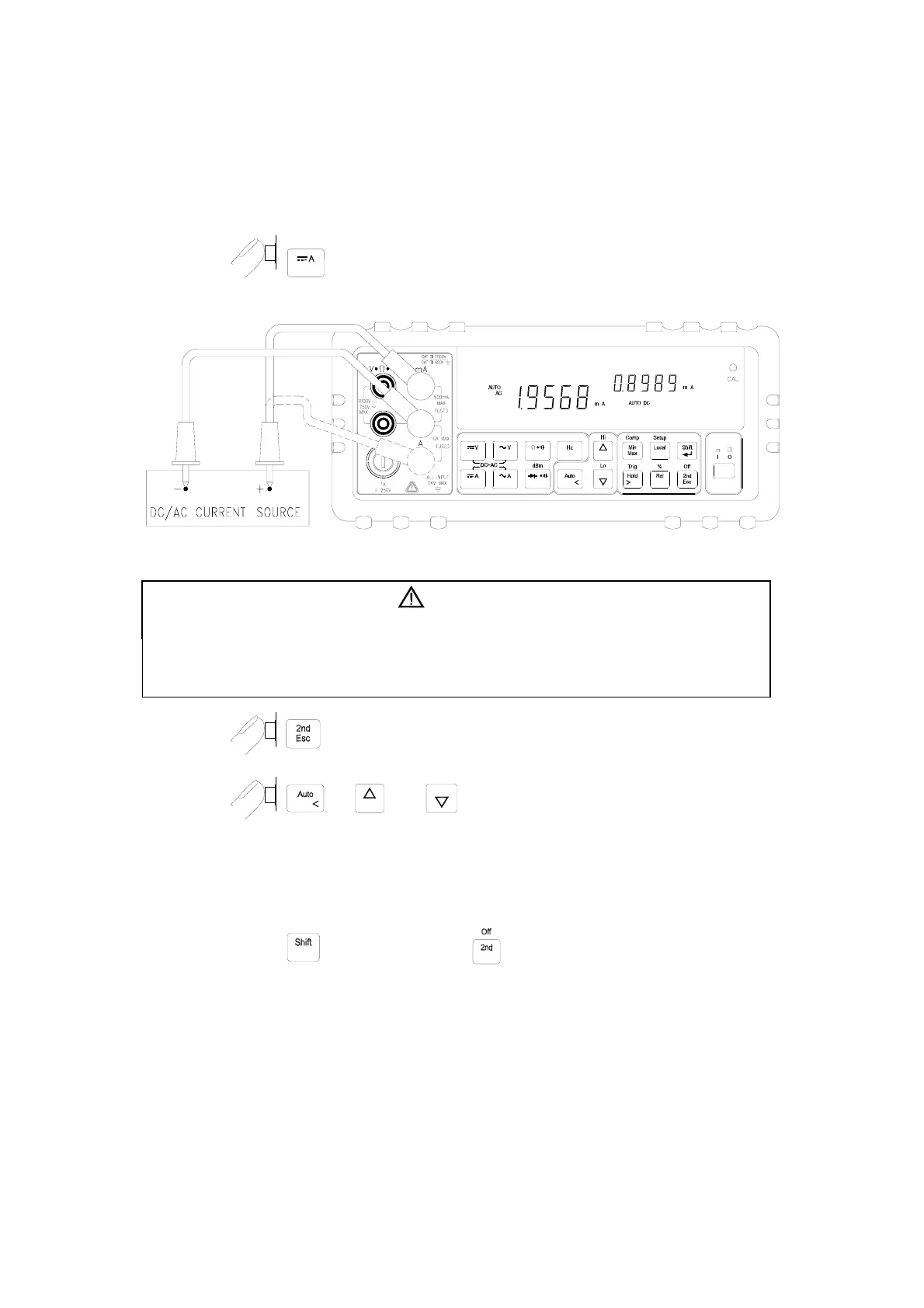

2. Connect the meter to the unit under test as shown below:
POWER
WARNING!
1. Select a correct input terminal according to the input range to be used.
2. To avoid damaging the meter do not apply current exceeding specified range to input
terminals of ” mA” or “A” (see the appendix A Specifications).
3. cycling to select DC current measurement for secondary display.
4.
, or to select auto-ranging or manual range as
necessary.
Notes:
1. Press
then followed by may turn off secondary display.
2. Regarding secondary display function setting, please refer to Section 3-6.
43
