Measuring AC voltage and frequency on an AC circuit.
To display AC voltage in primary display and the frequency in secondary
display or vise versus while measuring an AC signal, user may check AC
voltage and its frequency of an AC Power Supply or circuit by taking a
single meter.
1.
to select AC voltage measurement function for primary display.

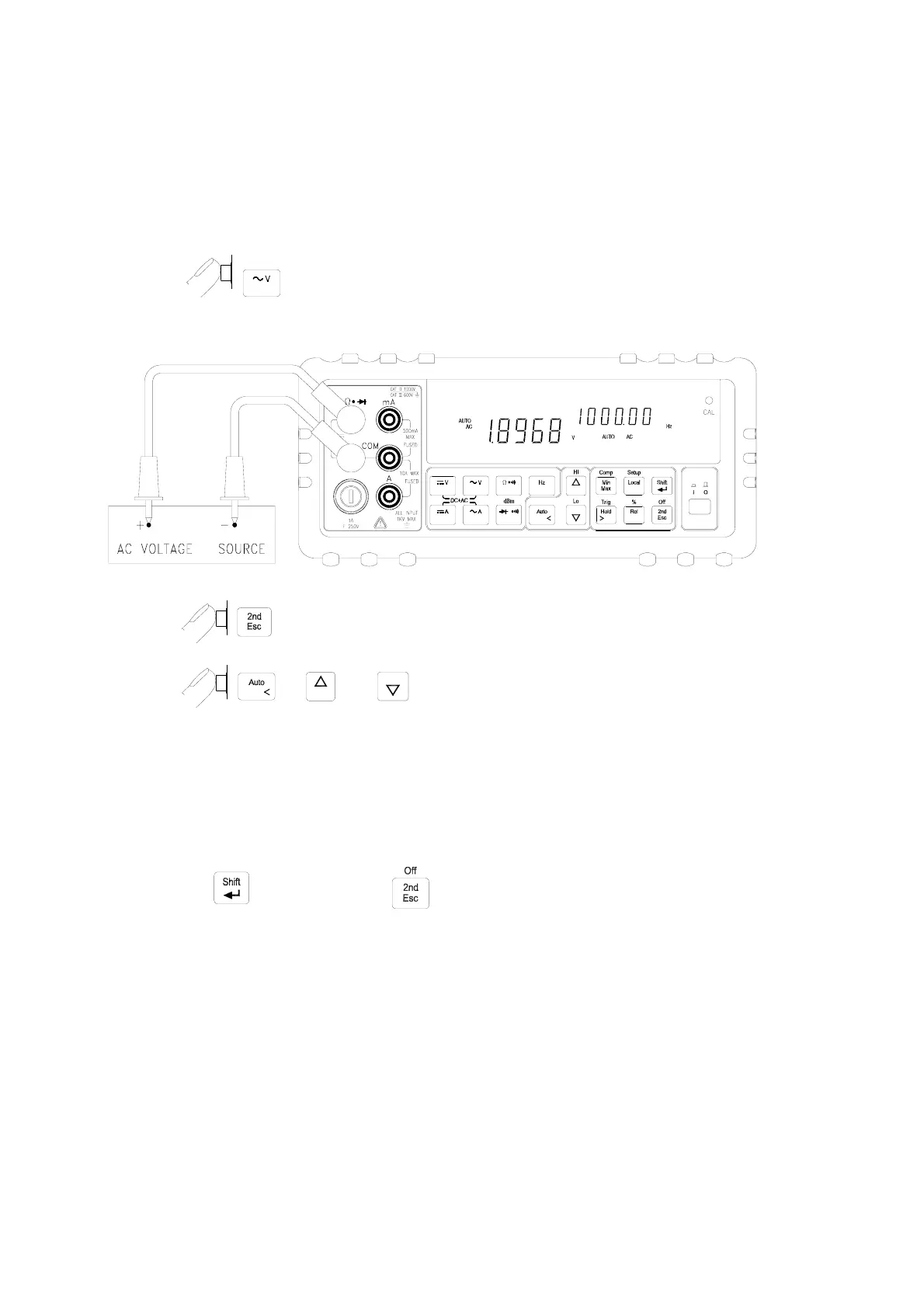

2. Connect the meter to the unit under test as shown below:
POWER
3.
to select frequency measurement for secondary display.
4.
, or to select auto-ranging or manual range for
primary display as necessary.
Notes:
1.
Press
then followed by
may turn off secondary display directly.
2.
Regarding secondary display function setting, please refer to Section 3-6.
44
