8

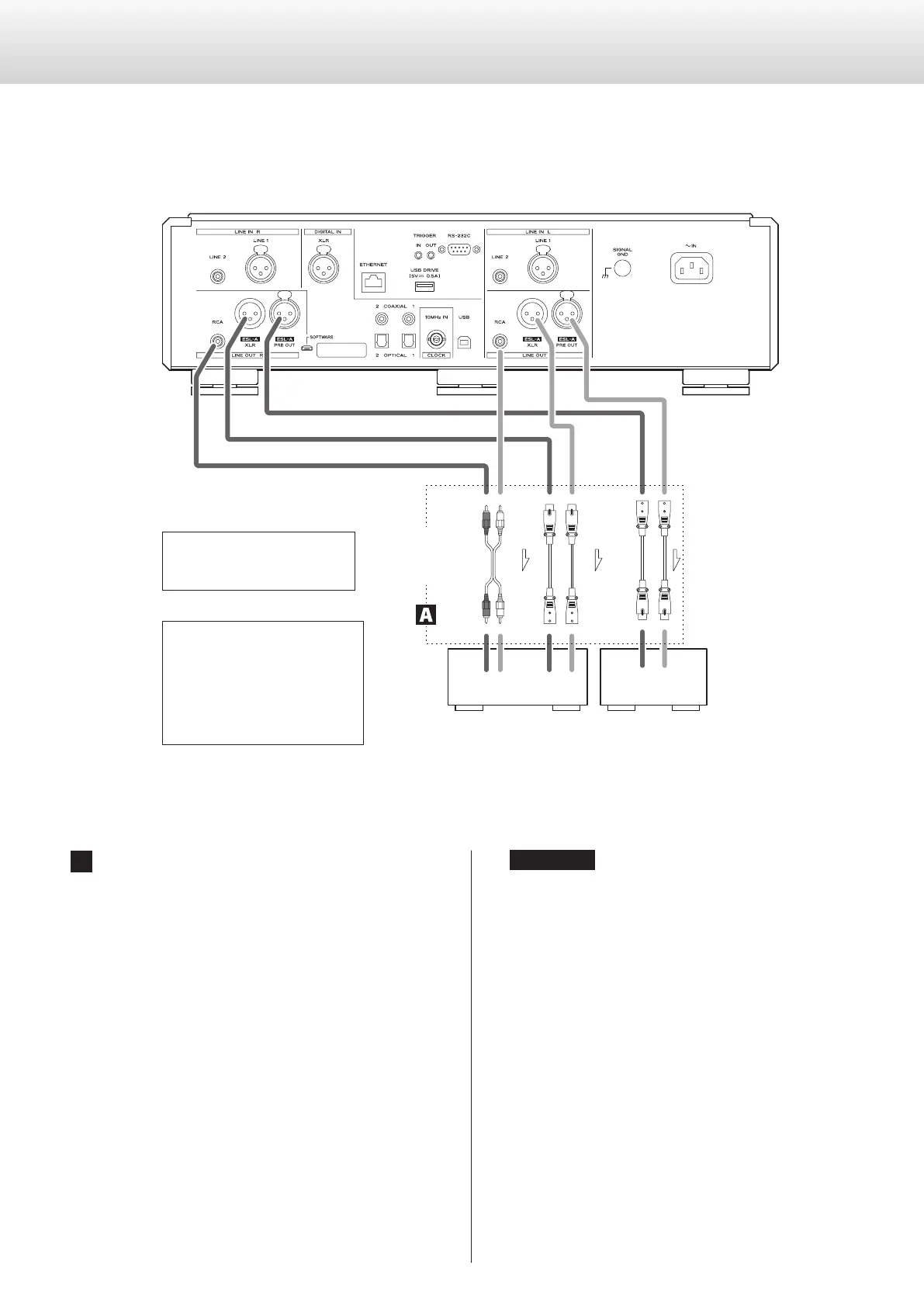

Connecting with amplifiers
V
Precautions when making connections
o After completing all other connections, plug the power plug into a power outlet.
o Read the owner’s manuals of all devices that will be connected, and follow their instructions.
The polarity of the XLR connec-
tors can be set so that either 2 or
3 is HOT (page26).
RLRLRL
RCA cables
XLR cables
Stereo amplifier Power amplifier
that supports
ES-LINK Analog
ES-LINK Analog (ESL-A)
input connectors
Analog input
(LINE IN, etc.)
XLR cables
Connect using
a set of only
one type.
When connected to an amplifier
capable of volume adjustment,
set the analog audio output
level setting (L_VOL>) of the unit
to FIX, and use the amplifier to
adjust the volume (page29).
A Analog audio output (LINE OUT) connectors
These output 2-channel analog audio. Connect the XLR or RCA
connectors to an amplifier.
Use commercially-available cables for connections.
ESL-A/XLR, ESL-A PRE OUT: XLR cables
RCA: RCA cables
Connect an R connector on this unit to an R connector on the
amplifier, and connect the corresponding unit L connector to
the corresponding amp L connector.
Change the analog audio output connector setting
(page 26) and analog audio output level setting
(page29) according to the connectors being used.
o The analog audio output connector setting can be set to XLR
(polarity HOT for pin 2 or 3), RCA or ESLA (page26).
o When connecting this unit with an amplifier that has ES-LINK
Analog (ESL-A) connectors, we recommend connecting
the analog audio output (ESL-A) connectors on this unit
to the ES-LINK Analog (ESL-A) connectors on the amplifier
(page9).
ATTENTION
The ESL-A PRE OUT output connectors of this unit are female-type
connectors to prevent accidental connection with XLR output
connectors.
