ESS XT-3 OWNER’S MANUAL

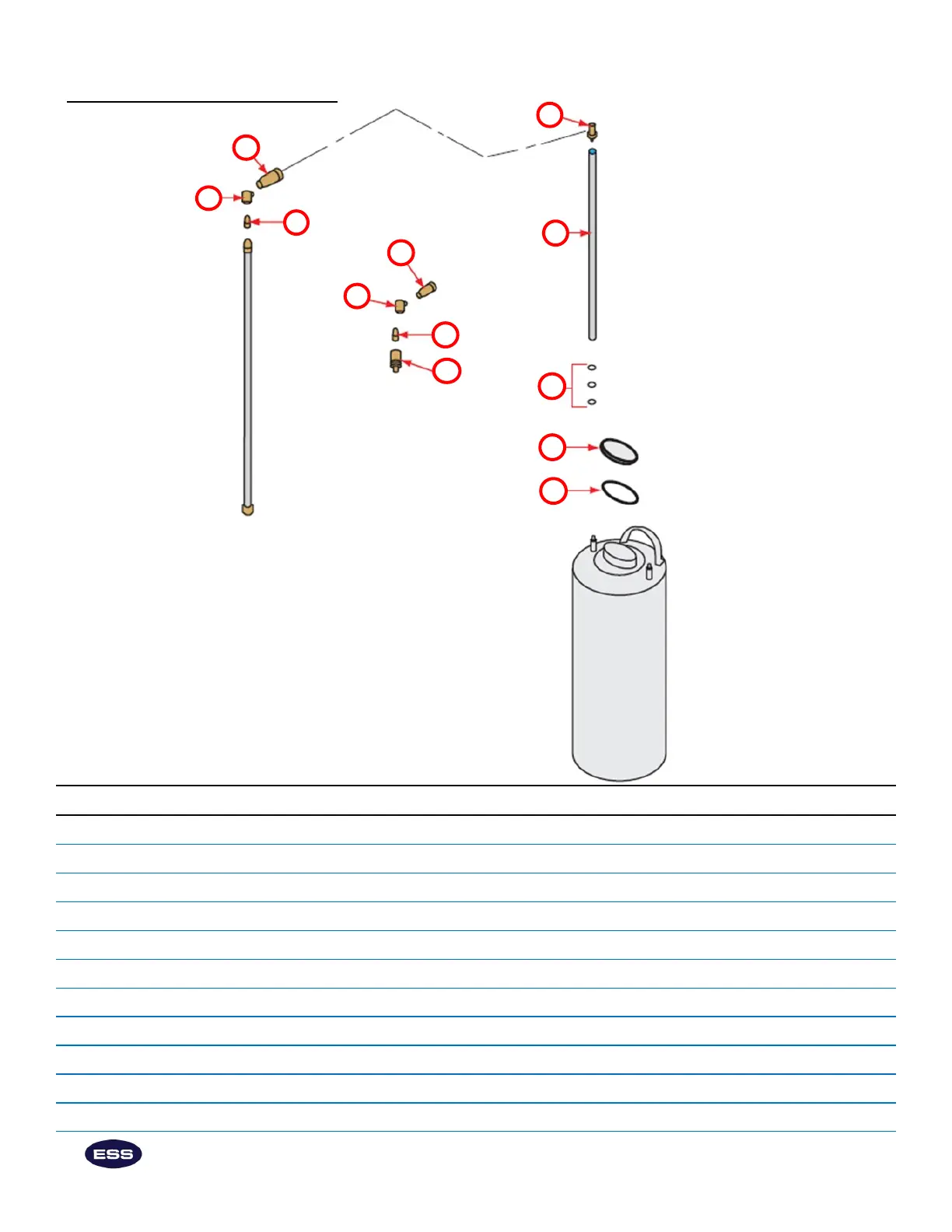

XT-3 Service Parts (connued)
24
ITEM NUMBER ESS PART NUMBER DESCRIPTION # ON MACHINE
11 1149 CHECK VALVE, 1/4”NPT WITH/VITON 1
12 447 QC PLUG, 1/4”, 1/4” FPT, BRASS (TANK OUTLET) 1
13 450 QC SOCKET, 1/4”, 1/4” FPT, BRASS (TANK OUTLET) 1
14 248 QC SOCKET 1/8”, 1/8”FPT, BRASS (TANK INLET) 1
15 1664 O-RING, TANK LID 1
16 398 TANK LID 1
17 266 O-RING 4
18 198 PICK-UP TUBE 1
19 67 ELL, 1/8” NPT, STREET, 90 DEG, BRASS 1
20 156 ELL, 1/4” NPT, STREET, 90 DEG, BRASS 8
21 725 HEX NIPPLE 1/4” MPT 1
13
20
21
12
18
14
19
21
11
17
16
15
HOSE TO TANK ASSEMBLY
TANK
LIQUID
OUTLET
TANK
AIR
INLET
