ESS XT-3 OWNER’S MANUAL

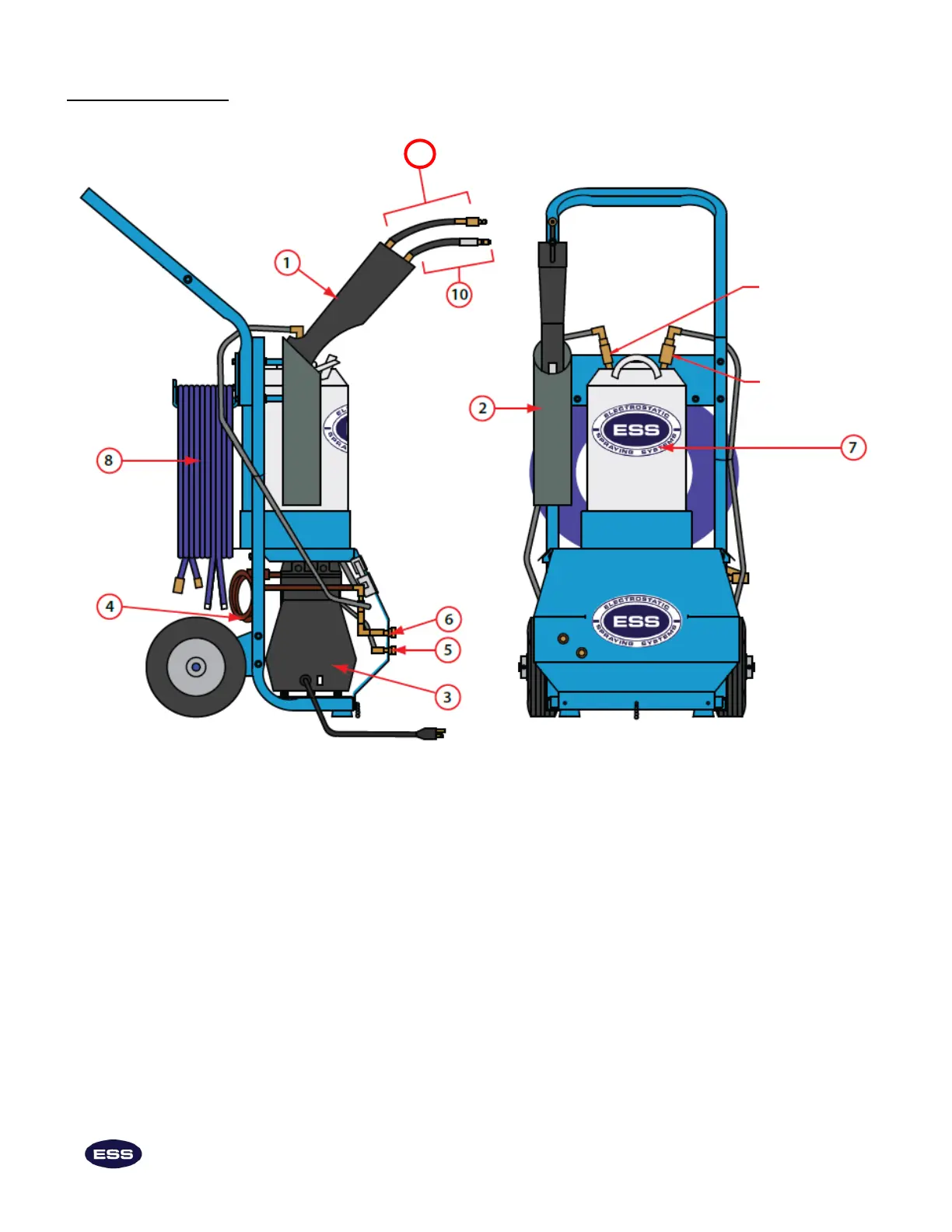

XT-3 Service Parts
ITEM ESS # ON
NUMBER PART NUMBER DESCRIPTION MACHINE
1 HG-6.5-1RP SPRAY GUN ASSEMBLY, SINGLE PORT 1
2 1525 HOLSTER, XT 1
3 1520 COMPRESSOR, 1 HP, 4.5 CFM @ 40 PSI, 120 VOLT 1
4 2139 ROUND TUBING, 3/8” OD X .032” WALL,SOFT COPPER, C 1
5 90 QC SOCKET, 1/8” 1/8” FPT, BRASS (SPRA Y GUN LIQUID) 1
6 92 QC SOCKET, ¼”, ¼” FPT, BRASS (SPRA Y GUN AIR) 1
7 2141 TANK ASSEMBLY, 3 GALLON, COMPLETE 1
8 AS -1238 HOSE ASSEMBLY, TW INLINE, XT 1
9 AS -3238 SPRA Y GUN LIQUID LINE LEADER 1
10 AS -1953 SPRA Y GUN AIR LINE LEADER 1
23
Spraywand
Liquid Line
Leader
9
Spraywand
Air Line
Leader
Tank Air
Inlet
Tank
Liquid
Outlet
