36
The functions, sensors and actuators available are the
following :
t1: Domestic Cold Water Temperature (DCWT)
t2: Domestic Hot Water Temperature (DHWT1)
t3: Domestic Hot Water Temperature (DHWT2)
t4: Static Hot Water Temperature (SHWT)
t5: Static Hot Water Temperature Lower (SHWTL)
t6: Static Hot Water Temperature Upper (SHWTU)
t7: Battery Temperature
F1: Water Flow Rate (Tenth of Gallons per Minute)
F2: Water volume since the last start-up (Hundreds of
Gallons)
HEl: Lower Heating Element
1
HEU : Upper Heating Element
1
P1: Pump Command (%)
2
LSL: Lower Level Sensor
3
LSU: Upper Level Sensor
3
u1: Status of the filling valve
4
Atu: Status of the pump valve
4
rSt: Erase the alarm history
1.
The status of the heating element is either ON or
OFF (shown respectively as on or oFF)
2.
The pump command is the signal to the variable speed
pump, as a % of speed (from 0 to 100%), related to the
flow rate of the domestic water side. Useful to control
the proper operation of the pump.
3.
The status of the level sensors is either Low or High
(shown respectively as Lo or Hi)
4.
The status of the valve is either Open or Closed
(shown respectively as OPn or Clo)

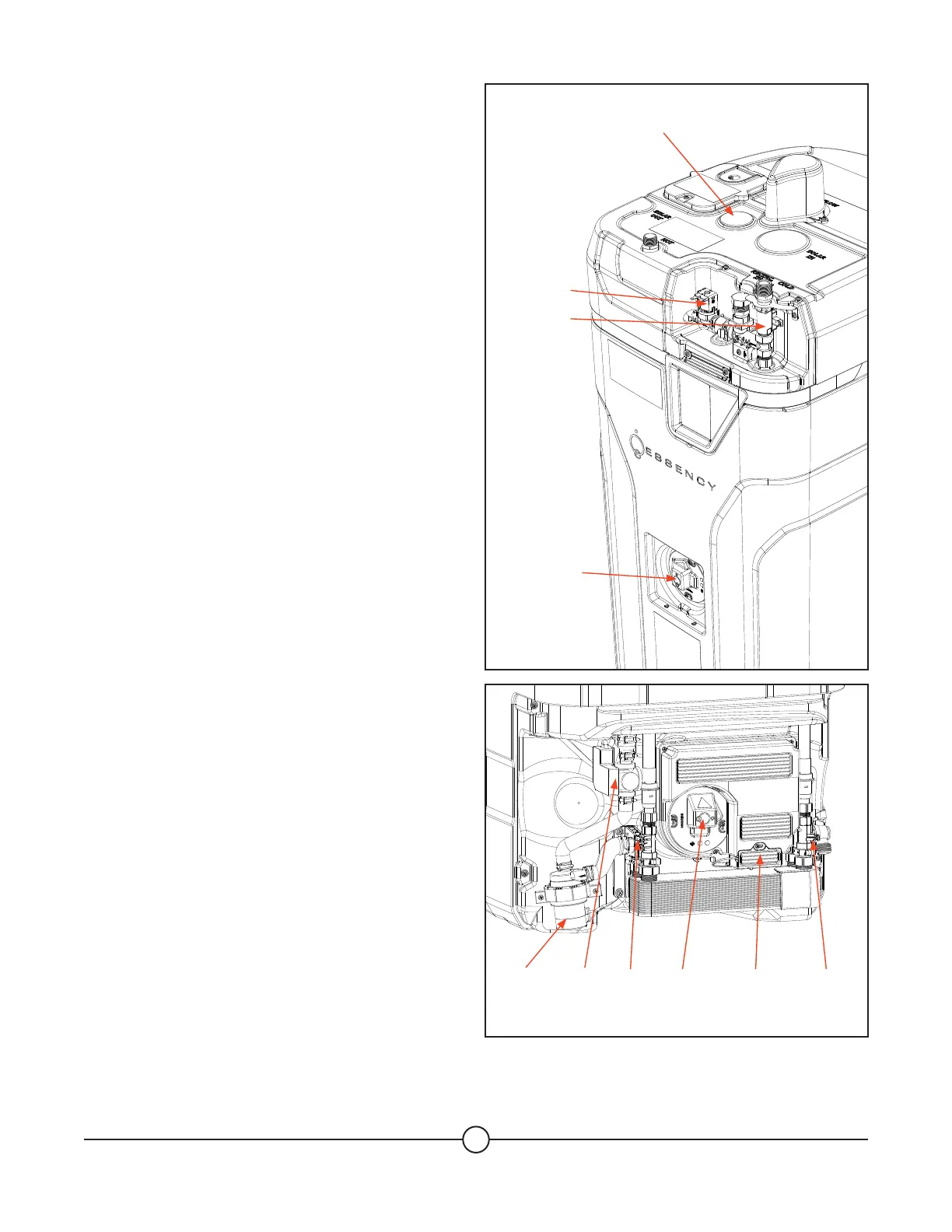

T4
LSL
LSU
u1
HEU
T6
F1
P1 t7AtU
T2
t3
HEL
t5
t1
