Essilor Instruments ALM 500 User Manual

13
4.
4.4.

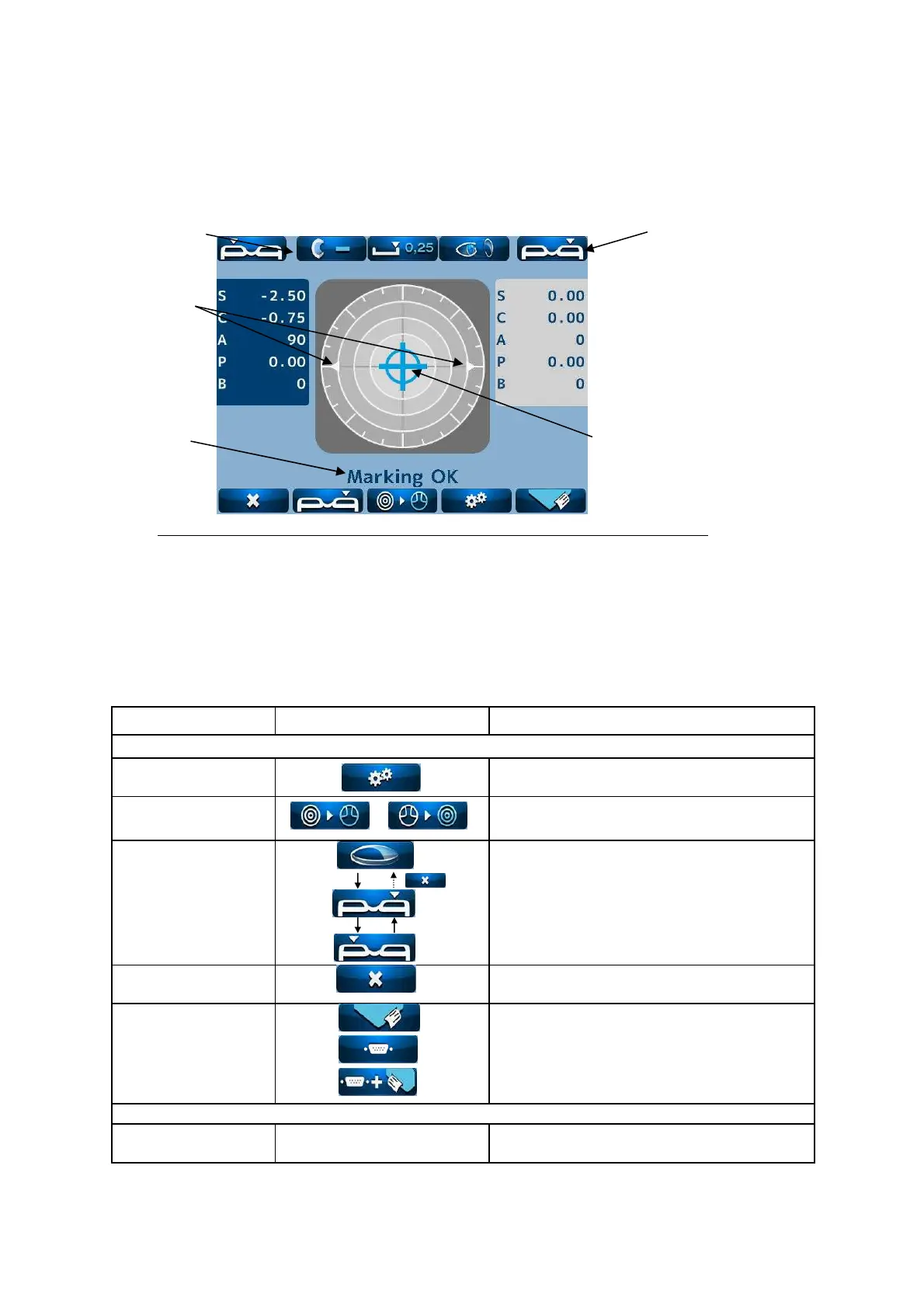

4. Measurement Screen
Measurement ScreenMeasurement Screen
Measurement Screen
4.1
4.14.1
4.1 Description of Measurement Screen
Description of Measurement ScreenDescription of Measurement Screen
Description of Measurement Screen
※The display of the measurement screen reflects the setting and condition of the device.
The functions of the operation switches under the monitor are correspondent to the icons
displayed at the bottom of the screen.
At the time of normal measurement, they are correspondent to the icons shown below.
【Explanation about switches】
Name of switch Icon Description of function
Bottom of screen: 5
Bottom of screen: 5Bottom of screen: 5
Bottom of screen: 5
Function setting
switch
Switches to the Setup (device setting)
screen.
Measurement
selection switch
Switches to multifocal lens
measurement from single focus lens.
Unprocessed lens/
framed lens
selection switch
Selects unprocessed, left or right lens.
Clear switch
Deletes measurement values stored in
memory.
Measurement
value output
switch
Prints out measurement result, outputs
data from RS232C or both.
Lens stand unit: 1
Lens stand unit: 1Lens stand unit: 1
Lens stand unit: 1
Memory/ ADD
switch
No icon
Stores measurement values in memory
and take a measurement of ADD.
Measurement screen of single focus lens, multifocal lens and contact lens
Display of alignment
condition or error
message
Type of lens:
Left/ right/ single
Axis mark
Cross cursor
Measurement setting
