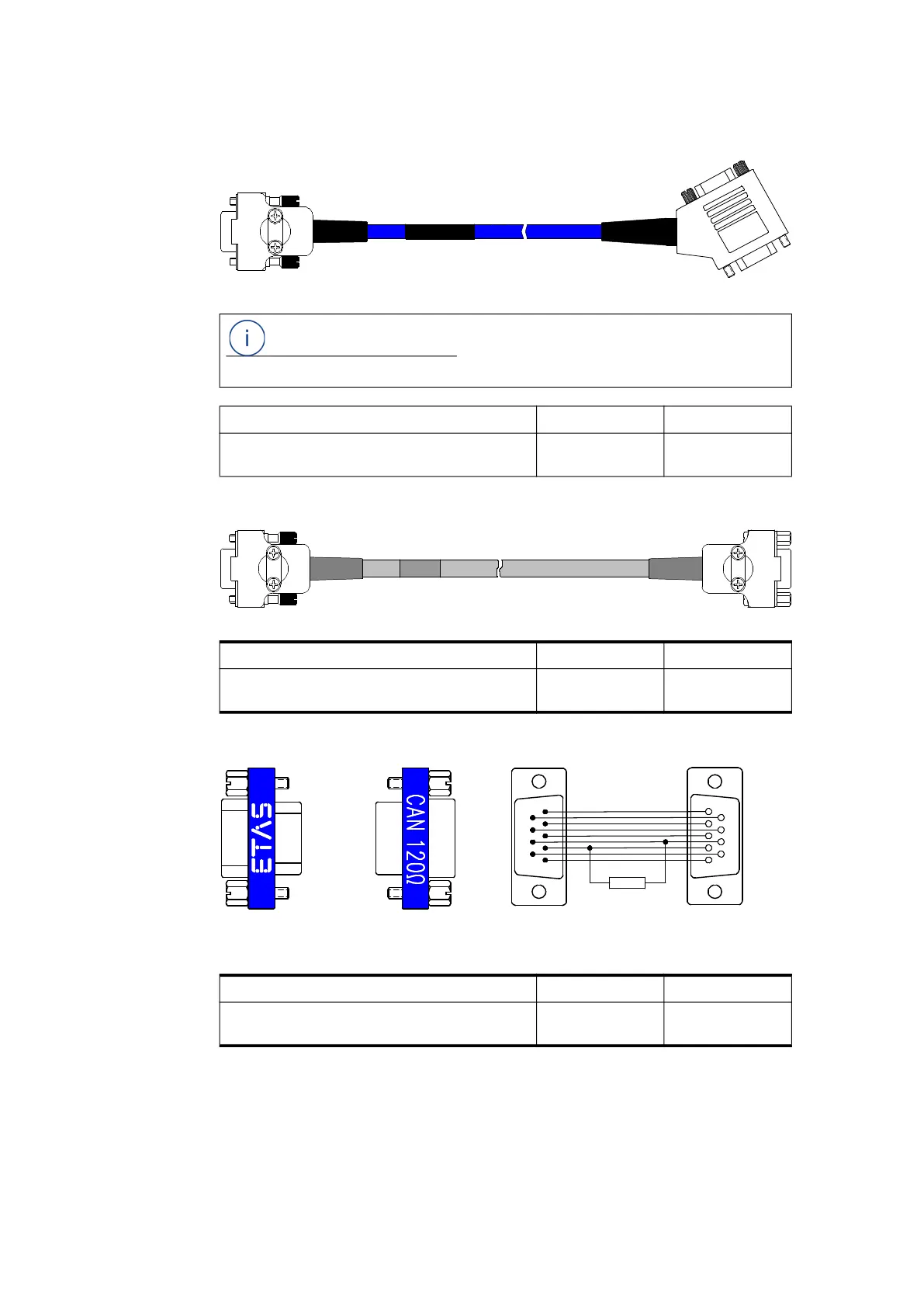

ETAS ES582.2 - Cable CBH500; Cable CBCX130; Adapter CBCX131.1-0; Fig. 6-6 Terminating Resistor CBCX131.1-0

36 | Cables and Accessories
ETAS ES582.2 | User Guide
6.3 Cable CBH500
Fig. 6-4 Cable CBH500
6.4 Cable CBCX130
Fig. 6-5 Cable CBCX130
6.5 Adapter CBCX131.1-0
Fig. 6-6 Terminating Resistor CBCX131.1-0
CAN 120 ohm terminating resistor, 2xDSUB (9fc+9mc)
NOTE
The cable CBH500 supports only one CAN channel.
Order designation Short name Order number
CAN, LIN, and FlexRay Interface Cable,
DSUB-DSUB (9fc - 9mc + 9fc), 2 m
CBH500-2 F 00K 106 276
Order designation Short name Order number
CAN Interface Cable, DSUB – DSUB (9fc-
9mc), 2 m
CBCX130-2 F 00K 103 784
Order designation Short name Order number
CAN 120 ohm terminating resistor, 2xDSUB
(9fc+9mc)
CBCX131-0 F 00K 103 786
C BH500 -2
F 00 K 10 6 2 76
CA N/ LI N / F LX
0000
cj e N
cjeN
`_ ` uN PMK NJ O
c MMh NMP TUQ
`^k
cje N
5
4
3
2
1
6
7
8
9
5
4
3
2
1
9
8
7
6
120 Ohm
