Electrical
• Operates between 100V and 240VAC at a frequency of 50/60Hz.
• Maximum power consumption is 185W.
• Up to 9 luminaires (15A max) may be linked via power thru connector
(10 luminaires total per circuit) when used with an R20 relay module or
Unison Echo
®
Relay Panel. Consult breaker trip curves when used with
other equipment. Requires power from a non-dimmable source.
Typical power consumption
Installation

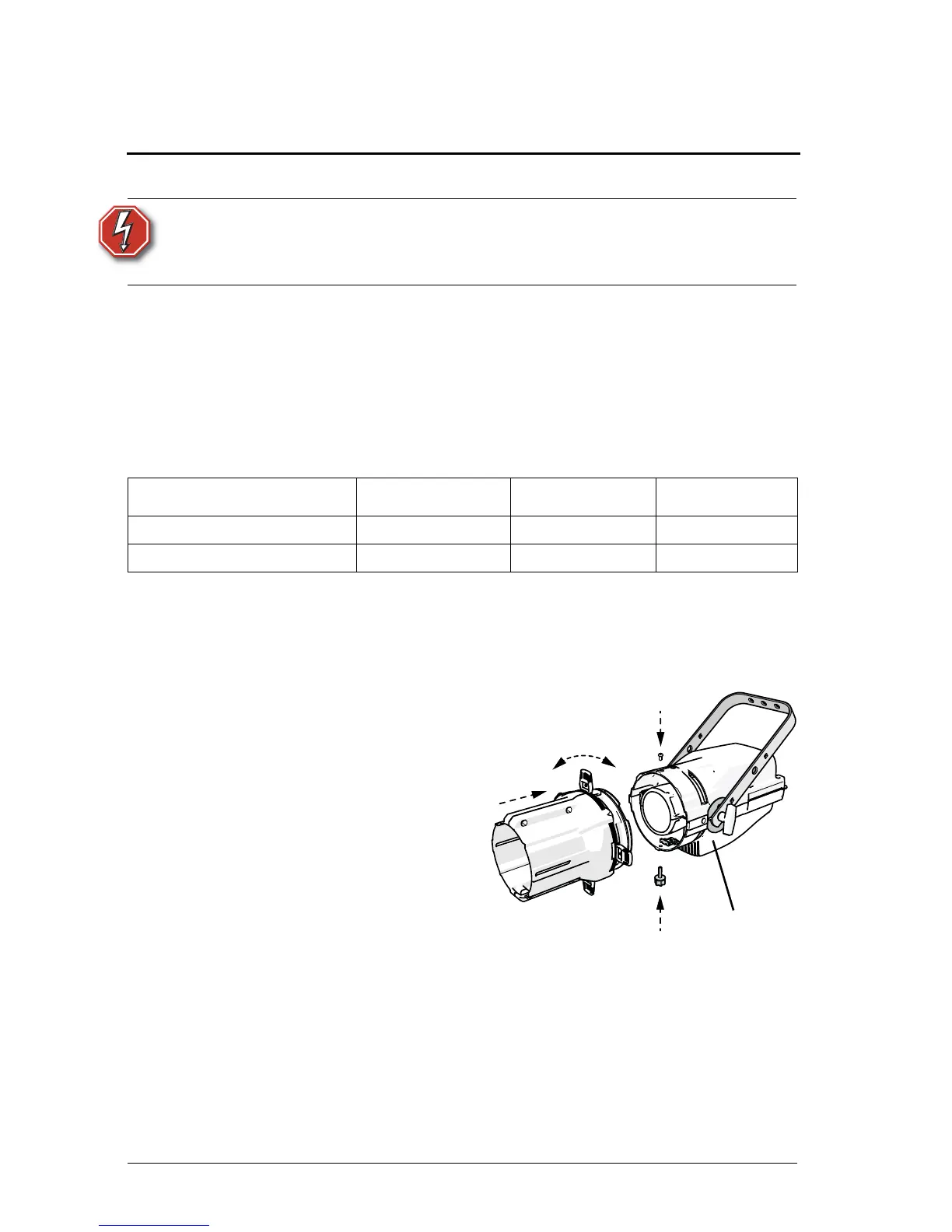

Installing a shutter barrel
The ColorSouce Spot can be
purchased with or without a
shutter barrel. To install a
shutter barrel you will need a
#2 Phillips screwdriver (not
provided).
The ColorSource light engine
includes a barrel screw. The
small screw used to secure the
top of the shutter barrel is
included with the shutter barrel.
Step 1: Align the barrel to the front of the ColorSource Spot and
rotate it one quarter turn counter-clockwise.
Step 2: Insert the shutter barrel into the front of the light engine and
rotate clockwise until it is fully threaded onto the light engine.
Step 3: Insert the barrel screw at the bottom of the light engine and
tighten.
Step 4: Insert the small screw into the top of the light engine and
tighten using the Phillips screwdriver.
WARNING:
Disconnect the fixture from power and DMX and
allow it to cool before performing any cleaning and
maintenance.
100V 120V 240V
Idle Power / Current 1.19W / 0.0465A 2.07W / 0.0479A 1.5W / 0.0531A
Direct at Full / Current 168W / 1.69A 166W / 1.39A 166W / 0.72A
Small screw (included
with shutter barrel)
Light engine
