ETC Quick Guide
Source 4WRD II Version 1.1.2
Retrofit the Fixture
WARNING: RISK OF FIRE OR ELECTRIC SHOCK! Installing the
Source 4WRDII LED retrofit kit requires knowledge of luminaire
electrical systems. If you are not qualified, do not attempt
installation. Contact a qualified electrician.
AVERTISSEMENT : RISQUE D'INCENDIE OU DE DÉCHARGE
ÉLECTRIQUE! Installer le nécessaire de conversion Source 4WRDII
LED nécessite une connaissance des systèmes électriques de
projecteurs. Si vous n’êtes pas qualifié, ne tentez pas
l’installation. Faire appel à un électricien qualifié.
Note:
THE RETROFIT KIT IS ACCEPTABLE AS A COMPONENT OF A
LUMINAIRE WHERE THE SUITABILITY OF THE COMBINATION SHALL BE
DETERMINED BY AUTHORITIES HAVING JURISDICTION.
Wire the Power Connector(If Needed)
If you ordered a Source 4WRD II retrofit without a power connector, wire the
connector in accordance with all national and local electrical codes:
Brown = Live
Blue = Neutral
Green/Yellow = Protective earth

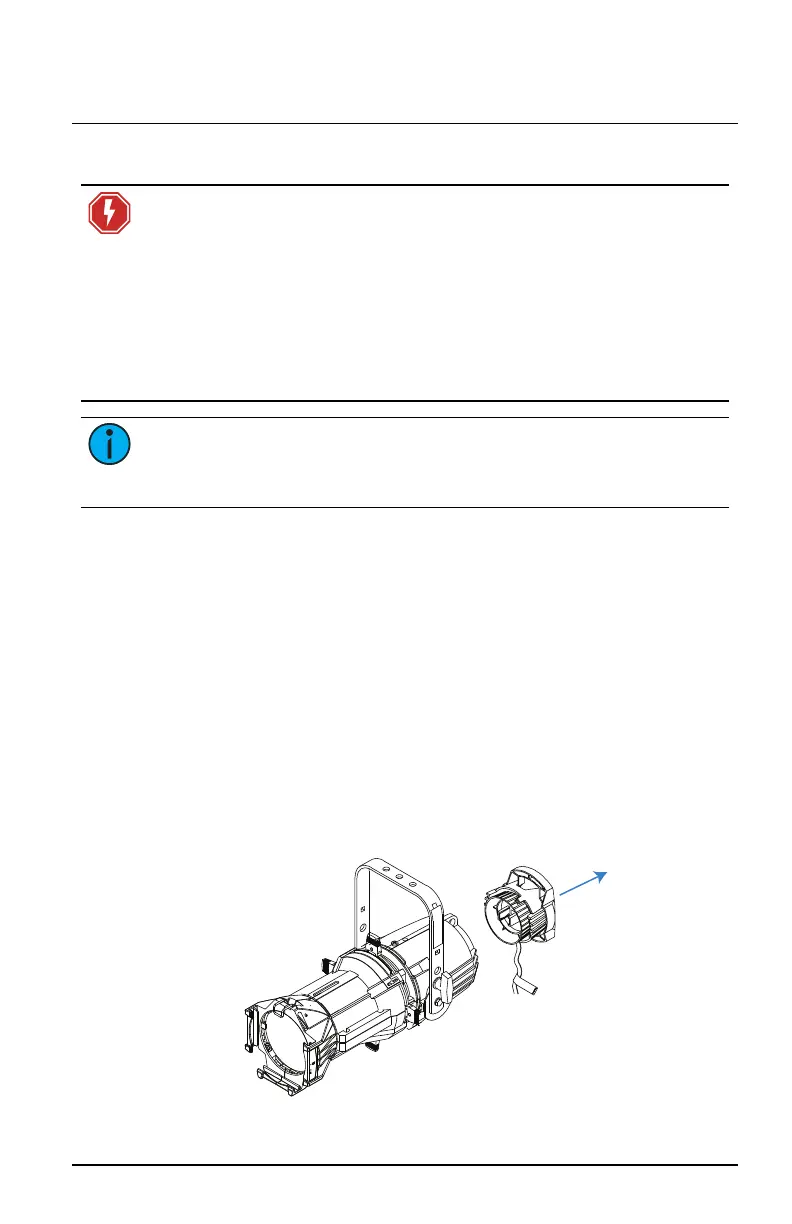

Remove Incandescent Lamp Housing
1. Unplug the Source Four incandescent fixture and place it on a flat,
stable surface.
2. Loosen the brass thumb screw located above the beam adjustment
knob. The lamp housing is now loose.
3. Remove the lamp housing from the fixture body.
Source 4WRD II Page 3 of 8 ETC
