ETC Source Four - Basic Assembly

1
Basic Assembly
WARNING:
Please note the following safety warnings before use:
Do not mount the fixture on or near combustible surfaces.
Do not operate the fixture without a lens installed.
Always hang the fixture with the color frame retaining clip in the locked
position.

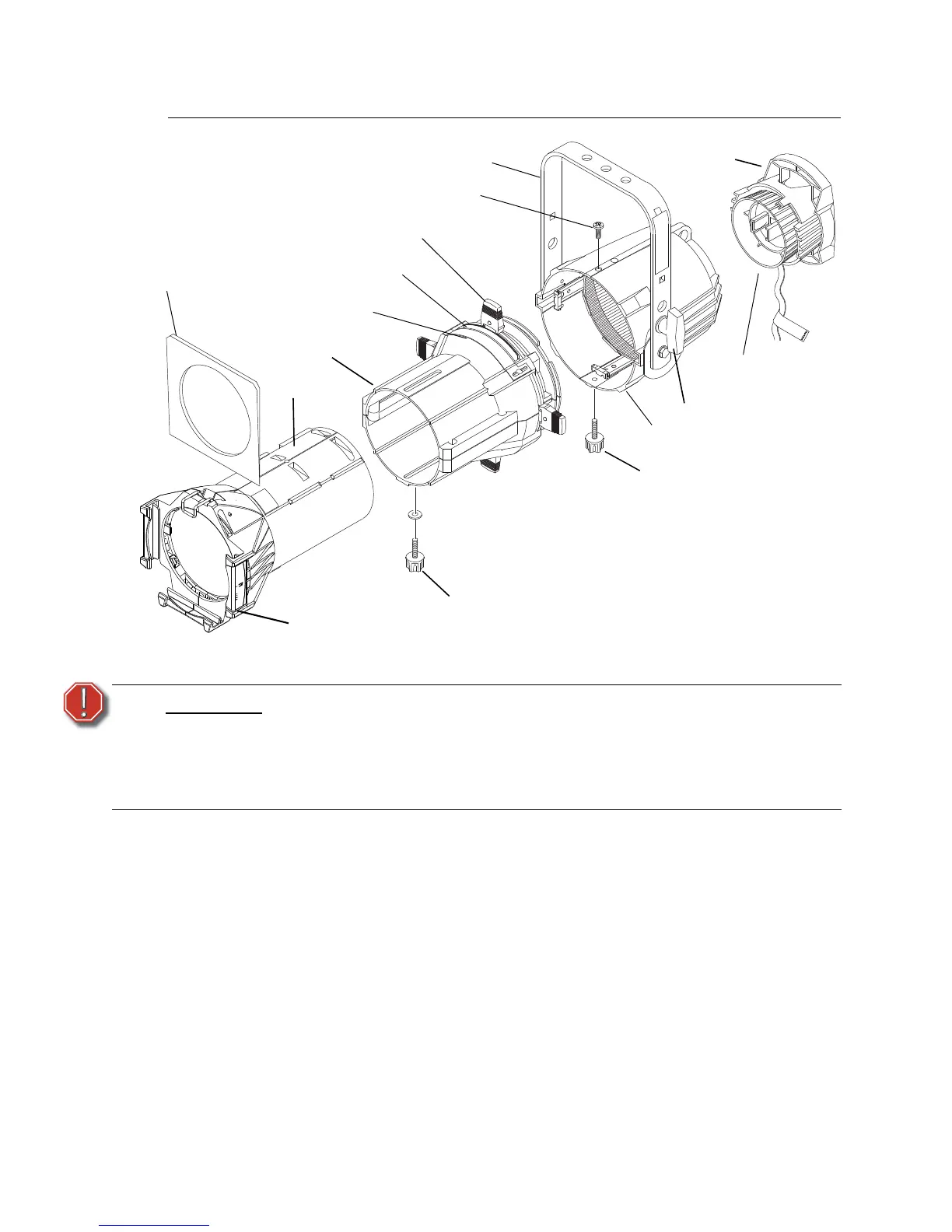

Color frame holder
Beam focus knob
Color frame
Lens tube
Barrel assembly
Barrel rotation knob
Yoke locking knob
Lamp housing
assembly
Insulated handle
Reflector housing
Yoke
Retainer bolt
Shutters
Pattern holder slot
Drop-in iris slot
NOTE: Safety cable is included for
cUL applications
Figure 1
