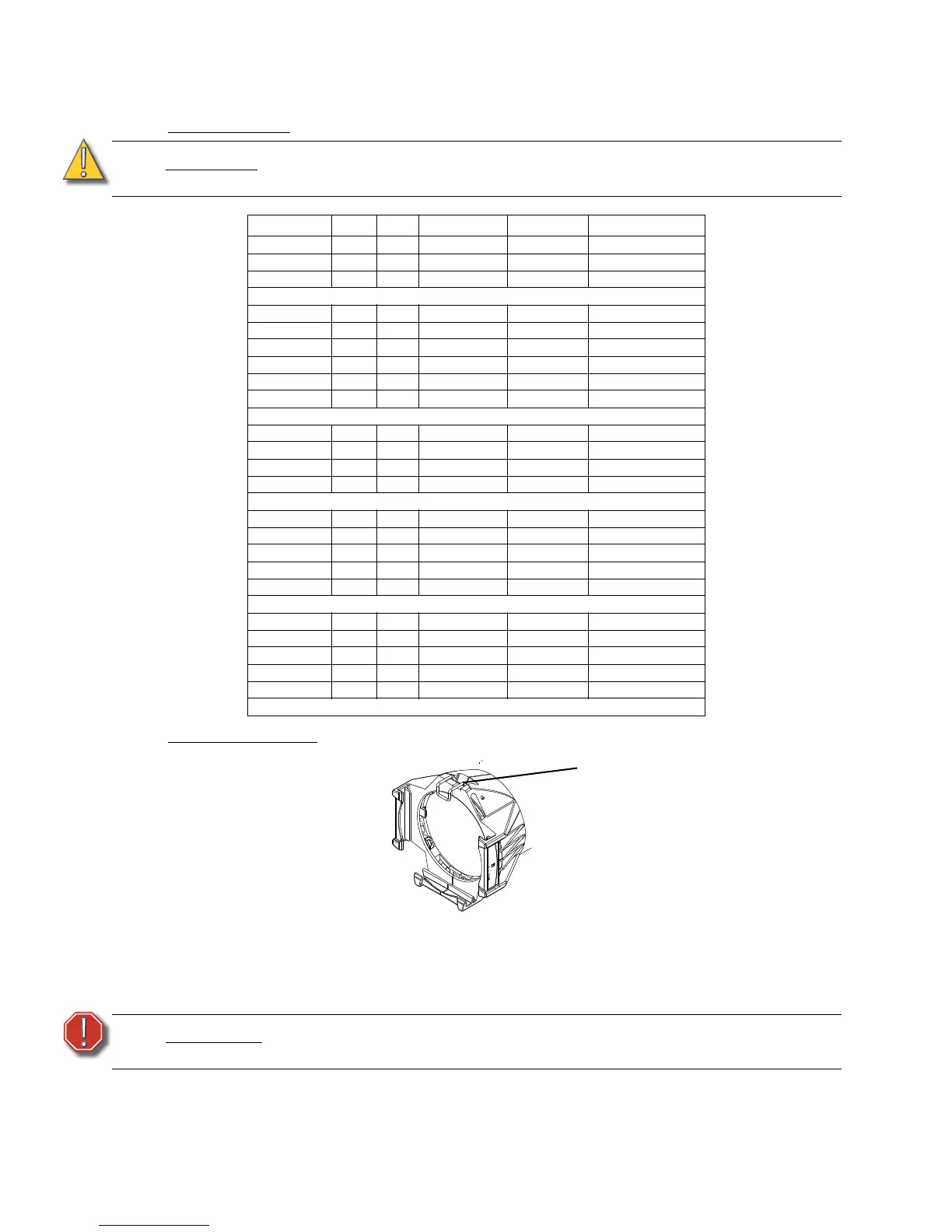

2 Source Four User Manual
Fixture information
HPL lamp table
Color frame holder
The color frame holder is equipped with a spring-loaded retaining clip that prevents color frames
and accessories from falling out. See Figure 2.
Step 1: Release the retaining clip by pushing it sideways while gently pulling backwards.
CAUTION:
Do not use lamps other than the HPL in Source Four fixtures. Use of lamps other
than HPL will void UL/cUL safety compliance and your warranty.
Lamp code Watts Volts Initial Lumen Color temp. Average rated life
HPL 780/77* 750 77 22,950 3,250° 300 hours
HPL 550/77* 550 77 16,170 3,250° 300 hours
HPL 550/77X* 550 77 12,160 3,050° 2000 hours
HPL 750/115 750 115 21,900 3,250°K 300 hours
HPL 750/115X 750 115 16,400 3,050° 1500 hours
HPL 575/115 575 115 16,520 3,250°K 300 hours
HPL 575/115X 575 115 12,360 3,050°K 2000 hours
HPL 375/115 375 115 10,540 3,250°K 300 hours
HPL 375/115X 375 115 8,000 3,050°K 1000 hours
HPL 750/120 750 120 21,900 3,250°K 300 hours
HPL 750/120X 750 130 16,400 3,050°K 1500 hours
HPL 575/120 575 120 16,520 3,250°K 300 hours
HPL 575/120X 575 120 12,360 3,050°K 2000 hours
HPL 750/230 750 230 19,750 3,200°K 300 hours
HPL 750/230X 750 230 15,600 3,050°K 1500 hours
HPL 575/230 575 230 14,900 3,200°K 400 hours
HPL 575/230X 575 230 11,780 3,050°K 1500 hours
HPL 375/230X 375 230 7,250 3,000°K 1000 hours
HPL 750/240 750 240 19,750 3,200°K 300 hours
HPL 750/240X 750 240 15,600 3,050°K 1500 hours
HPL 575/240 575 240 14,900 3,050°K 400 hours
HPL 575/240X 575 240 11,780 3,050°K 1500 hours
HPL 375/240X 375 240 7,250 3,000°K 1000 hours
* To be used with ETC Dimmer Doubler™
WARNING:
Make sure all color frame accessories are locked in position with the
retaining clip before hanging the Source Four fixture.
