Installation - Assembly Procedures
Remove the bench acrylics. They are held
in place with quarter-turn latches. Using
the smaller hex wrench (6mm) turn the
latch 90° to unlock. The rear acrylic has
four latches, and simply lifts out. The
bench acrylic has two latches and is sup-
ported by gas springs. After detaching the
gas springs from the bench (see below) lift
the acrylic from the channel in the back.

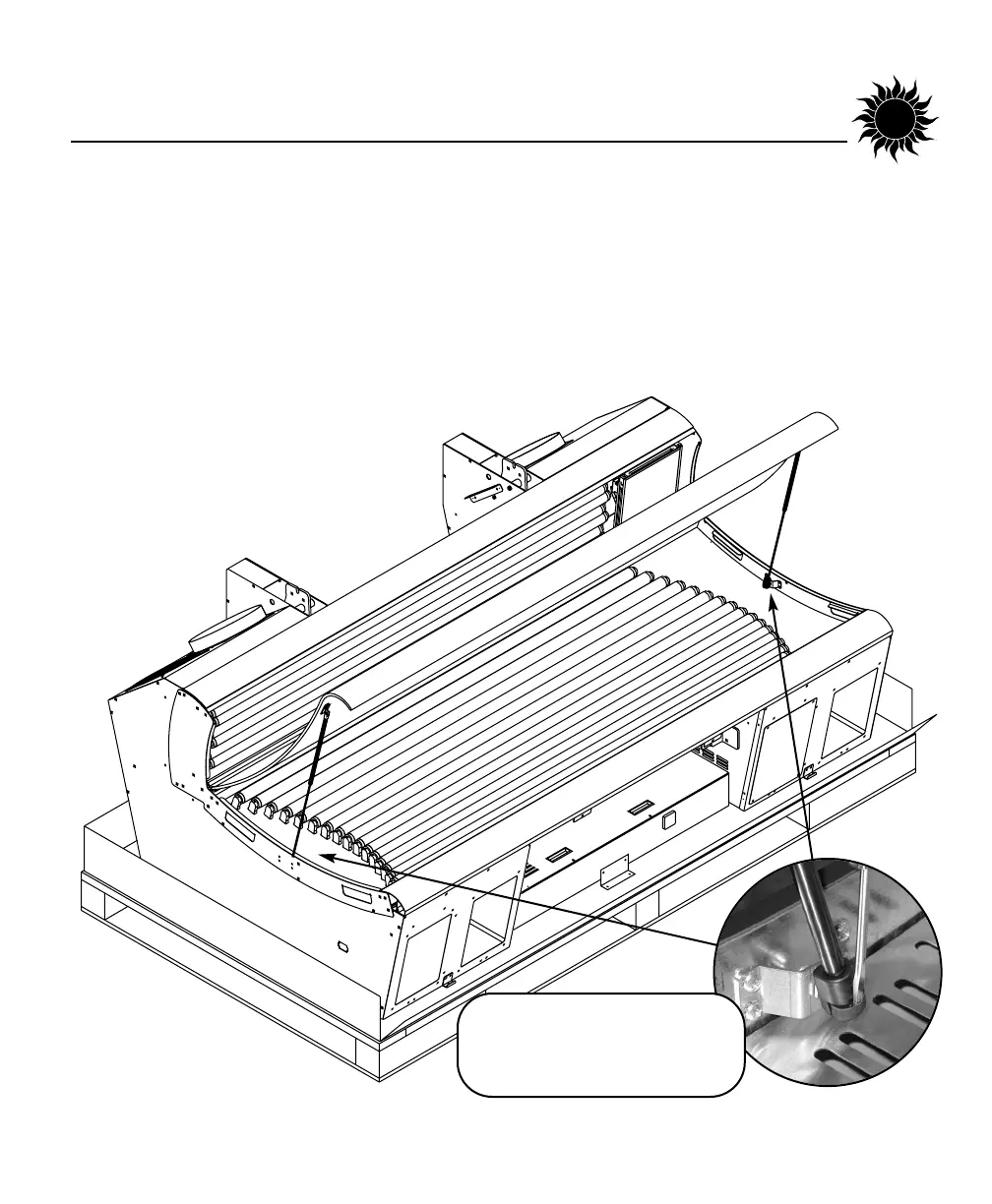

Pry the metal clip out (do
not remove) and pull gas
spring end off ball stud.
