7
27330-01A
Installation - Assembly Procedures

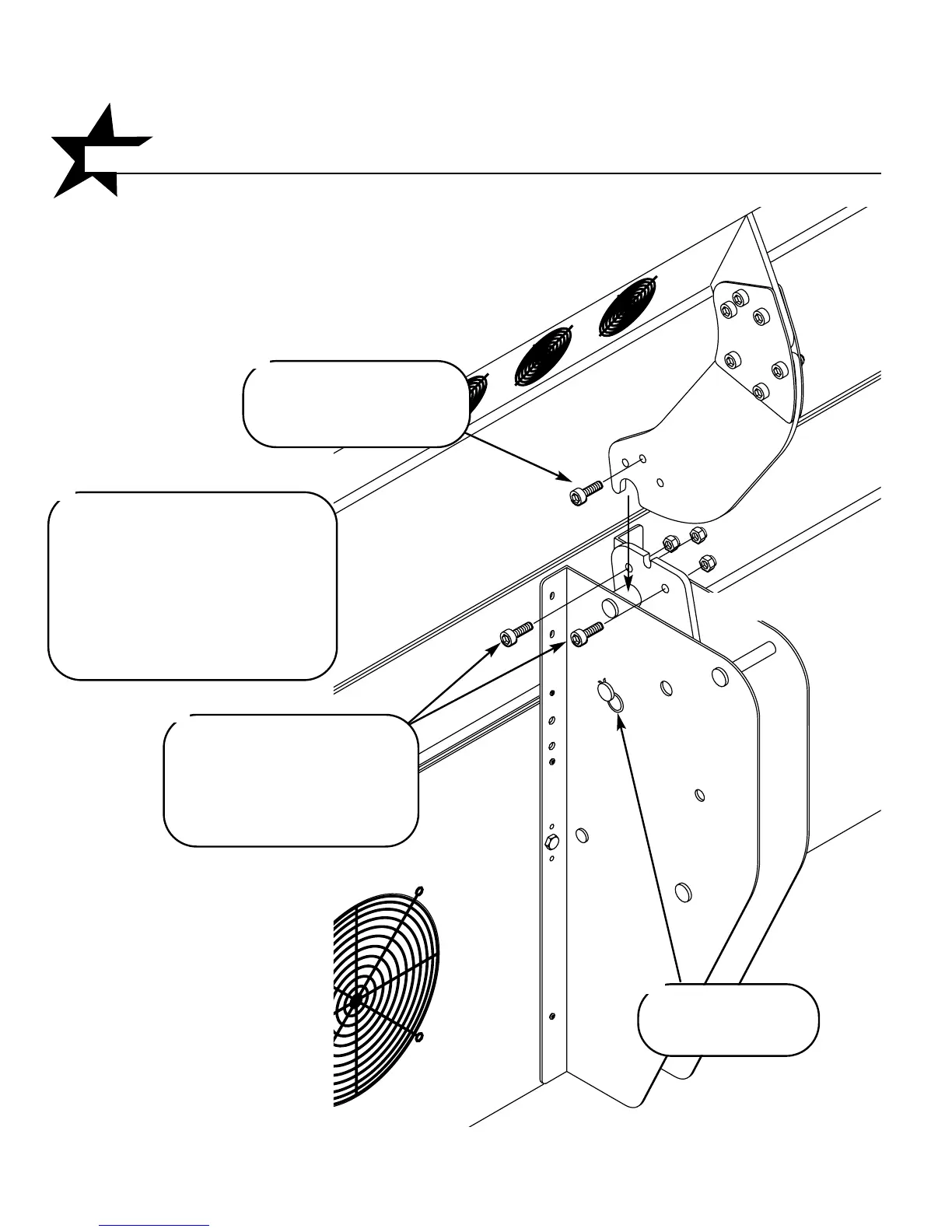

Install this bolt as a
positioning aide.
Slip canopy arm onto hinge
arm. Positioning bolt will
engage the slot on top of
hinge arm and hold canopy
up while the other bolts are
installed.
Install other bolts as
shown. Secure all six
bolts in place with self-
locking nuts.
Parts needed:
6 - 3/8 x 1 1/4” hex-socket bolts
6 - 3/8” self-locking hex nuts
CANOPY
HINGE ARM
Remove this pin
and discard.
3
1
2
4
To Next Page
