12. Technical data
NOTICE
If a data sheet is available for the product, the information on the data sheet applies.
12.1. Safety switch CES-A-.5
Ì Read head and evaluation unit integrated in the normal housing
Ì Semiconductor output
Ì M12 plug connector

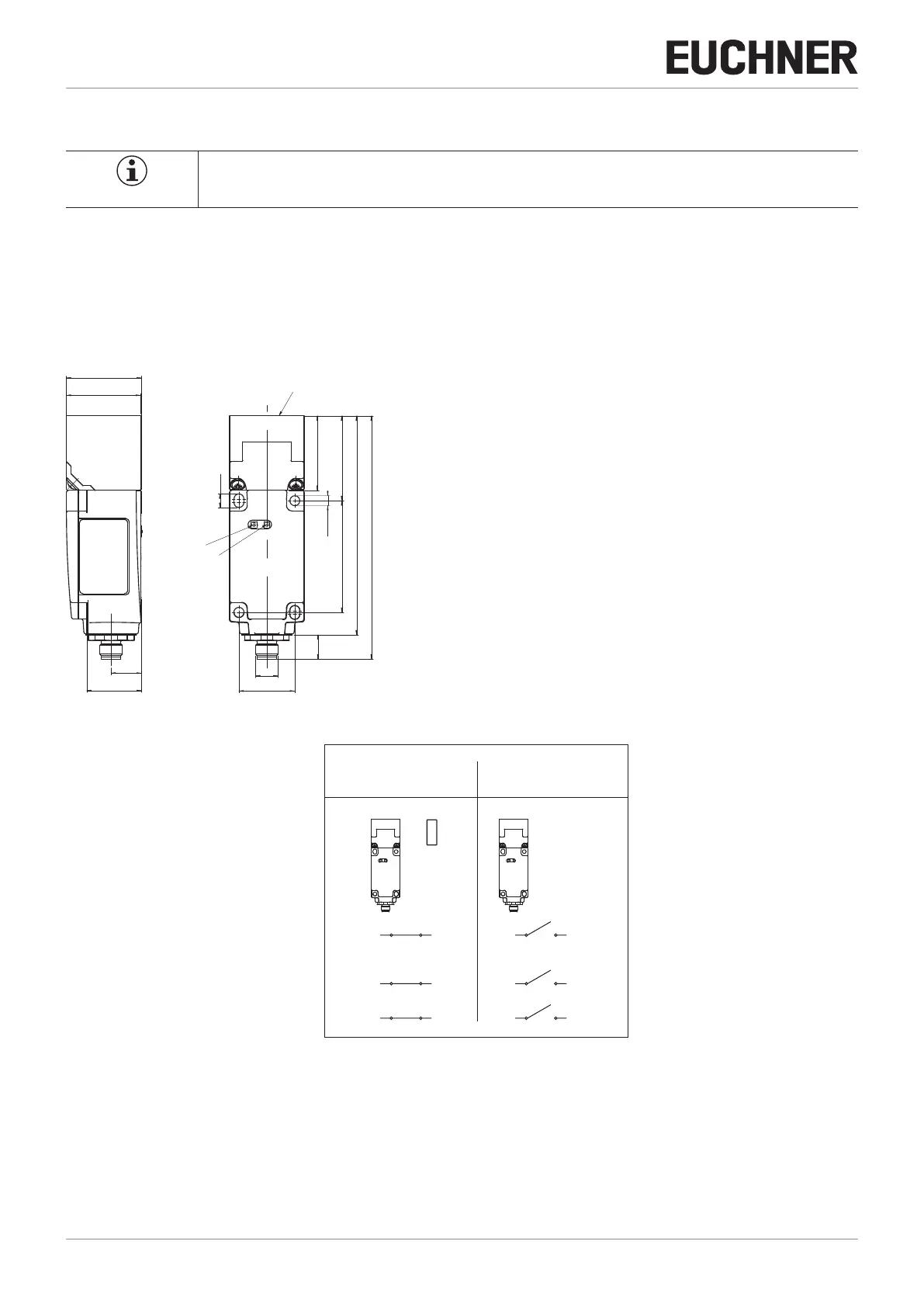

Dimension drawing
30
M12x1
±0,1
±0,1
13
118
45,5
40
∅ 5,3
60
7,3
( 131 )
16,5
40,5
30
40
LED gn
LED rd/ye
Active face
Switching characteristics
Ì 2 safety outputs (semiconductor
outputs)
Ì 1 door monitoring output (semicon-
ductor output, not a safety output)
Guard
closed
(actuator detected)
open
(actuator not in the actuating
range)
Read head Actuator Read head
+LA
LA
+LB
LB
24 VOUT
+LA LA
+LB LB
24 V
OUT
