Operating Instructions
Non-Contact Safety Switch CES-A-.5
24
(translation of the original operating instructions) 2096580-16-11/22

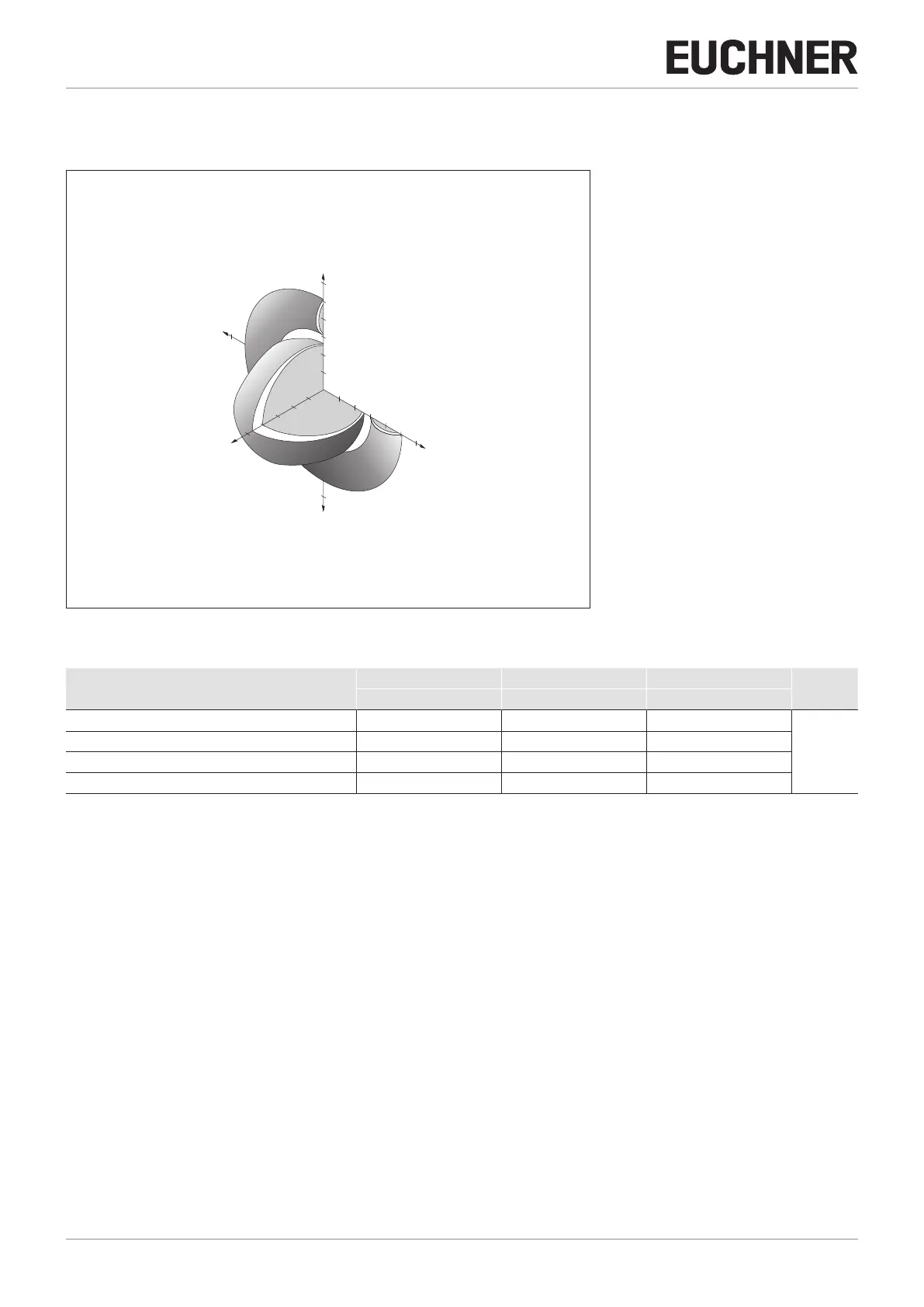

12.3.2. Typical actuating range
Only in combination with actuator CES-A-BBA or CES-A-BCA.
X
25
15
20
10
5
20
25
30
5
10
15
-30
30
-30
25
20
15
10
5
Y
Z
For a side approach direction for the actuator and safety switch, a minimum distance of s = 4 mm must be maintained so that the
actuating range of the side lobes is not entered.
12.3.3. Actuating range for center offset m = 0
1)
Parameter
Value
Unit
min. typ. max.
Assured operating distance S
ao
18 - -
mm
Operating distance - 20 -
Switching hysteresis 2 3 -
Assured release distance S
ar
- - 40
1) The values apply to surface mounting of the actuator.
