Operating Instructions
Transponder-Coded Safety Switch CET.-AS-…
16
(Translation of the original operating instructions) 2113689-04-07/19

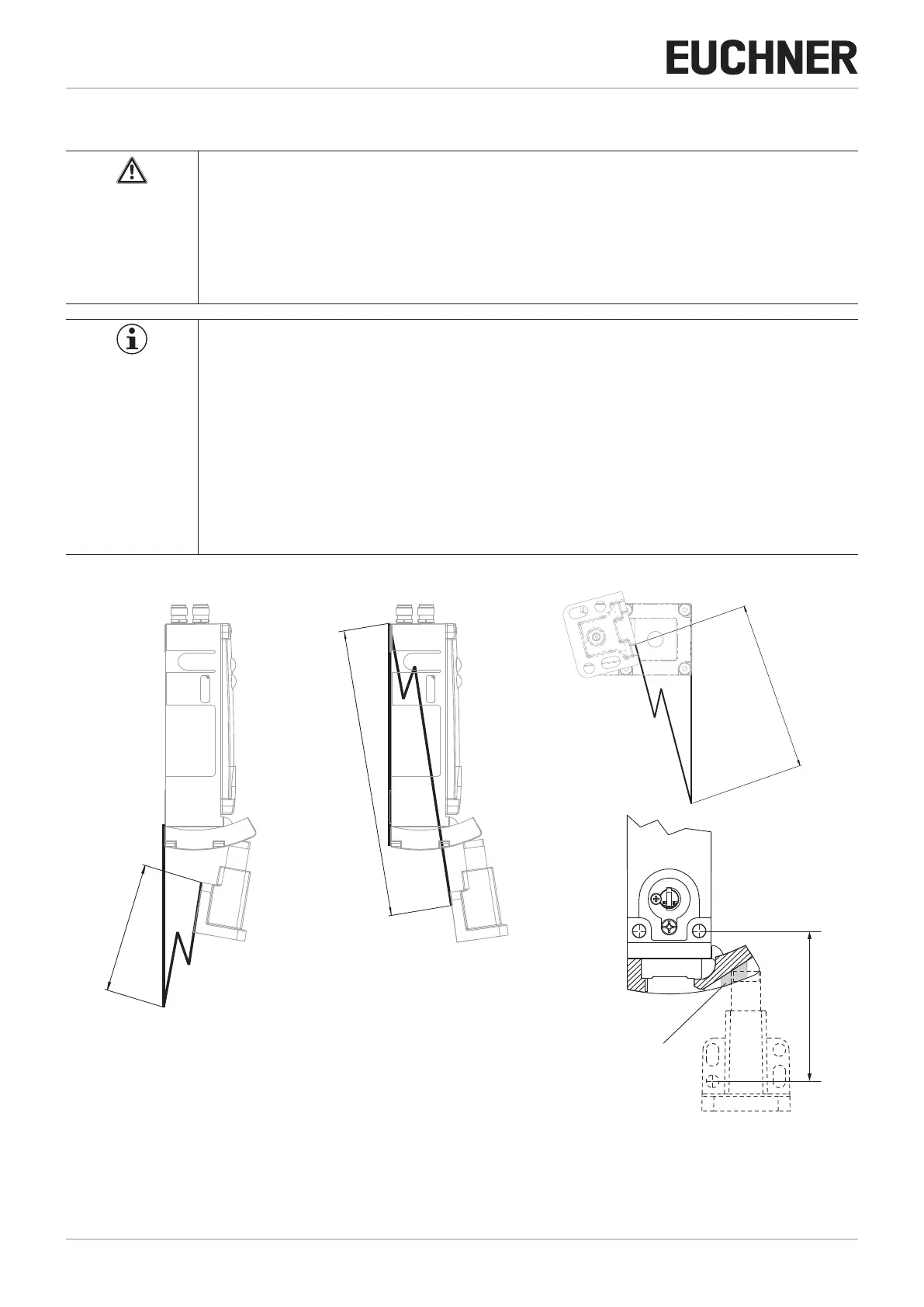

9. Mounting
CAUTION
Safety switches must not be bypassed (bridging of contacts), turned away, removed or otherwise
rendered ineffective.
Ì Observe ENISO14119:2013, section 7, for information about reducing the possibilities for by-
passing an interlocking device.
Ì The max. achievable category according to EN13849-1 depends on the installation orientation
(see chapter 13. Technical data on page 24).
NOTICE
Risk of damage to equipment and malfunctions as a result of incorrect installation.
Ì Safety switches and actuators must not be used as an end stop.
Ì Observe ENISO14119:2013, sections 5.2 and 5.3, for information about mounting the safety
switch and the actuator.
Ì Protect the switch head against damage, as well as penetrating foreign objects such as swarf,
sand and blasting shot, etc. The switch should be installed with the actuating head down for this
purpose.
Ì Observe the min. door radii (see gure below).
Ì Ensure that the actuator contacts the ramp in the designated area (see gure below). Marks on the
ramp specify the prescribed approach zone.
74,5 ± 4 mm
Anfahrbereich/
Approach Zone
min R=300
min R=1000
min R800
Figure 2: Door radii and approach zone
