27
2113689-04-07/19 (Translation of the original operating instructions)
Operating Instructions
Transponder-Coded Safety Switch CET.-AS-…
EN
13.3. Technical data for actuator CET-A-B…
Parameter Value Unit
min. typ. max.
Housing material Stainless steel
Stroke, max. 15 mm
Weight
0.25
kg
Ambient temperature - 20 - + 55 °C
Degree of protection acc. to
ENIEC60529
IP67
Mechanical life 1 x 10
6
operating cycles
Locking force, max. 6,500 N
Installation orientation Active face opposite switch head
Power supply
Inductive via switch

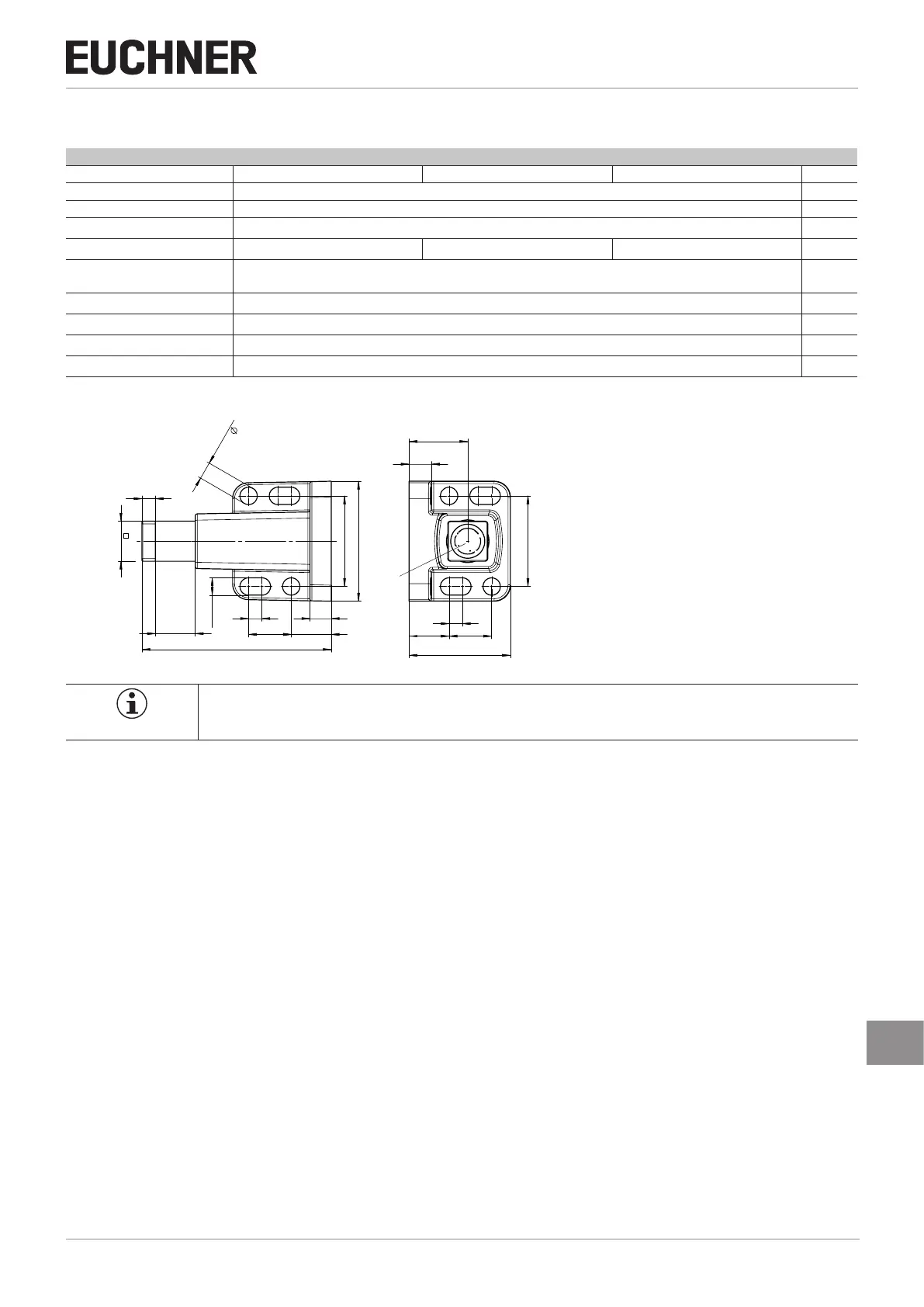

13.3.1. Dimension drawing for actuator CET-A-BWK-50X
5
34
15 16
5
38
8,5
22
34
1516
5
71
45
15
6,5
8
6,5
15
Active
face
Tip!
Safety screws are included with the actuator.
