EUCHNER CET-AS Series User Manual

Operating Instructions
Transponder-Coded Safety Switch CET.-AS-…
10
(Translation of the original operating instructions) 2113689-04-07/19

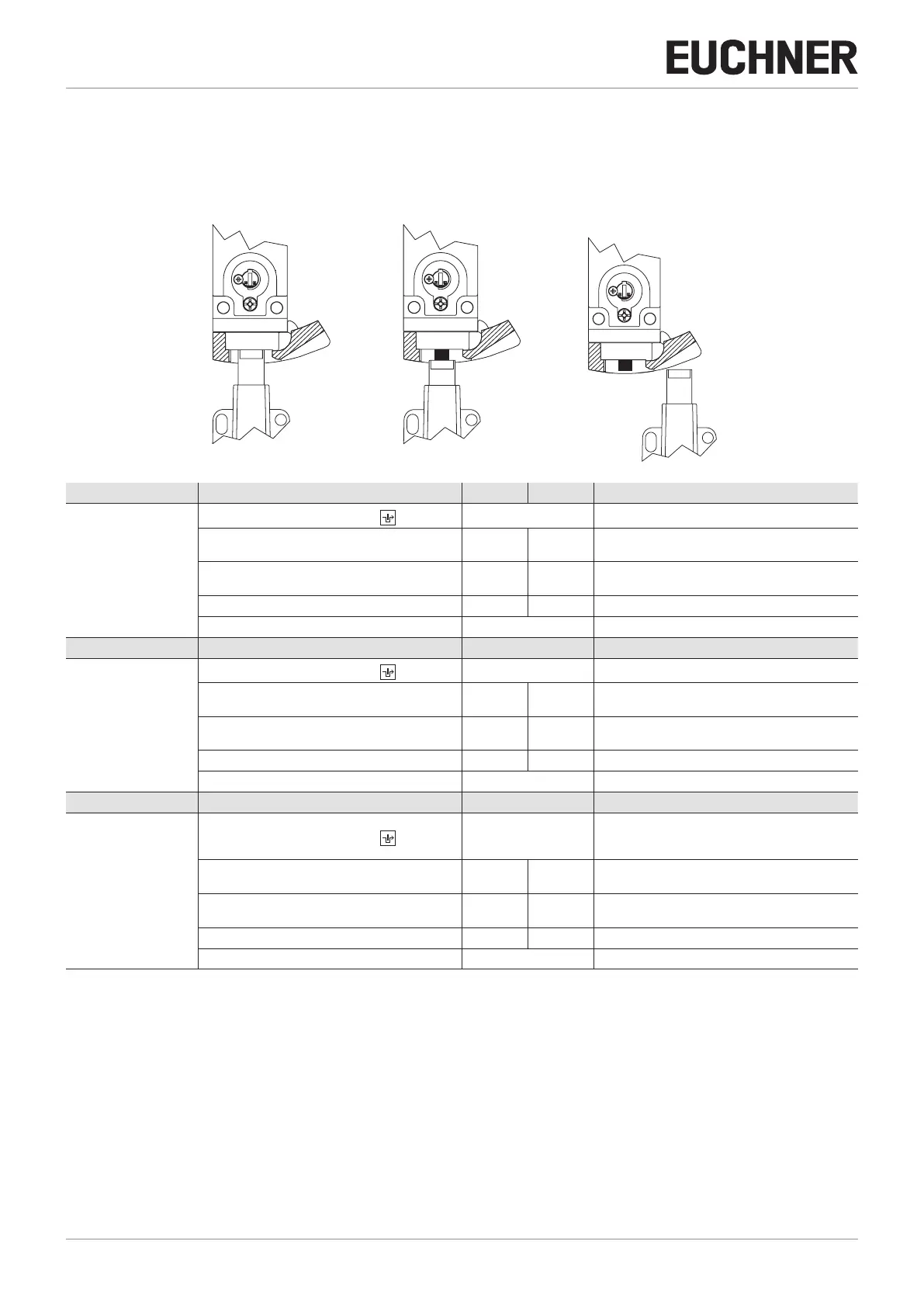

6.3. Switching states
The detailed switching states for your switch can be found in the system status table. All safety outputs, monitoring outputs
and display LEDs are described there.
Guard closed and locked Guard closed and not locked Guard open
Programming State D0, D1 D2, D3 Monitor diagnostics
Dual-channel
conditionally depen-
dent
Guard closed and locked
Code sequence Green
Guard closed and not locked
Half-se-
quence
00 Yellow ashing
Invalid state
(guard open, guard locking active)
00
Half-se-
quence
Red ashing
(monitoring of the invalid state)
Guard open 00 00 Red
Address 0 or communication disrupted
– Gray
Dual-channel
independent
Guard closed and locked
Code sequence Green
Guard closed and not locked
Half-se-
quence
00 Red
Invalid state
(guard open, guard locking active)
00
Half-se-
quence
Red
Guard open 00 00 Red
Address 0 or communication disrupted – Gray
Dual-channel
dependent
Synchronization time
innite ∞
Guard closed and locked
Code sequence
Green if guard was previously open
or yellow ashing after startup if only the guard locking
was open.
Guard closed and not locked
Half-se-
quence
00
Yellow ashing if guard was previously closed.
Red if guard was previously open.
Invalid state
(guard open, guard locking active)
00
Half-se-
quence
Yellow ashing if guard was previously closed.
Red if guard was previously open.
Guard open 00 00 Red
Address 0 or communication disrupted – Gray
