Eumig MARK-S SUPER 8 - Frame Adjustment; Elevation Adjustment

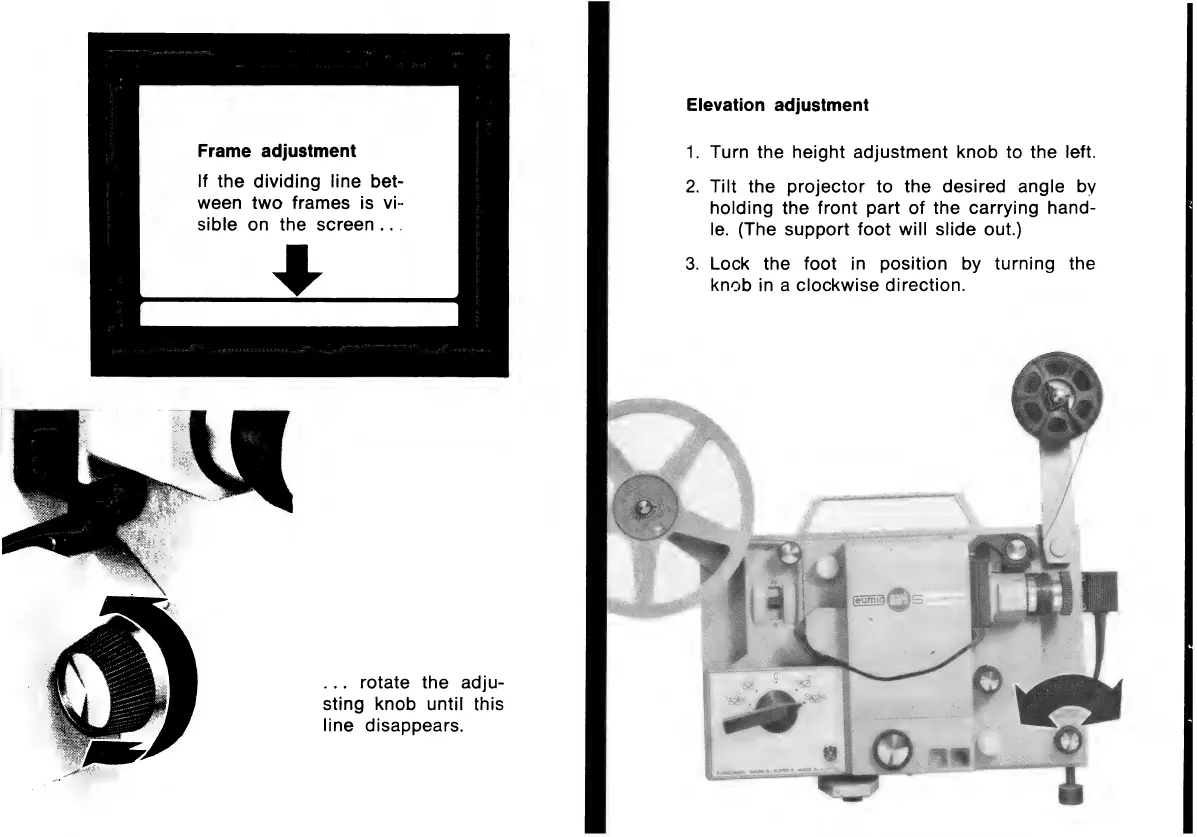

Frame adjustment
If the dividing line bet-
ween two frames is vi-
sible on the screen...
rotate the adju-
sting knob until this
line disappears.
Elevation adjustment
1. Turn the height adjustment knob to the left.
2. Tilt the projector to the desired angle by
holding the front part of the carrying hand-
le. (The support foot will slide out.)
3. Lock the foot in position by turning the
knob in a clockwise direction.
