Eumig MARK-S SUPER 8 - Changing the Pilot Lamps; Inserting a New Fuse

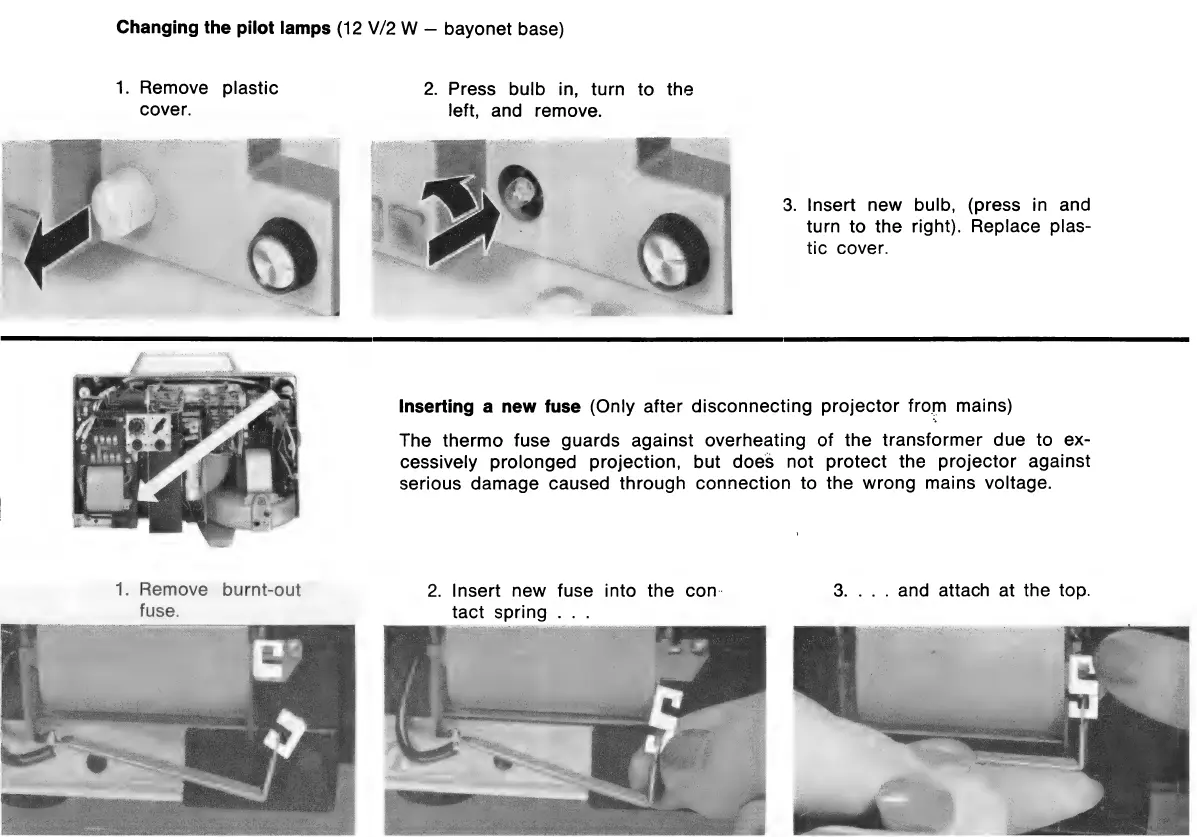

Changing the pilot lamps (12 V/2 W — bayonet base)
1. Remove plastic 2. Press bulb in, turn to the
cover. left, and remove.
3. Insert new bulb, (press in and
turn to the right). Replace plas-
tic cover.
Inserting a new fuse (Only after disconnecting projector from mains)
The thermo fuse guards against overheating of the transformer due to ex-
cessively prolonged projection, but does not protect the projector against
serious damage caused through connection to the wrong mains voltage.
1. Remove burnt-out 2. Insert new fuse into the con- 3. ... and attach at the top.
fuse. | tact spring...
