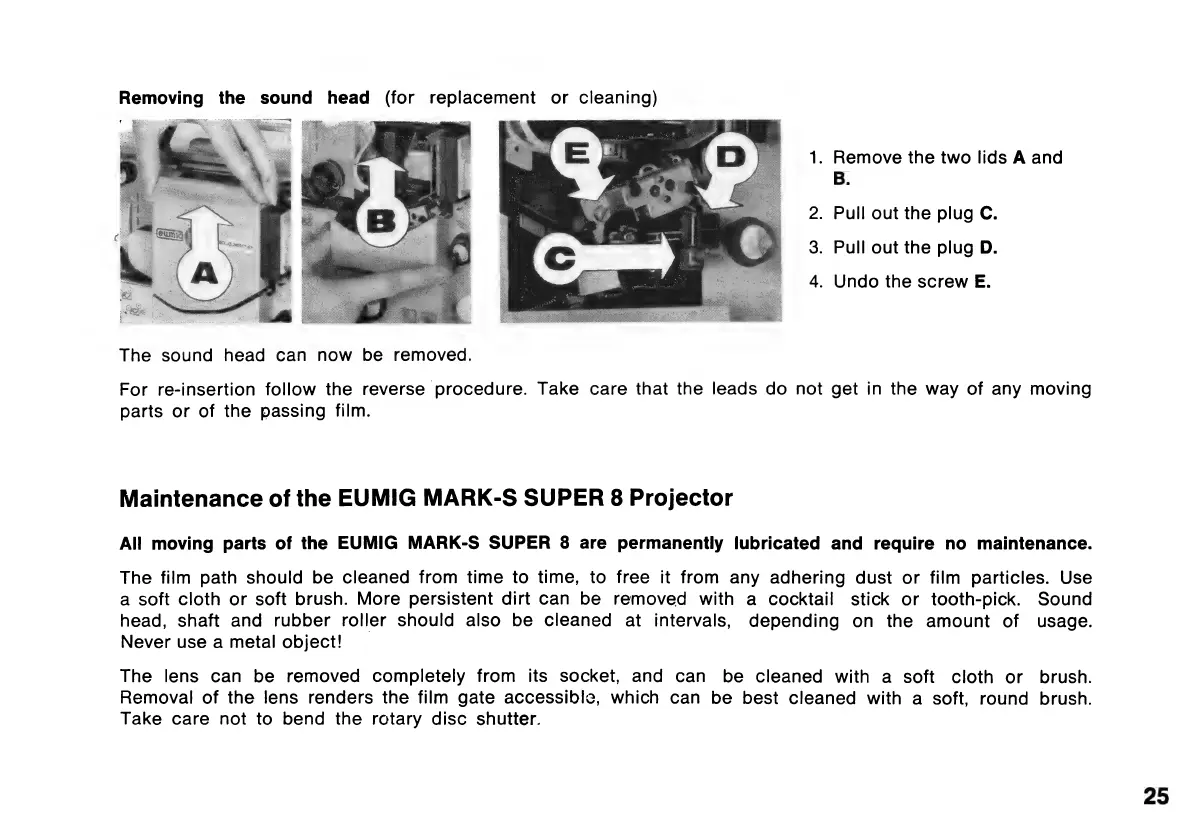

Removing the sound head (for replacement or cleaning)
1. Remove the two lids A and
B.
2. Pull out the plug C.
4
4
i
'
3. Pull out the plug D.
4. Undo the screw E.
The sound head can now be removed.
For re-insertion follow the reverse procedure. Take care that the leads do not get in the way of any moving
parts or of the passing film.
Maintenance of the EUMIG MARK-S SUPER 8 Projector
All moving parts of the EUMIG MARK-S SUPER & are permanently lubricated and require no maintenance.
The film path should be cleaned from time to time, to free it from any adhering dust or film particles. Use
a soft cloth or soft brush. More persistent dirt can be removed with a cocktail stick or tooth-pick. Sound
head, shaft and rubber roller should also be cleaned at intervals, depending on the amount of usage.
Never use a metal object!
The lens can be removed completely from its socket, and can be cleaned with a soft cloth or brush.
Removal of the lens renders the film gate accessible, which can be best cleaned with a soft, round brush.
Take care not to bend the rotary disc shutter.
