Plug for connection of radio, record player or a tape recorder
This special plug supplied
with your EUMIG MARK-
S SUPER 8 enables you to
connect a radio, record
player or a tape recorder
to your projector.

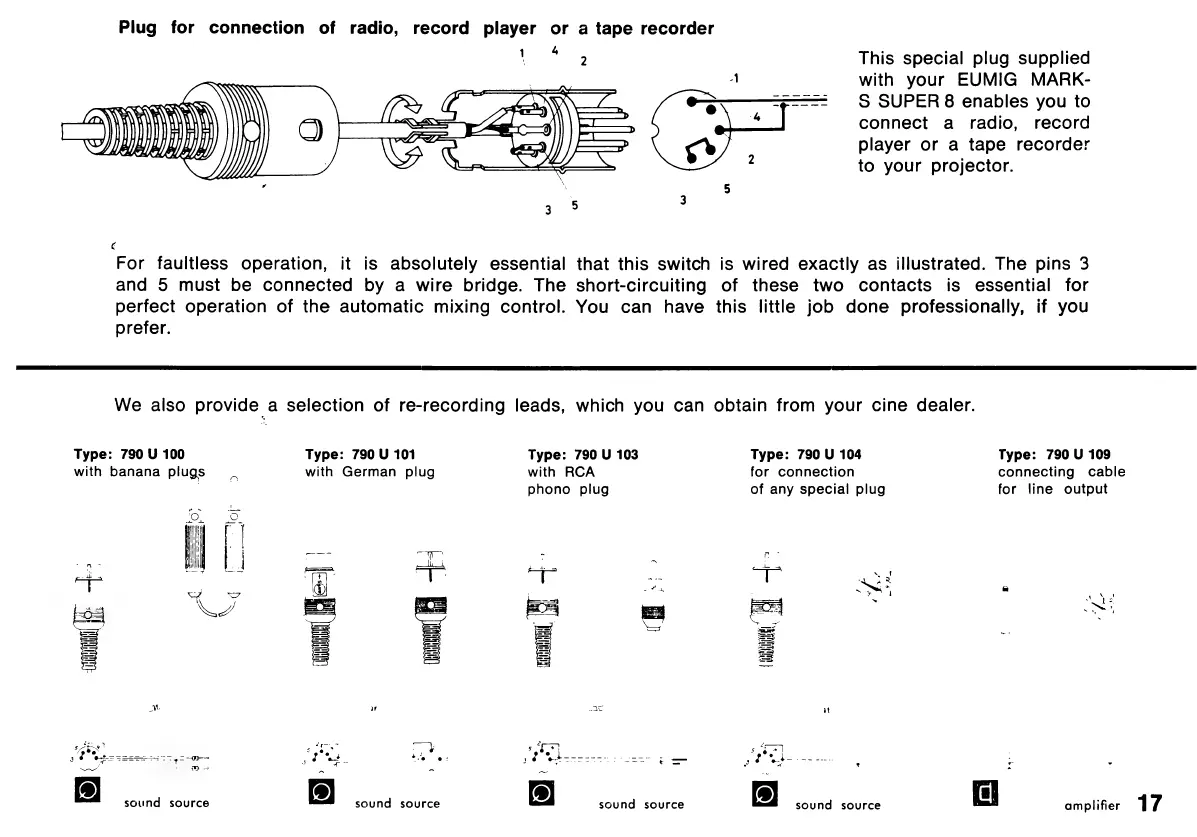

For faultless operation, it is absolutely essential that this switch is wired exactly as illustrated. The pins 3
and 5 must be connected by a wire bridge. The short-circuiting of these two contacts is essential for
perfect operation of the automatic mixing control. You can have this little job done professionally, if you
prefer.
We also provide a selection of re-recording leads, which you can obtain from your cine dealer.
Type: 790 U 100 Type: 790 U 101 Type: 790 U 103 Type: 790 U 104 Type: 790 U 109
with banana plugs es with German plug with RCA for connection connecting cable
7 : phono plug of any special plug for line output
‘
sf tae aes i
yw : Se 4
a: ees
Mt ar at it
Qe: emer : é é
he, 5 ote) ee 7,6,” 548,”
3° f= TSSTS SS Taya 3 Pd ee Pe Ot 3 eee Ser Se ee 2 é ob wos ee
NA” : p-=
‘eo:
e ~~
& ~
i) sound source 1) sound source (a) sound source Oo sound source
amplifier 17
