PC253d Digital Pilot Computer

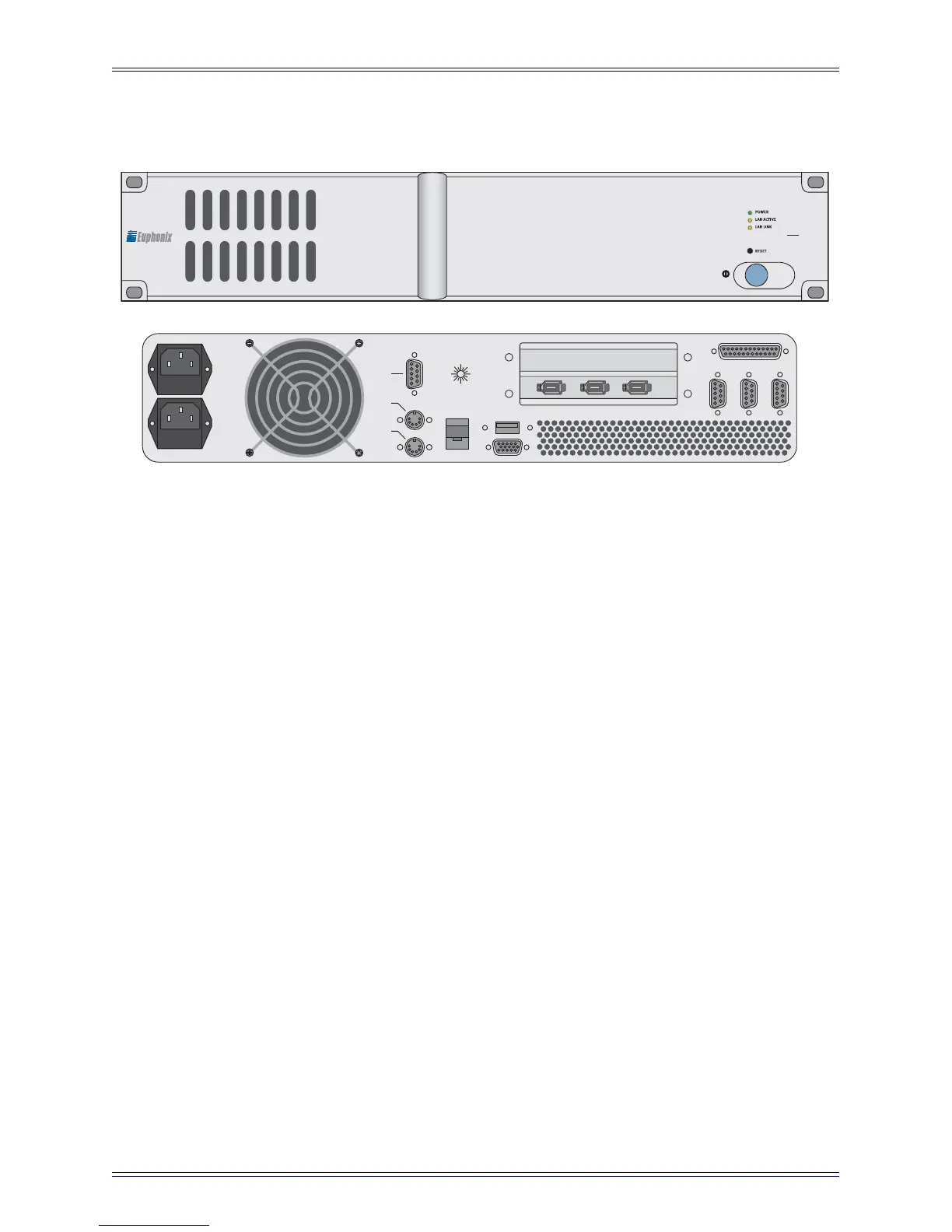

Figure 3-6 PC253d Front and Rear Panels
IEEE 1394 Ports (3 IEEE connectors): Connect any port to IEEE 1394 connector on the
FC631 card in the respective DF64 via firewire (provided).
Network Port (RJ45): Connect to EuCon Network Switch via RJ45 (provided).
Power Connectors (IEC): Accepts two standard IEC power cords (provided). Two autorang-
ing switching supplies accept voltages between 100–240 VAC, 50–60 Hz.
DIGITAL PILOT COMPUTER
P
C
2
53d
PILOT ID
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
MOUSE
POWER
STATUS
KEYBOARD
PS/2
LAN
USB
PARALLEL
SERIAL 1 SERIAL 2
VGA
