Word Out (BNC): Outputs a Word clock signal synchronized to the Sample Rate Source.
In the presence of an external Word clock input, this connector provides a regenerated ver-
sion of that input signal. Without an external sample rate source, this connector outputs the
internally generated clock signal.
MADI Out (BNC): Outputs the digital audio signal.
• 1–24: Main digital inputs
• 25–26: Aux analog inputs
• 27–28: Aux digital inputs
NOTE: 28 channels are always transmitted; dual channels are not used.

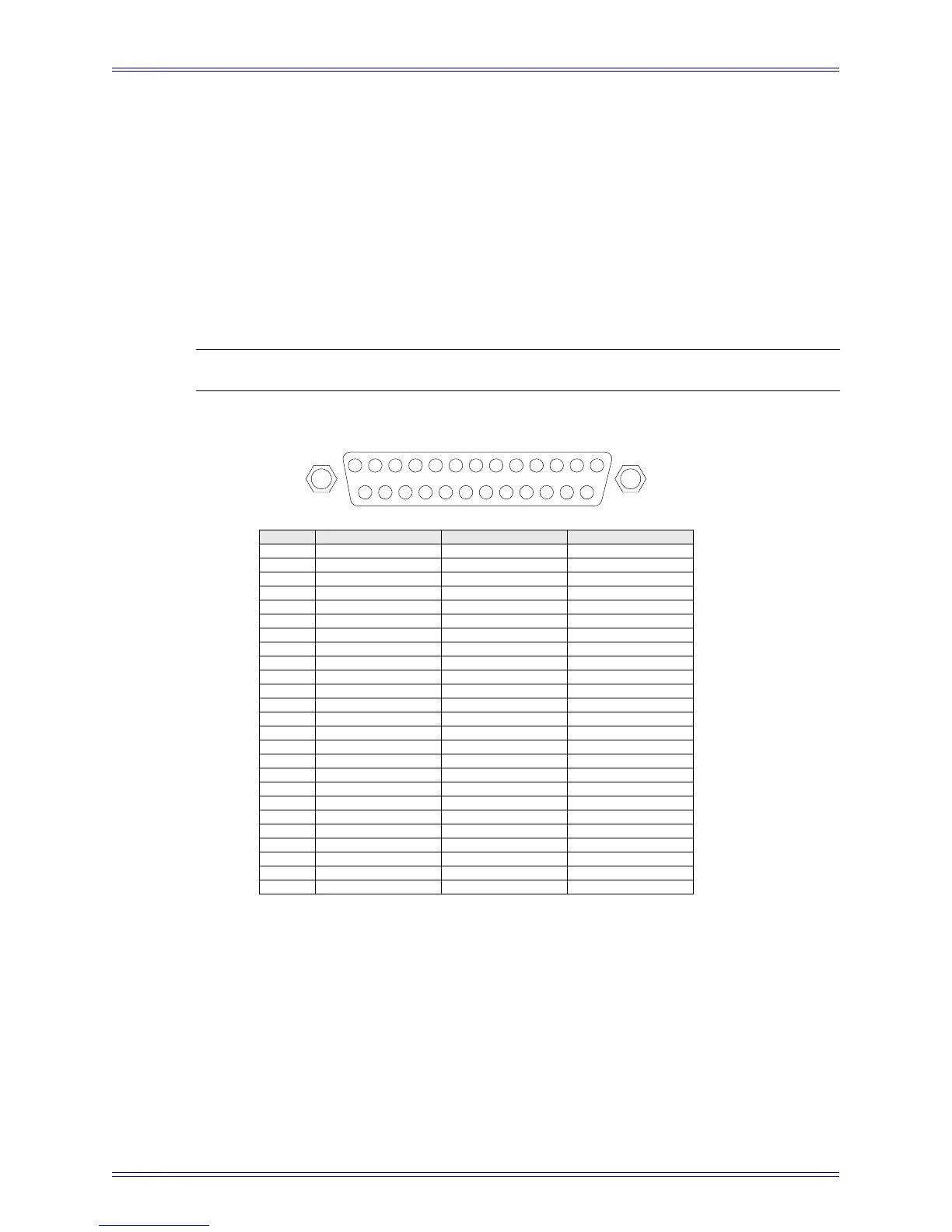

Figure 3-24 DM714 Parallel AES/EBU Digital Inputs: Female DB-25
13
25
1
14
Pin #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Connector 1
N/C
N/C
N/C
N/C
N/C
N/C
Digital In 7/8+
GND
Digital In 5/6-
Digital In 3/4+
GND
Digital In 1/2-
N/C
N/C
N/C
N/C
N/C
N/C
N/C
Digital In 7/8-
Digital In 5/6+
GND
Digital In 3/4-
Digital In 1/2+
GND
Connector 2
N/C
N/C
N/C
N/C
N/C
N/C
Digital In 15/16+
GND
Digital In 13/14-
Digital In 11/12+
GND
Digital In 9/10-
N/C
N/C
N/C
N/C
N/C
N/C
N/C
Digital In 15/16-
Digital In 13/14+
GND
Digital In 11/12-
Digital In 9/10+
GND
Connector 3
N/C
N/C
N/C
N/C
N/C
N/C
Digital In 23/24+
GND
Digital In 21/22-
Digital In 19/20+
GND
Digital In 17/18-
N/C
N/C
N/C
N/C
N/C
N/C
N/C
Digital In 23/24-
Digital In 21/22+
GND
Digital In 19/20-
Digital In 17/18+
GND
