Rear Panel

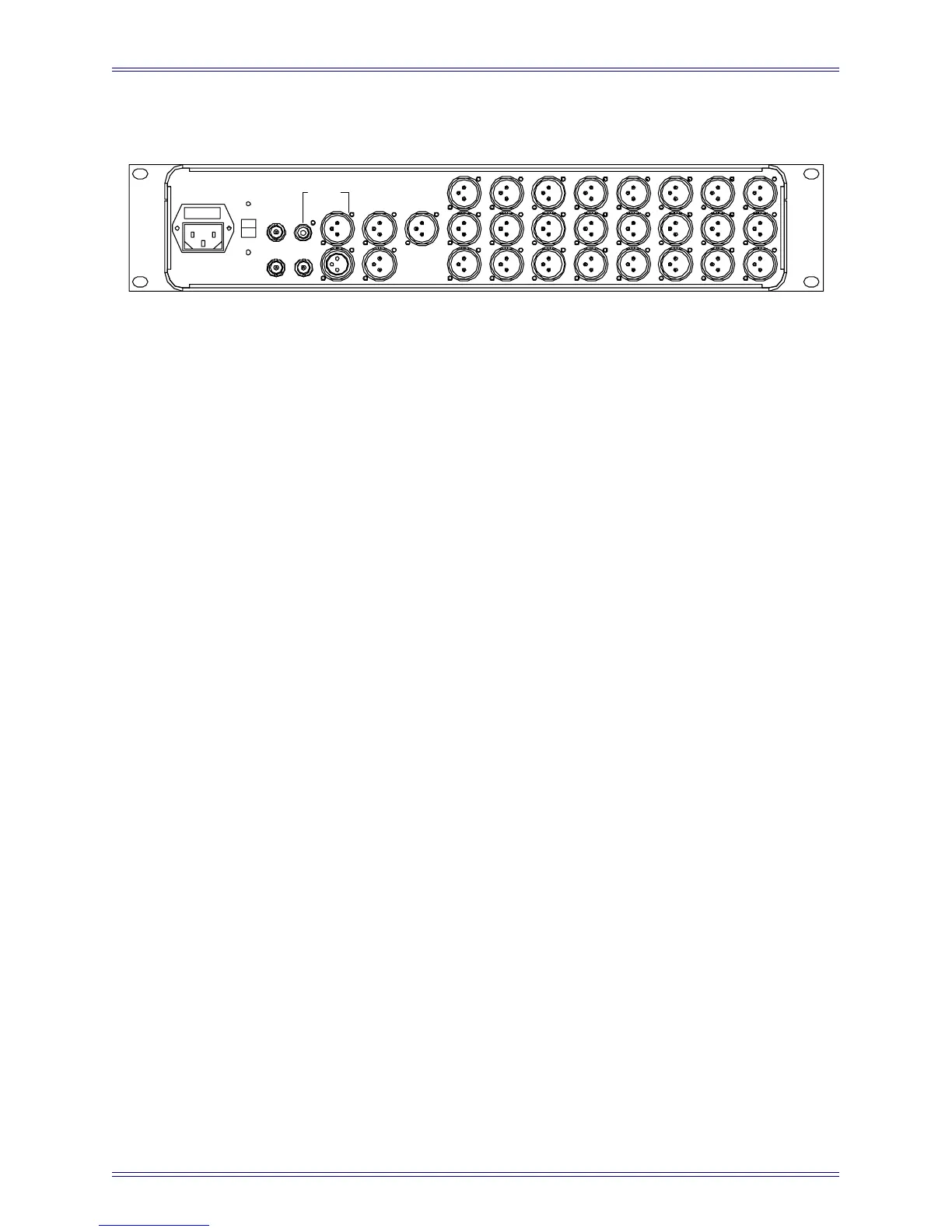

Figure 3-21 MA703 Rear Panel
Input Voltage Selector: This red switch allows the unit to operate in either 100/110/
115 VAC or 220/230/240 VAC environments. A fuse must also be changed for 220/
230/240 VAC operation. Units are shipped set and fused for 100/110/115 VAC.
Power Connector (IEC) and Fuse Tray: The IEC power connector accepts standard
IEC power cords. The fuse tray contains both the active and spare fuses.
Analog Outputs (male XLR): 24 balanced analog outputs on XLR connectors. Output
level is set from the front panel.
Auxiliary Analog Outputs (male XLR): Two balanced analog outputs on XLR con-
nectors. Output level can is set from the front panel.
AES/EBU Digital Outputs (male XLR): Stereo AES/EBU digital outputs on one XLR
connector. Functions in parallel with the auxiliary S/PDIF output and the two inputs
should not be used simultaneously.
S/PDIF Digital Outputs (RCA): Stereo S/PDIF digital output on one RCA connector.
Functions in parallel with the auxiliary AES/EBU output and the two inputs should not
be used simultaneously.
AES Sync In (female XLR): Master clock input for the converter when using AES as
the Sample Rate Source.
AES Sync Thru (male XLR): Outputs the same signal connected to AES Sync In.
Word In (BNC): Master clock input for the converter when using Word Clock as
Sample Rate Source.
Word Out (BNC): Outputs a Word Clock signal synchronized to the Sample Rate
Source. In the presence of an external Word clock input, this connector provides a
regenerated version of the input signal. Without an external sample rate source, this
connector outputs an internally generated clock signal.
