PROTEUS user manual
Issue C
46

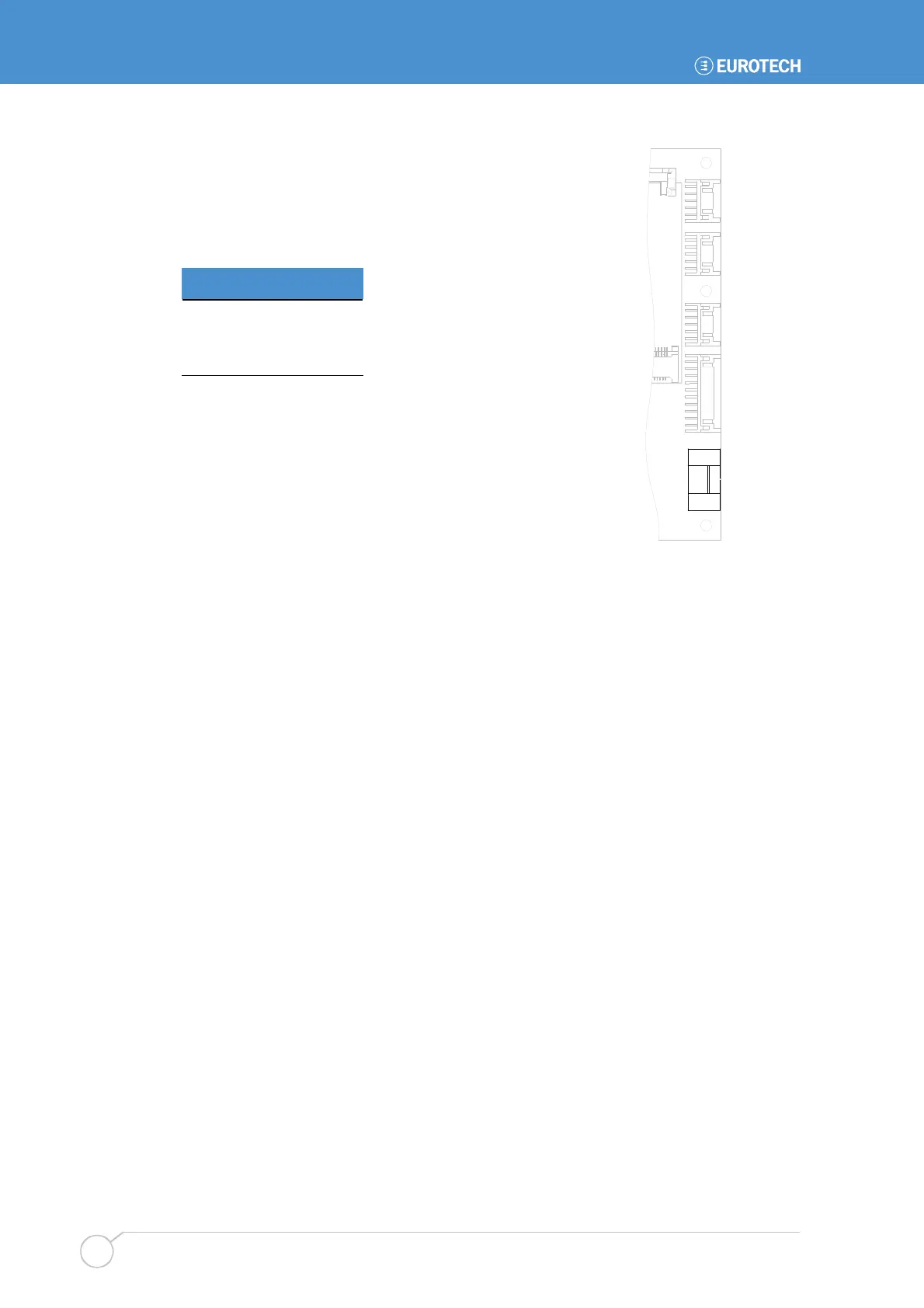

J5 - Power connector (stand alone only)
J5 is main power input connector (8.5V ~ 24V).
Connector: IMO PC 20.155MHF/2.
Mating socket: IMO PC 20.1550MF/2.
Pin Signal name
1 VIN+ (Power in)
2 VIN- (Power in)
1
J5
