Eurotech PROTEUS - Page 47

Connectors and LEDs
Issue C
47

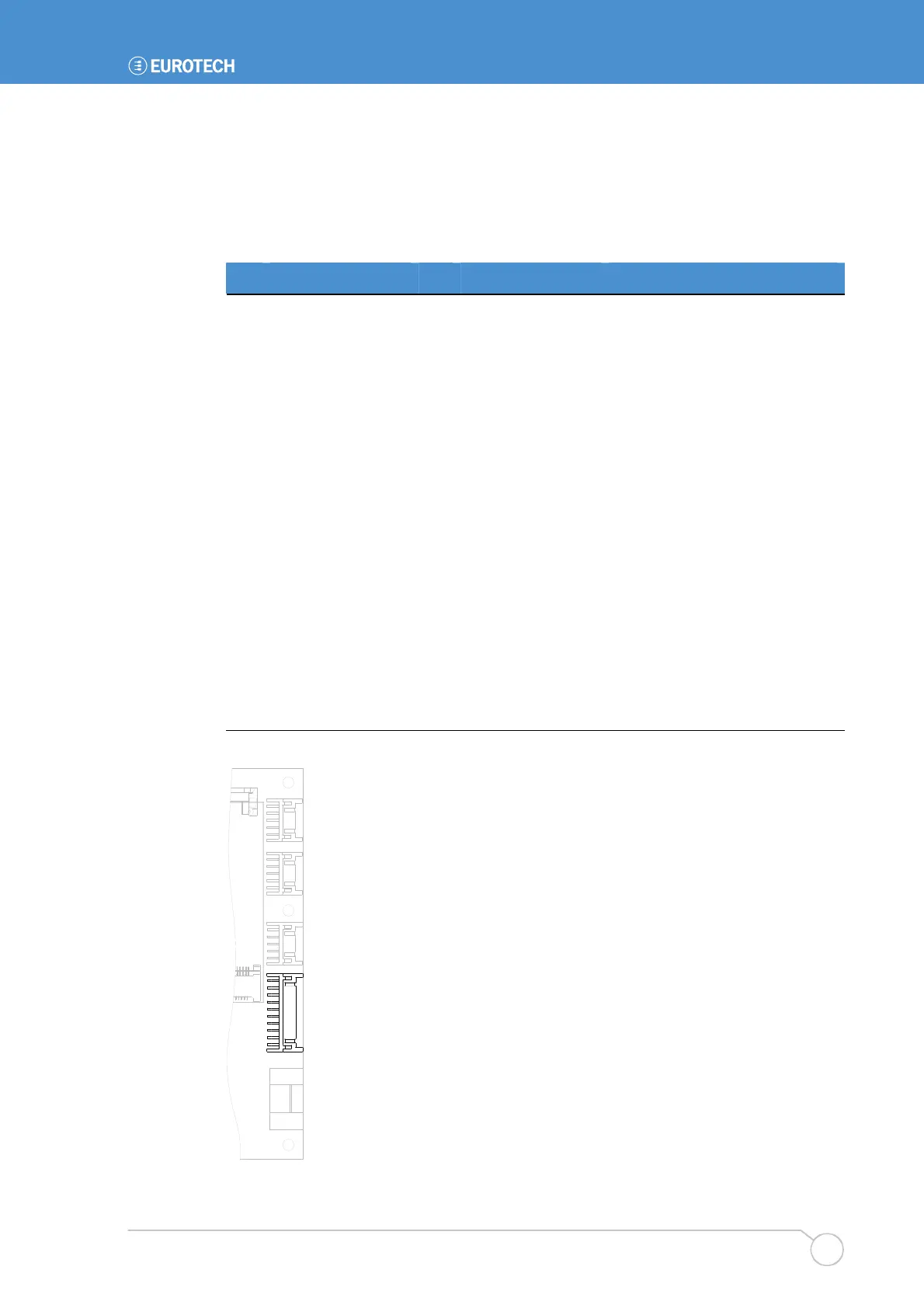

J6 - System connector (stand alone only)
Connector: HIROSE DF11-20DP-2DS(24).
Housing: 20Way HIROSE Housing (DF11-20DS-2C) or equivalent.
Crimps: Crimps for Housing (DF11-2428SCA) or equivalent.
Pin Signal name Pin Signal name Description
1 HDD LED ANODE 2
HDD LED
CATODE
HDD activity LED (220 Ω series
resistor on board).
3
MINI0 LED
ANODE
4
MINI0 LED
CATODE
PCIe Minicard slot 0 activity
LED (220 Ω series resistor on
board).
5
MINI1 LED
ANODE
6
MINI1 LED
CATODE
PCIe Minicard slot 1 activity
LED (220 Ω series resistor on
board).
7 +3.3V (S0) 8 +3.3V (S3) Power output.
9 I/O USER PIN 10
220 Ω series
resistor to +3.3V
(S3)
General purpose input/output
user pin connected to I2C GPIO
expander.
11
POWER LED
ANODE
12
POWER LED
CATODE
Power LED (220 Ω series
resistor on board).
13 SMB DATA (in/out) 14 SMB CLK (out) SMBUS.
15 GPIO9 (in/out) 16 GPIO10 (in/out)
General purpose GPIO pins
from SUPER IO.
17 GND 18
ON/OFF#
BUTTON (in)
Power button.
19 GND 20 RESET# (in) Reset button.
1
J6
