PROTEUS user manual
Issue C
58

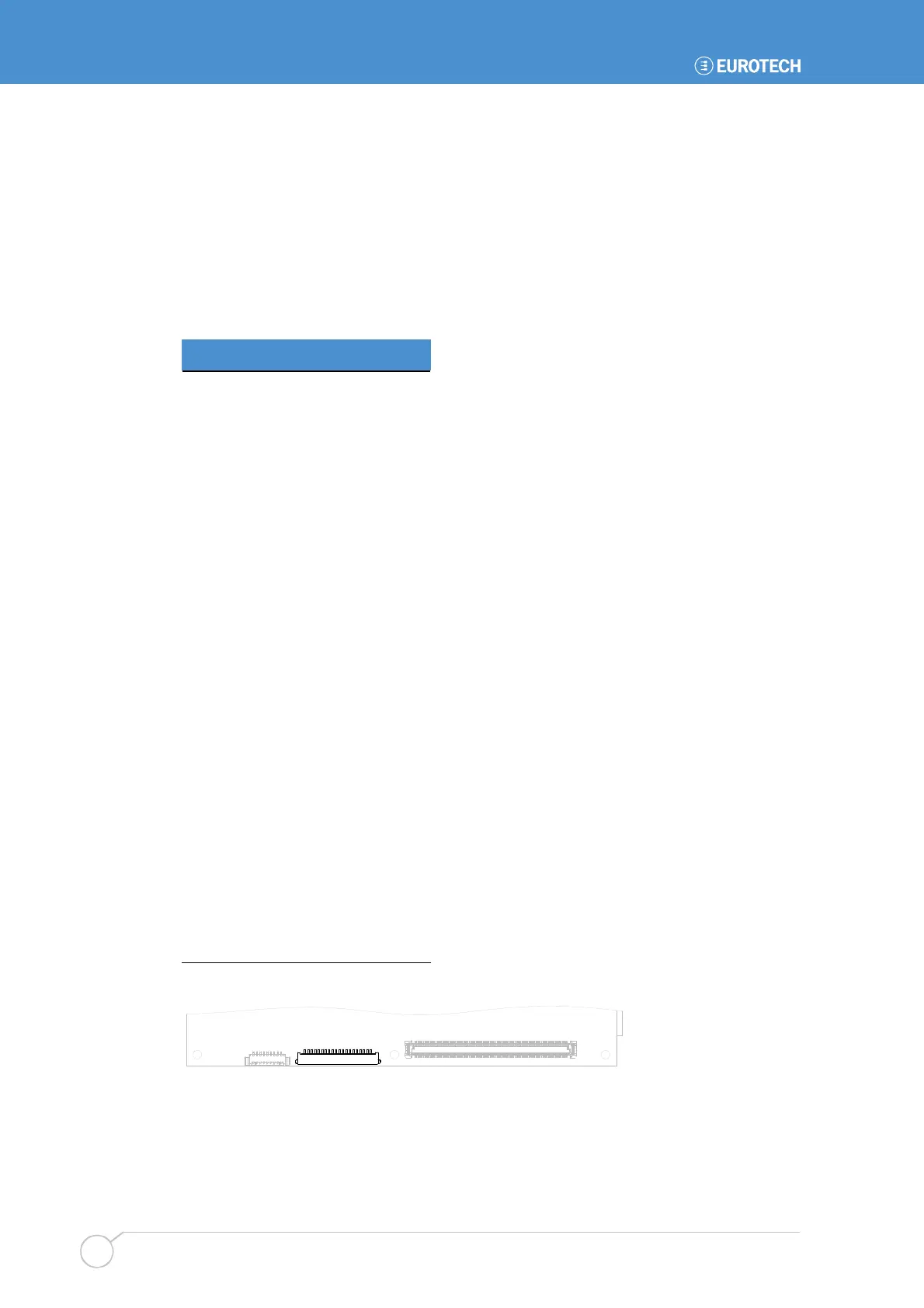

J21 - LVDS B connector (not supported by PROTEUS V1I1)
J21 is connected to CH7308 SDVO LVDS Transmitter.
Connector: JAE FI-SE209-HFE, 20-way.
Mating socket: 2 off 20Way 1.25mm pitch single row housing.
Manufacturer: Hirose, part number DF14-20S-1.25C.
40 off gold 26-28 AWG crimps.
Manufacturer: Hirose, part number DF14-2628SCFA.
Pin Signal name
1 +3.3V
2 +3.3V
3 GND
4 GND
5 D0-
6 D0+
7 GND
8 D1-
9 D1+
10 GND
11 D2-
12 D2+
13 GND
14 CK-
15 CK+
16 GND
17 FRC (pulled high)
18 DPS (default pulled low)
19 D3-
20 D3+
1
J21
