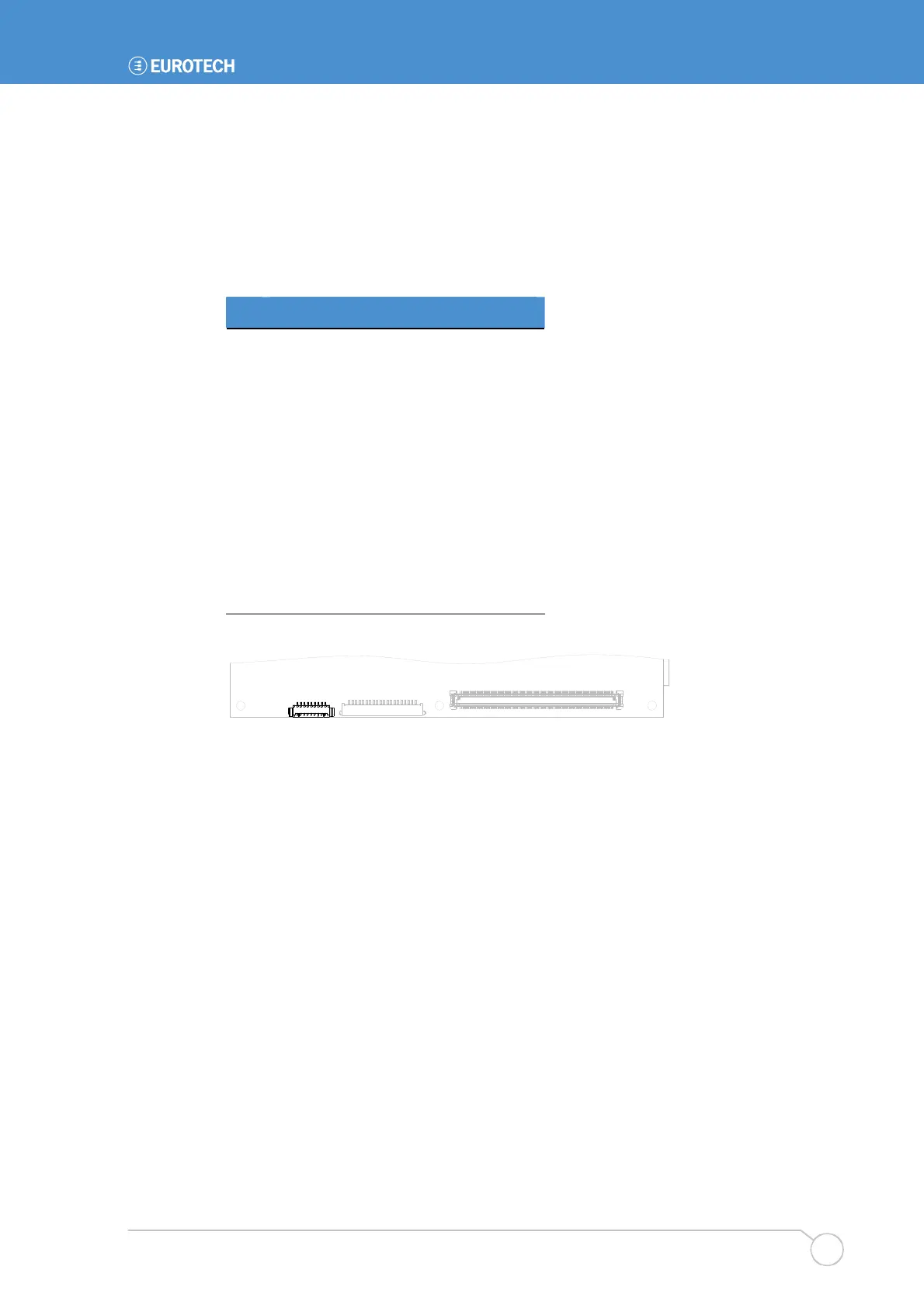

J20 - Backlight
J20 is backlight connector for LVDS_A (J4).
Connector: MOLEX 53261-0971.
Housing: 3Way MOLEX Housing (51021-0900) or equivalent.
Crimps
: Crimps for MOLEX Housing (50058-8000) or equivalent.
Pin Signal name
1 SMB DATA
2 SMB CLK
3 GND
4
BRTH – pulled to +3.3V / pulled down
not fitted
5 BRTI – pulled to +3.3V
6 +5V
7 +5V
8 GND
9 GND
1
J20
