Eurotech PROTEUS - Page 56

PROTEUS user manual
Issue C
56

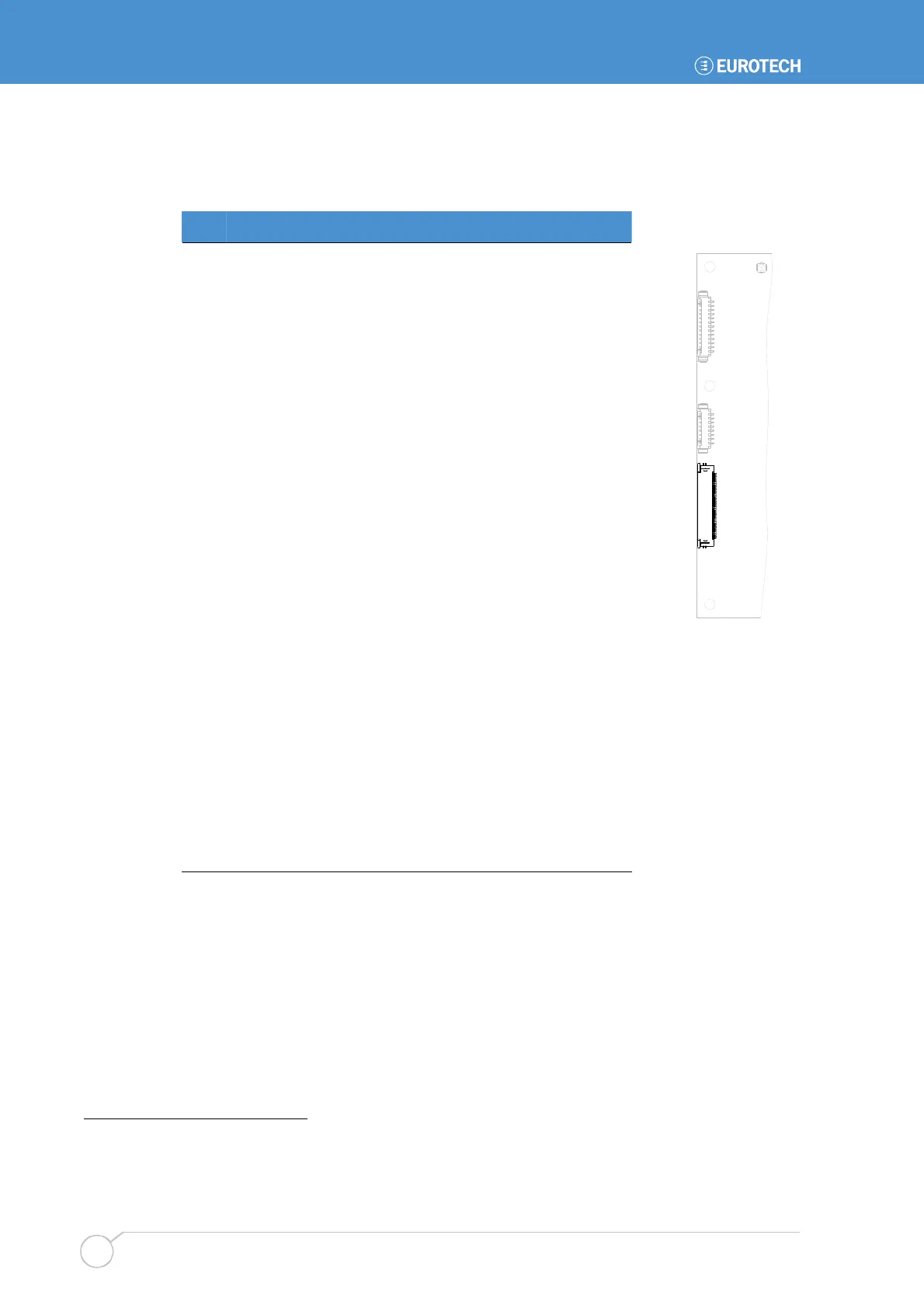

J19 - Misc ZIF connector (stand alone only)
Connector: MOLEX 54104-4096.
Pin Signal name Pin Signal name
1 3.3V (S3) 2 3.3V (S3)
3 3.3V (S3) 4 SDIO2_DATA0
5 SDIO2_DATA1 6 SDIO2_DATA2
7 SDIO2_DATA3 8 SDIO2_DATA4
9 SDIO2_DATA5 10 SDIO2_DATA6
11 SDIO2_DATA7 12 GND
13 SDIO2_PWR 14 SDIO2_CMD
15 SDIO2_CLK 16 SDIO2_CD
17 SDIO2_WP (pulled up) 18
SLOT2_LED (220Ω
series resistor)
19 GND 20 SMB_CLK (out)
21 SMB_DATA (in) 22 GND
23 NC (COM4_RXD (in)
1
) 24 COM4_TXD (out)
25 GND 26 NC (COM3_RXD (in)
2
)
27 COM3_TXD (out) 28 NC (COM3_RTS (in)
2
)
29 COM3_CTS (out) 30 GND
31
EXT_PRPH_RST#
(out)
32 WAKE_PRPH_3V3# (in)
33 GND 34 D- (USB SCH Port 3)
3
35 D+ (USB SCH Port 3)
3
36 GND
37 Reserved 38 +5V (S3)
39 +5V (S3) 40 +5V (S3)
1
If GPS is not fitted this is a build option.
2
If Bluetooth and ZigBee are not fitted this is a build option.
3
Standalone only.
1
J19
