EVBox Audi Wallbox - Page 51

50

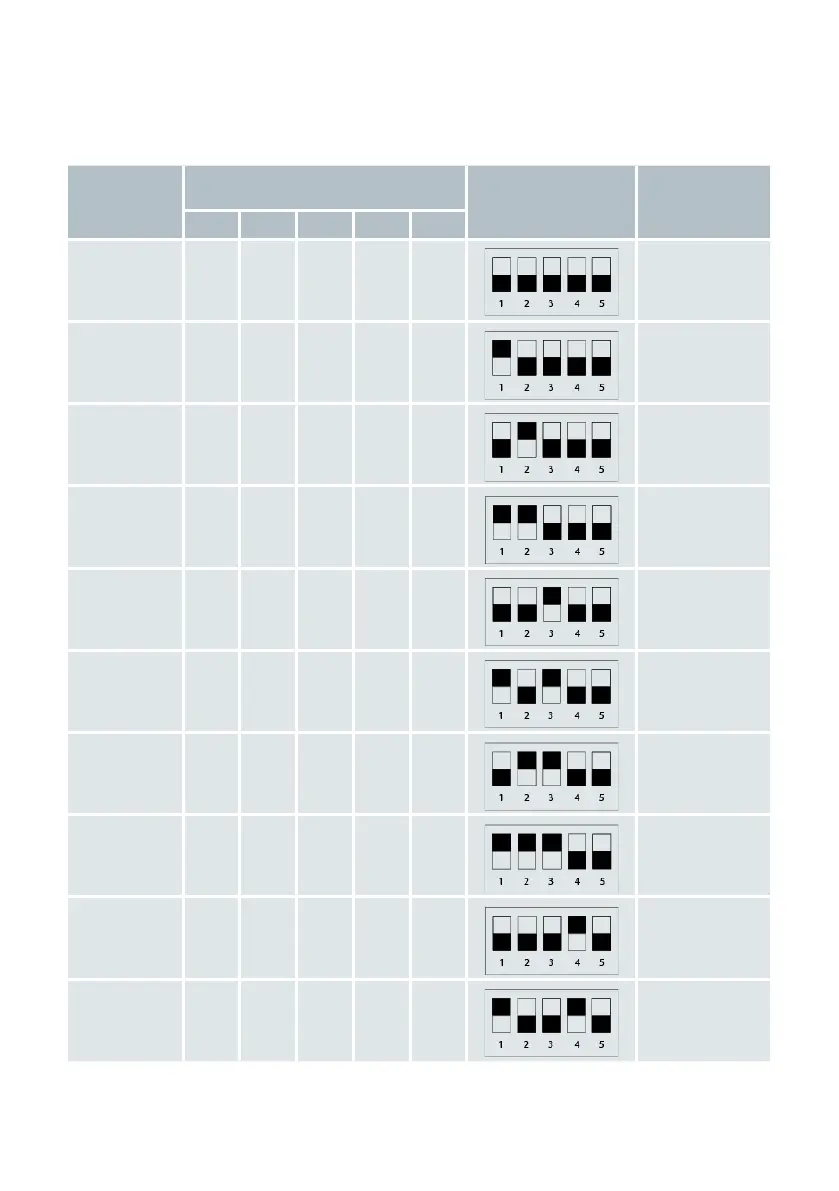

Group A: CT coil properties
Group A switches
CT coil
model
DIP-switch number and position
Illustration
Turns
ratio
1 2 3 4 5
Default /
No CT coil
attached
0 0 0 0 N/A N/A
To be set by
user.*
1 0 0 0 N/A
To be set by
user.*
Nidec
C-CT-10
0 1 0 0 N/A 3000:1
Nidec
C-CT-16
1 1 0 0 N/A 3000:1
Nidec
C-CT-24
0 0 1 0 N/A 3000:1
LEM
TT 50-SD
1 0 1 0 N/A 3000:1
LEM
TT 100-SD
0 1 1 0 N/A 3000:1
VAC
E4623-X002
1 1 1 0 N/A 2500:1
VAC
E4624-X002
0 0 0 1 N/A 2500:1
VAC
E4626-X002
1 0 0 1 N/A 2500:1
* For Audi Wallbox plus and Audi Wallbox pro only.
