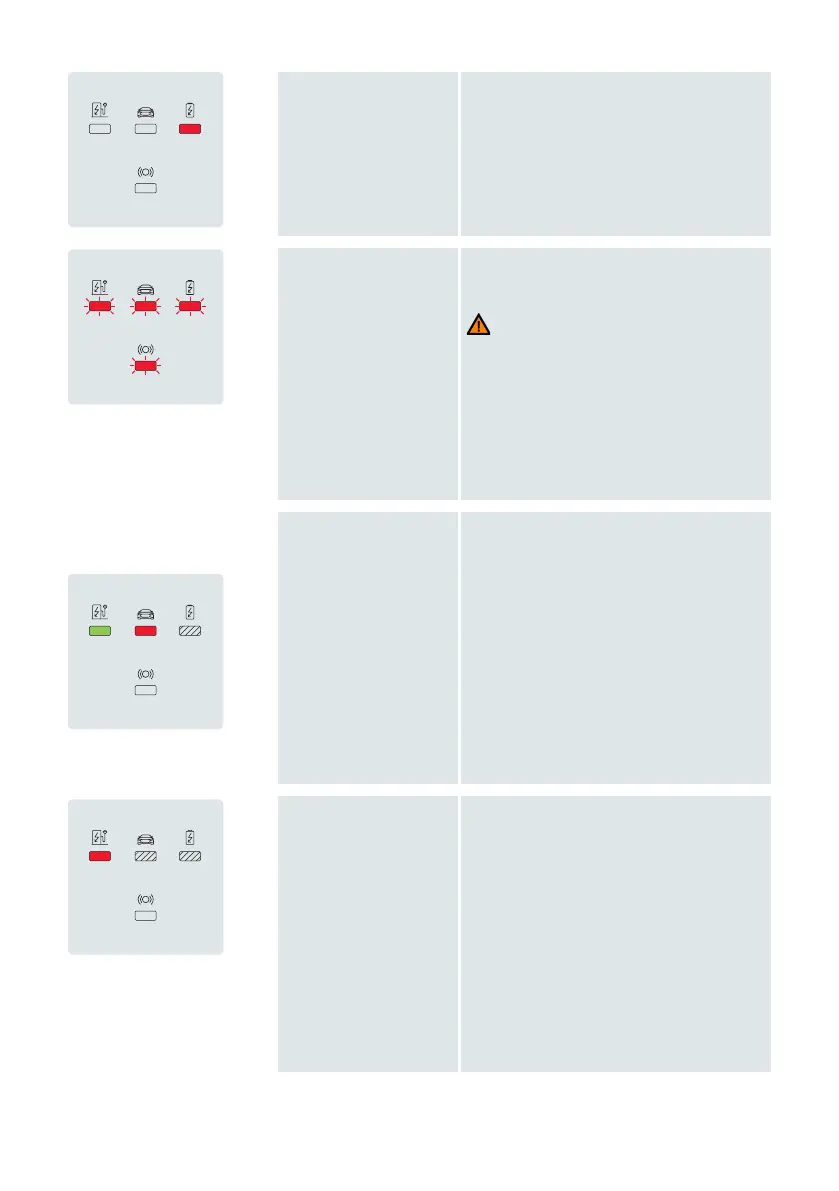

Invalid CT coil
conguration / invalid
custom coil
Charging not possible
› Have the settings of the DIP-switches
checked to match the congurations
shown in this manual.
Relay state
mismatch
Charging not possible
The output relays are welded together.
Warning: Risk of electric shock
If the wallbox is powered on, there
may be live voltage in the charging
connector.
› Please do not touch the wallbox and
connected cables.
› Disconnect the supply to the wallbox
immediately.
Invalid vehicle
communication
Charging not possible
Pilot wire might be shorted to ground.
› If the vehicle is connected to the
wallbox, disconnect it. Wait until the
wallbox is idle before reconnecting
your vehicle.
› If the error still occurs when the
vehicle is not connected, inspect the
charging cable and the connector for
dirt or damage.
Critical temperature
Charging not possible
This error occurs when the temperature
inside the wallbox is too high.
› If the wallbox does not recover from
the critical temperature state, dis-
connect it from the car. Wait for at
least one hour for the wallbox to cool
down.
› If this error occurs more often, make
sure that the wallbox is protected
from heat sources (direct sunlight).
