15 For Professional Technical Support call 1-844-241-5521

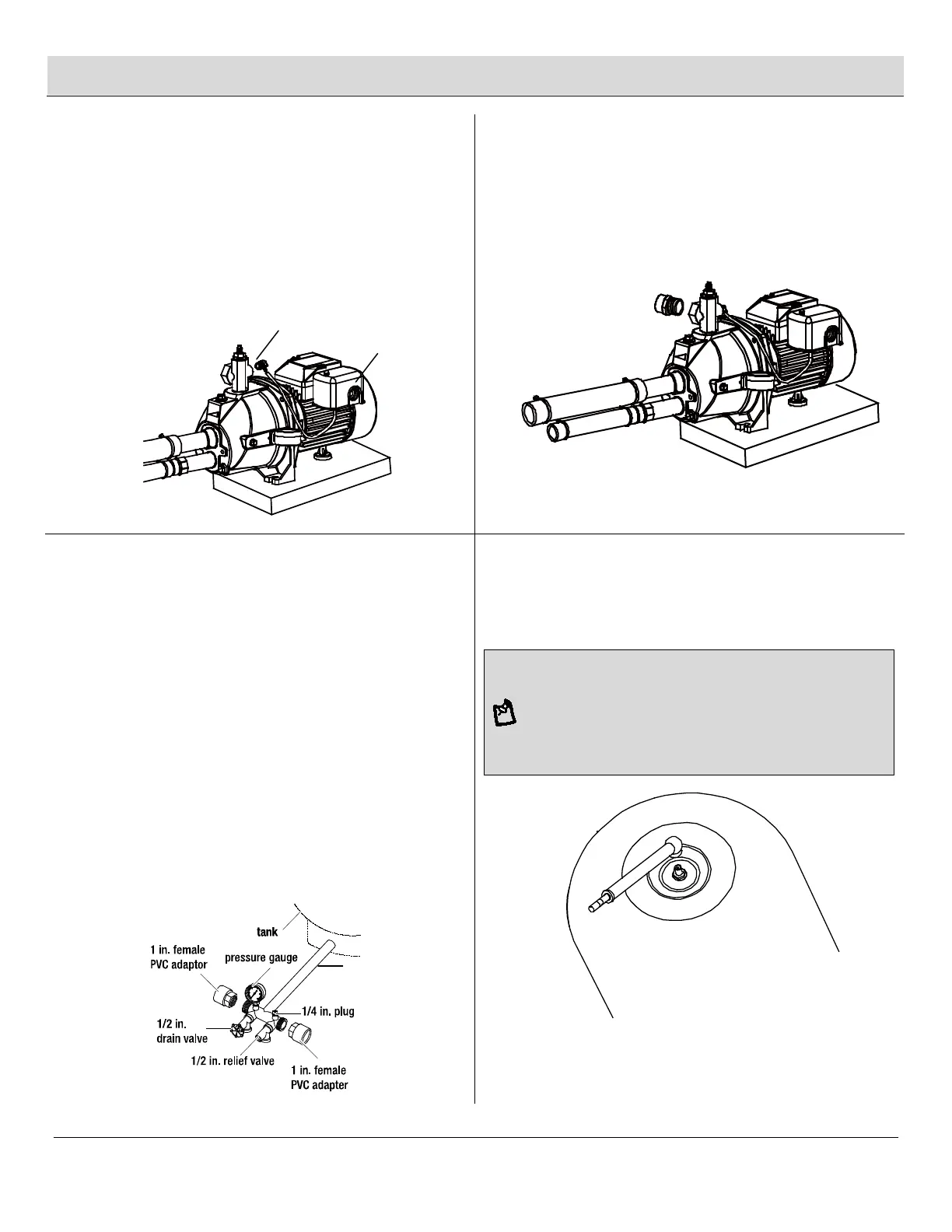

Deep Well Installation (continued)
14
Connecting the brass elbow to the
pressure regulator
15
Connecting the PVC adapter to the
pressure regulator
Thread the 1/4 in. disassembled elbow insert into the 1/4 in. hole
on the side of the pressure regulator.
Slide the pressure tubing (attached with the pump pressure
switch or included in regulator kit) over the 1/4 in. brass elbow
and the pressure switch connector.
Wrap thread tape around the threads of a 3/4 in. MNPT x 1 in. slip
PVC adapter (sold separately).
Thread the adapter into the pressure regulator.
16
Connecting a (M) 10 in. tank tee to
the pressure tank (tank tee size may
vary based on tank size)
17
Checking the pressure in the tank
Wrap all threads on tank tee with thread tape.
In order for the pump and the pressure tank (sold separately) to
operate properly, the pressure tank must be drained of all water
BEFORE INSTALLING TO THE PUMP.
Thread a (M) 10 in. tank tee (sold separately) or recommended
size based on pressure tank size.
On the top of the tank tee that faces the pump system, plug the
outlet with a (N) 1/4 in. plug (sold separately).
On the oposite end of the tank tee install a (O) pressure gauge
(sold separately) onto the outlet of the tank tee.
On each side inlet of the tank tee, thread a (C) 1 in. female PVC
adaptor.
On the front of the tank tee that has the 1/4 in. plug, thread a (D)
1/2 in. relief valve (sold separately).
On the front of the tank tee that has the pressure gauge, thread a
(G) 1/2 in. drain valve (sold separately).
Air pressure in the tank must be 2 psi lower than the "cut-in" of
the pressure switch.
NOTE: The pump has a 30/50 PSI pressure switch, which
means the "cut-in" is 30 PSI; therefore, the tank needs to be set
to 28 PSI. To check the pressure in the tank, use a tire pressure
gauge (not included). If the tank pre-charged less than 28 PSI,
re-charge air to the tank to 28 PSI with a tire pump or air
compressor. If the tank pre-charged over 28 PSI, bleed out some
air to 28 PSI.
1/4 in. Pressure
regulator hole
Pressure switch
(O)
(C)
(G)
(D)
(C)
(N)
(M) 10 in. tank tee
