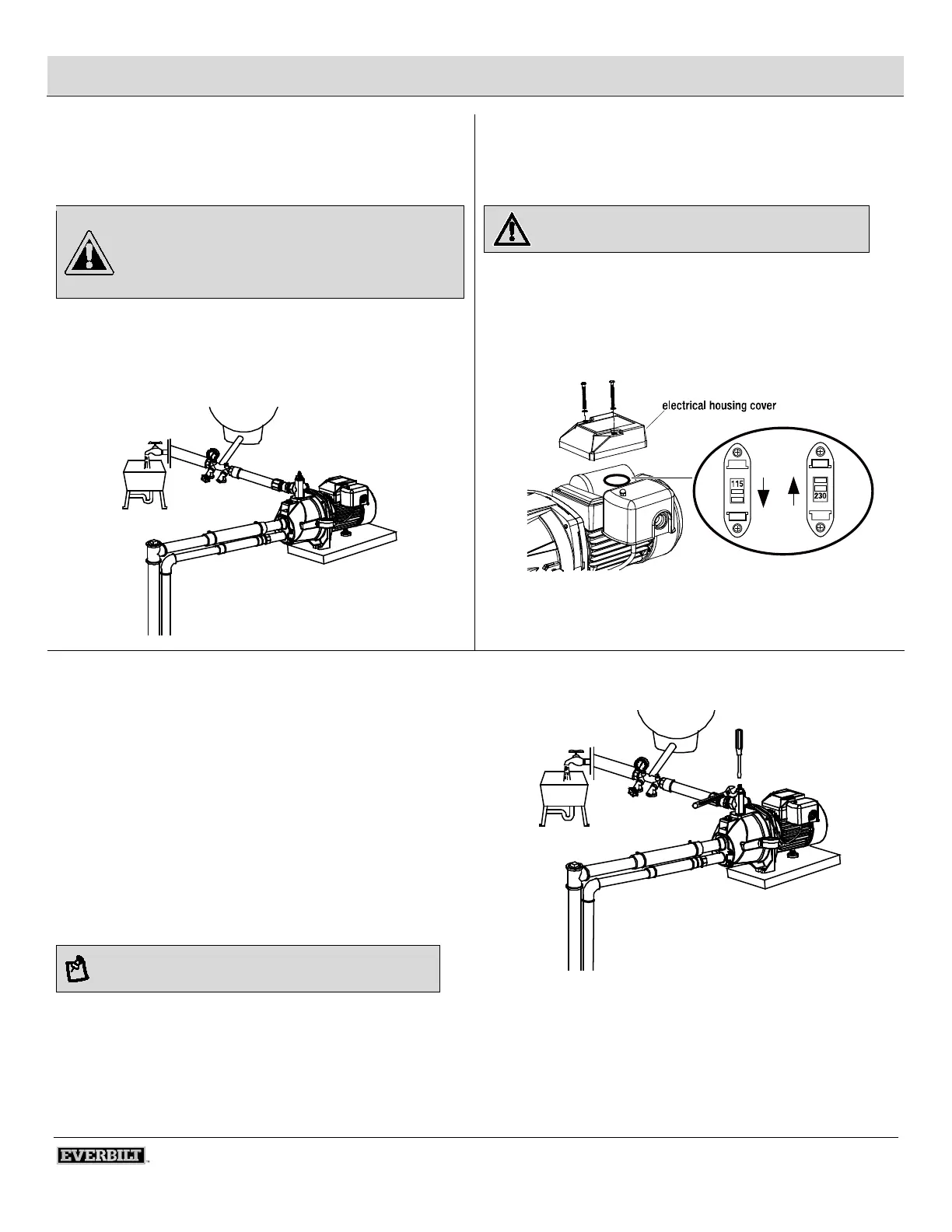

Deep Well Installation (continued)
18
Connecting the pump with the
water system
19
Voltage setting
CAUTION: Never install a shut-off valve between the
pump and the tank, as this can cause excessive friction
loss and can damage the pressure switch and/or pump. If
necessary, only install a fully open gate valve (sold
separately).
Using PVC purple primer and PVC cement, attach a section of 1
in. PVC pipe (sold separately) as needed to connect the 3/4 in.
MNPT x 1 in. slip PVC adapter in the pressure regulator.
Attach another section of 1 in. PVC pipe (sold separately) as
needed to connect the other 1 in. female PVC adapter on the tank
tee to the water system from the house.
WARNING: All electrical work should be performed by
a licensed electrician.
This pump is pre-wired at 230 volts.
If the power source is 115 volts, remove the electrical housing
cover.
Flip the switch to 115 volts.
Replace the cover.
20
Setting pressure regulator
Turn the regulator adjustment screw down tight.
Turn on pump.
If the pump is properly primed, a high pressure will immediately
show on the pressure gauge.
With the pump operating at high pressure, slowly unscrew the
adjusting screw until maximum water flow is obtained without
pressure dropping to zero.
If pressure falls completely, retighten the screw and readjust it.
If no pressure shows, stop the pump, remove the pressure
regulator from pump, add more water, and try again.
After the adjusted bolt is set up, lock the screw nut on the bolt.
The pump is ready for use.
NOTE: The pressure regulator screw is very tight. A big
screw driver needed.
Proceed to the Pressure Switch Assembly Instructions section on page 10 of this manual.
