Pre-Installation (continued)
SPECIFICATIONS
Power supply 115V, 60 HZ., 15 Amp Circuit
Liquid temp. range 32°F to 120°F (0°- 50°C)
Pump Inlet 1-1/2 in. NPT
Pump discharge
1-1/4 in. NPT
Installation
(SEE FIGURES 1 AND 2)
WARNING: Electric Shock Hazard. Plug pump into a properly grounded, GFCI protected outlet. Do NOT plug in the pump until after it is
completely installed. Do not remove or modify the grounding pins on the plugs.
Fittings Supplied: Qty.
A Sink Drain Screen 1
B 1-1/4” NPT x 1-1/4” Slip Check Valve 1
C 1-1/4” NPT Ball Valve 1
Purchase Separately: Qty.
1 1-1/2” NPT x 1-1/2” Slip Female Adapter 1
2 1-1/2” Schedule 40 PVC Pipe, to fit 1
3 1-1/2” NPT x 1-1/2” Slip Male Adapter 1
4 1-1/4” NPT Galvanized Nipple (to fit) 1
5 1-1/4” NPT Galvanized Union 1
6 1-1/4” NPT x 1-1/4” Male Adapter 1
7 1-1/4” Schedule 40 PVC Pipe, to fit 1
8 1-1/4” Socket to Socket 90° Elbow 1
9 1-1/4” Schedule 40 PVC Pipe to Drain As Needed
PVC Pipe Cement As Needed
PTFE pipe thread sealant tape As Needed
1-1/2” PVC Solvent Union – optional As Needed
NOTE: Be careful to avoid cross-threading; Use only a
plastic-compatible pipe-threading compound or teflon tape
when connecting threaded fittings to plastic adapters.

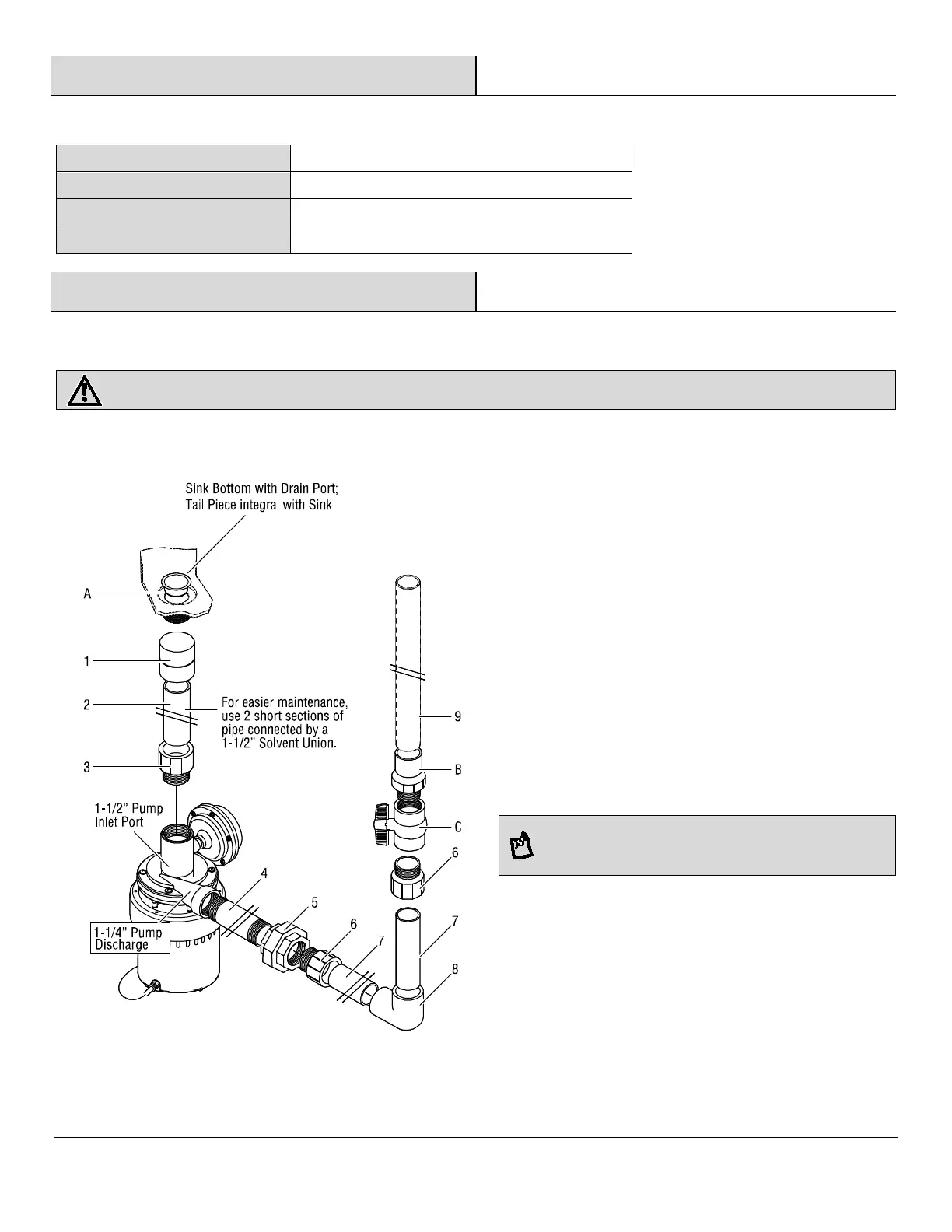

Figure 1: Typical method of mounting the pump
To Next Page
